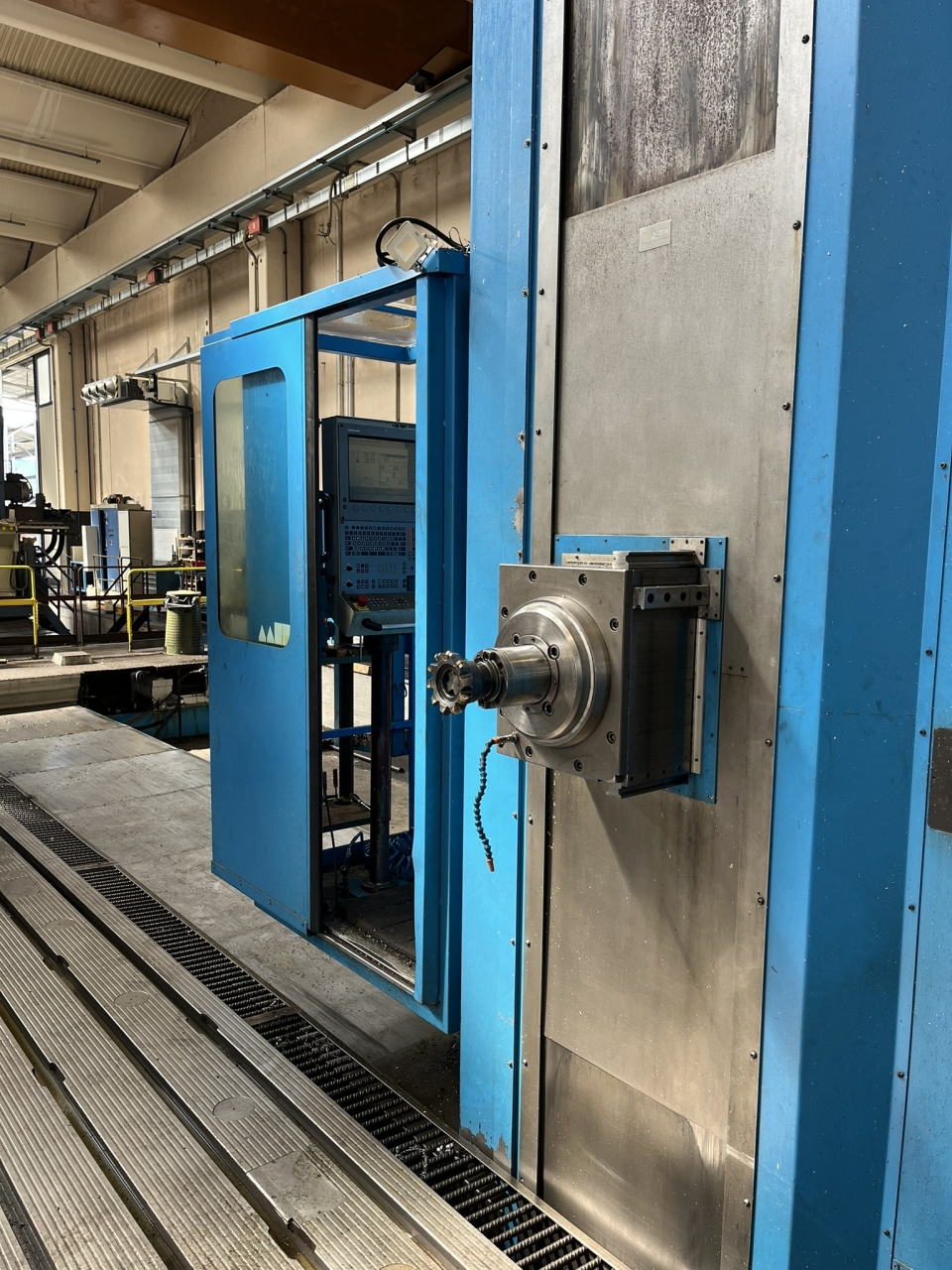

Alesatrice Emsil EMTECH HBM 103
Technical specifications

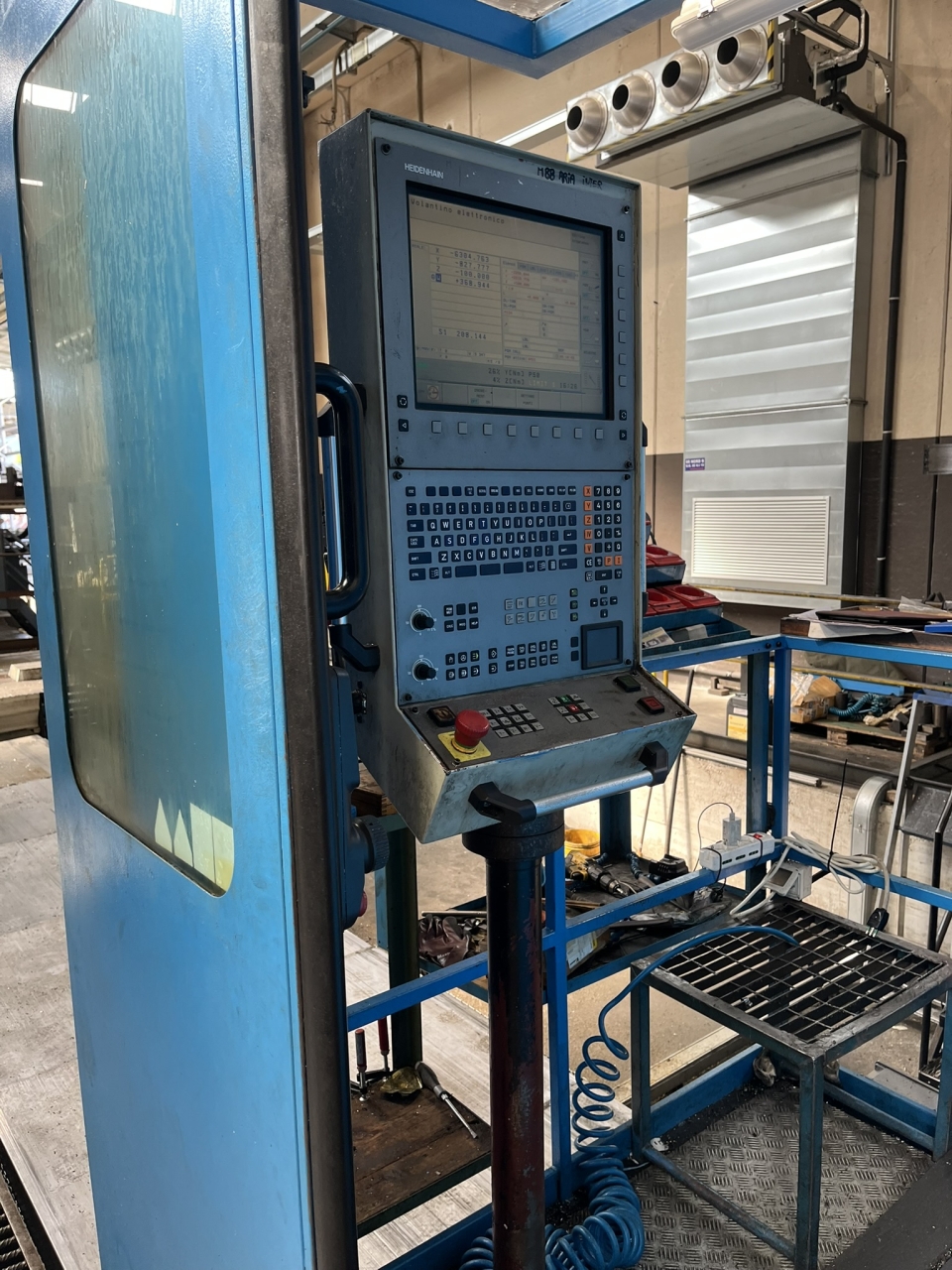

| CNC Model | Heidenhain |
| CNC version | TNC 510 |
| Spindle Taper toolholders | iso 50 |
| Power spindle | 24 Kw |
| RPM | 2500 |

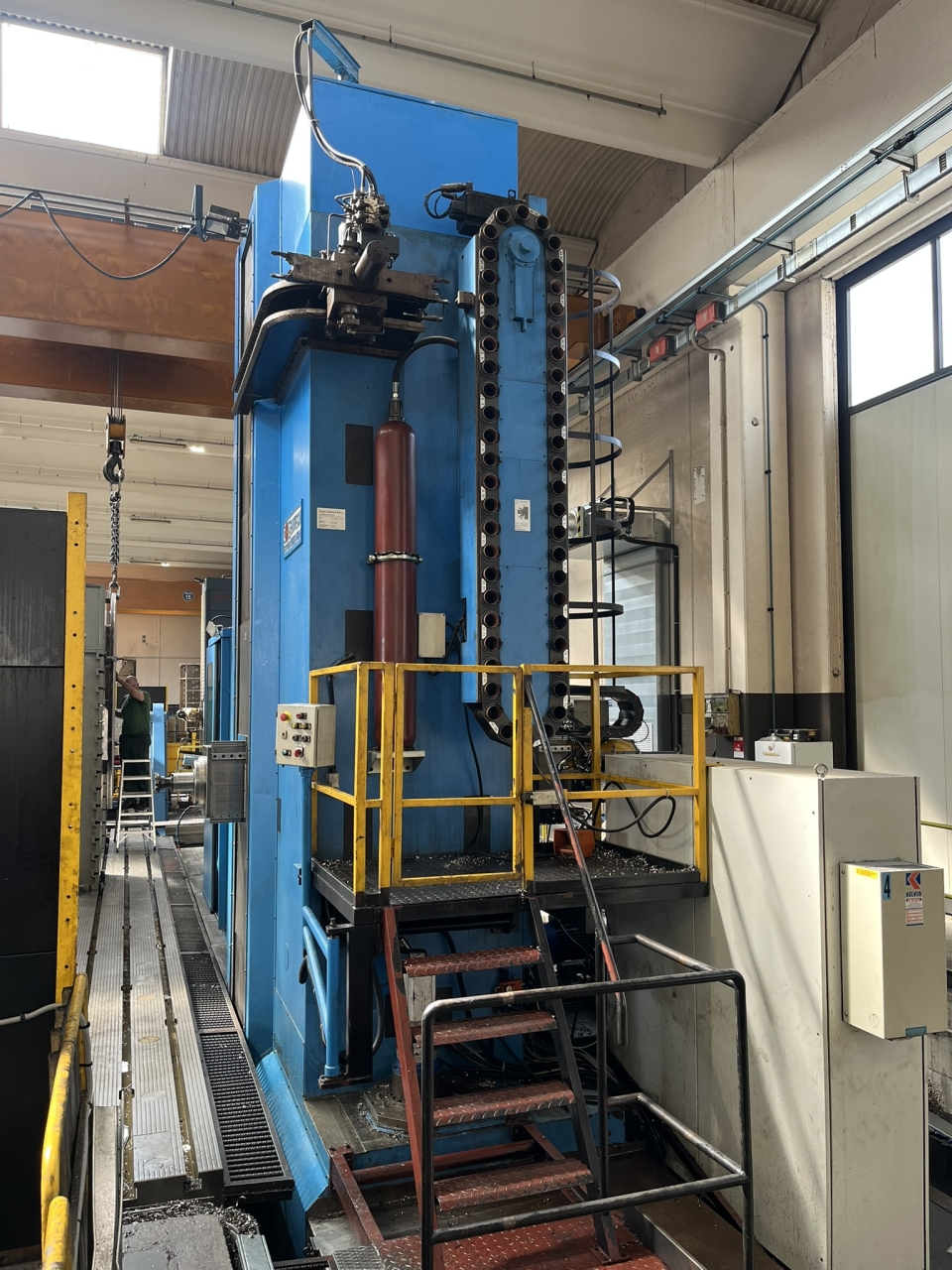

| Number of tools | 50 |
| X-axis travel | 10800 mm |
| Y-axis travel | 3300 mm |
| Z-axis travel | 1150 mm |
| Rapid linear axis feeds X Y Z | 15 m/min |
| Guide | Slideways |
| diameter boring spindle | 130 mm |
| Live Boring Spindle Travel | 700 mm |
| Head type | Manual bi-rotary head |
| Roto-tilting table | yes |
| Type Rotating table | continuous |
| Linear stroke table | 1000 mm |
| table dimension | 1800 x 2000 mm |
| Maximum load allowed | 10000 Kg |
Basic information
| Code | 5E65EE |
| Level of machine tool |
standard
|
| Brand | Emsil |
| Model | EMTECH HBM 103 |
| Construction year | 2008 |
Complete data sheet
dimensione RAM 400 x 460Machine equipment
REVISIONE LINEA MANDRINO NEL 2024
REVISIONE TAVOLA ASSE B 2025
REVISIONE ANTIGIOCO ASSE X 2024
