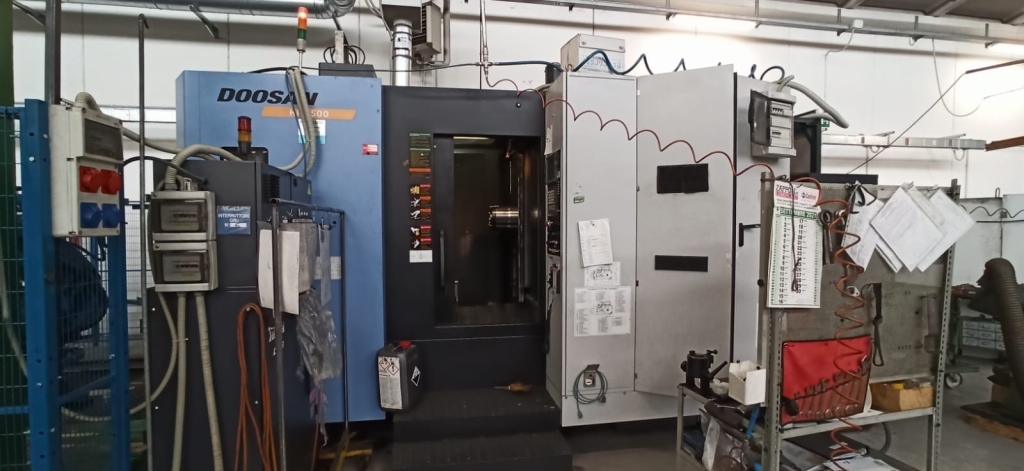

Centro Di Lavoro Orizzontale Doosan ACE HP 5500
Technical specifications

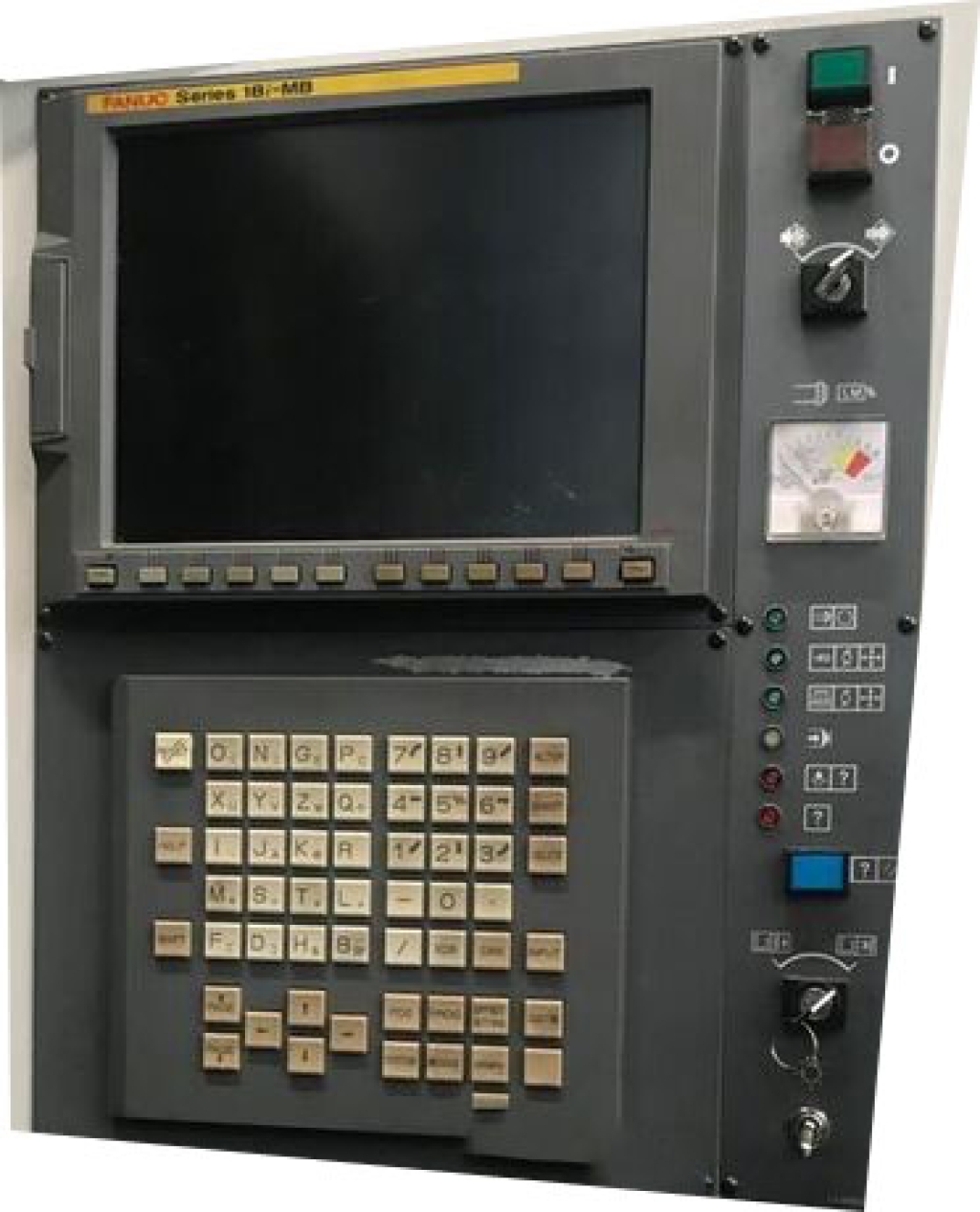

| CNC Model | Fanuc |
| CNC version | 18i MB |
| Spindle Taper toolholders | iso 50 |
| Power spindle | 22 Kw |
| RPM | 10000 |
| Number of tools | 60 |
| X-axis travel | 800 mm |
| Y-axis travel | 700 mm |
| Z-axis travel | 750 mm |
| Rapid linear axis feeds X Y Z | 48 m/min |
| Guide | Linear guide |

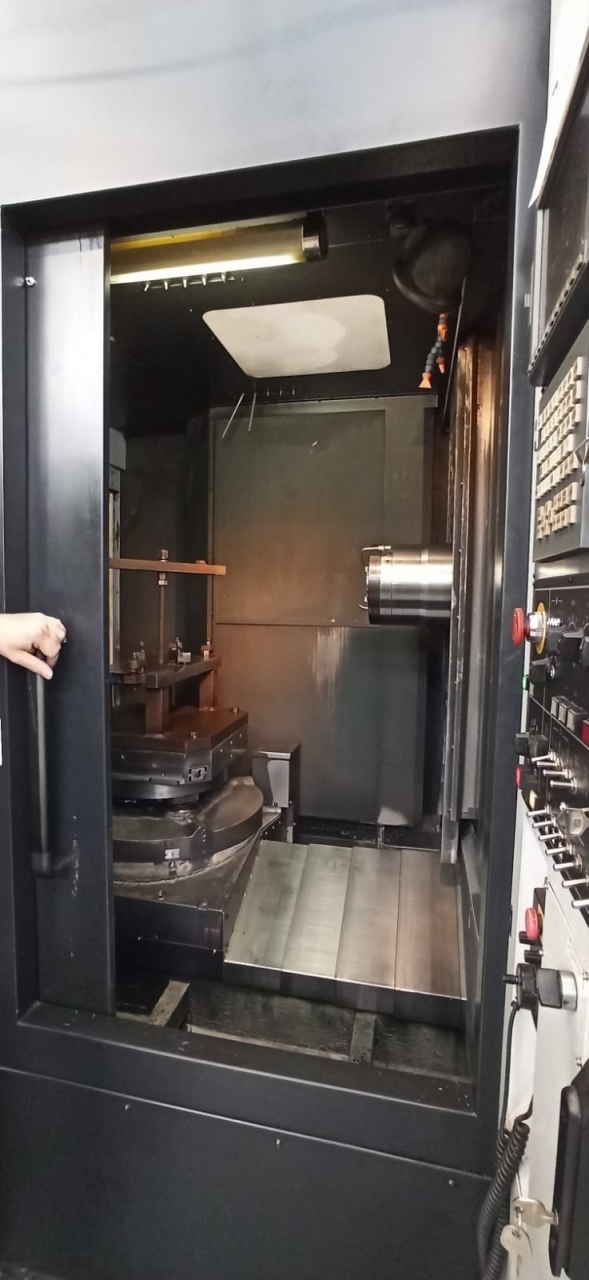

| Pallet dimensions | 500x500 mm |
| Pallet Type | Indexed |
| Degrees pallet | 1 |
| Maximum load allowed | 800 Kg |

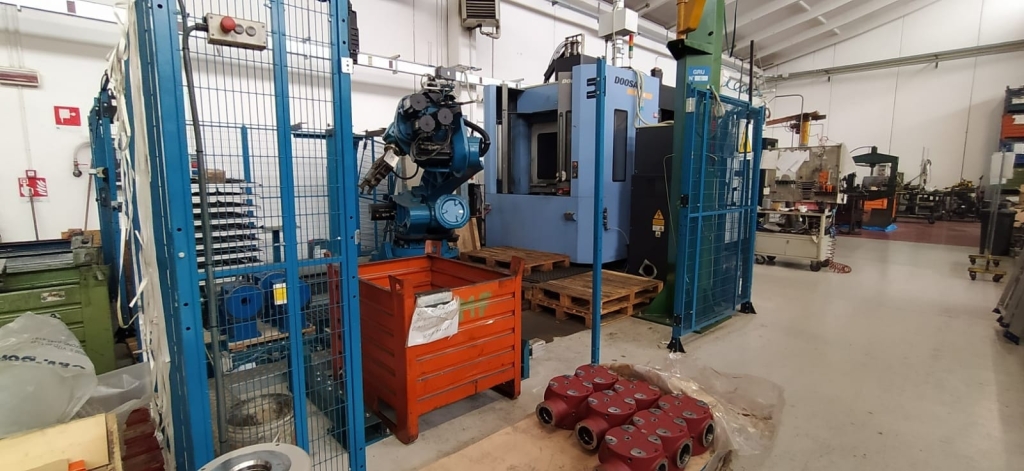

| Anthropomorphic robots | yes |
| Brand | Comau |
| Load capacity | 165 Kg |
| Material Stocker Systems | yes |
| Number of pallets | 8+8 |
| High coolant pressure | yes |
| Pressure value | 70 bar |

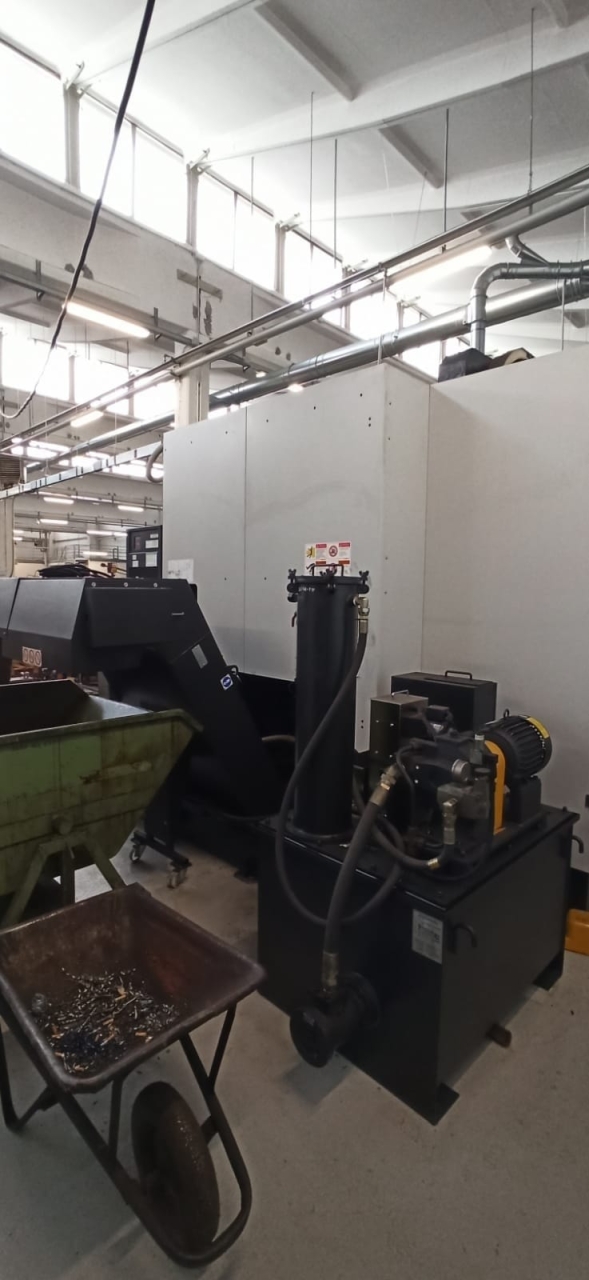

| System with external tank with filter | yes |
Basic information
| Code | 473BE1 |
| Level of machine tool |
standard
|
| Brand | Doosan |
| Model | ACE HP 5500 |
| Construction year | 2008 |
Complete data sheet
Predisposizione per bloccaggi idraulici sul pallet
Gestione vita utensileMachine equipment

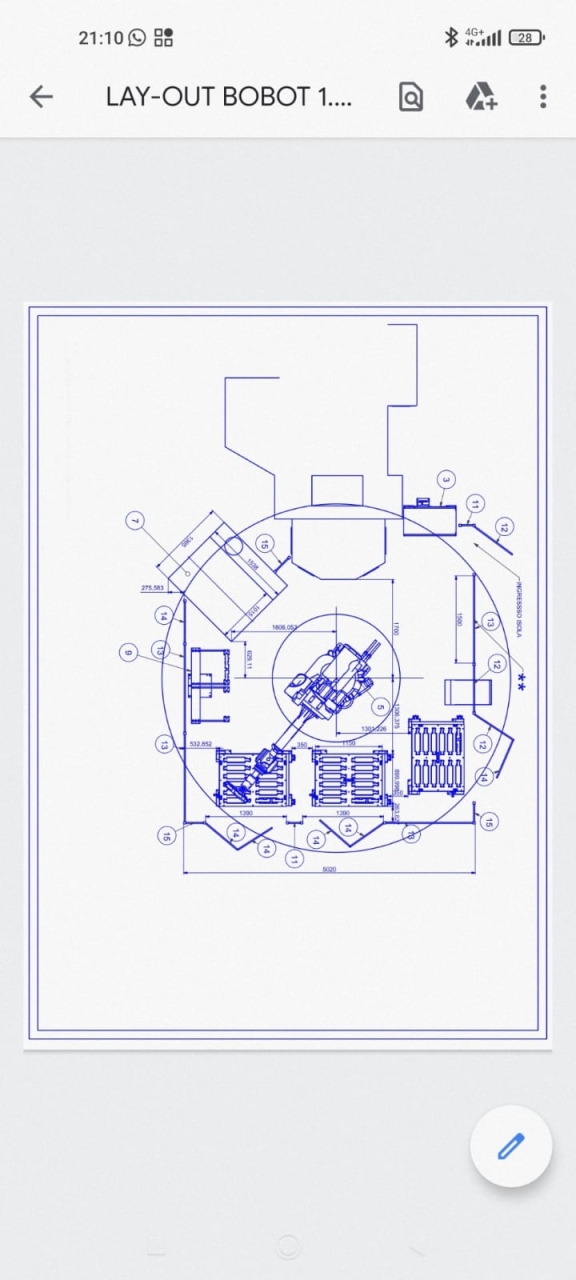

Isola di produzione composta da magazzino automatico pezzi grezzi - finiti
Lavapezzi intermediaDimensions and weight
| Length | 5940 mm |
| Width | 3670 mm |
| Height | 3300 mm |
| Weight | 17000 Kg |
