Centro Di Lavoro Orizzontale Mazak PFH 5800
Technical specifications

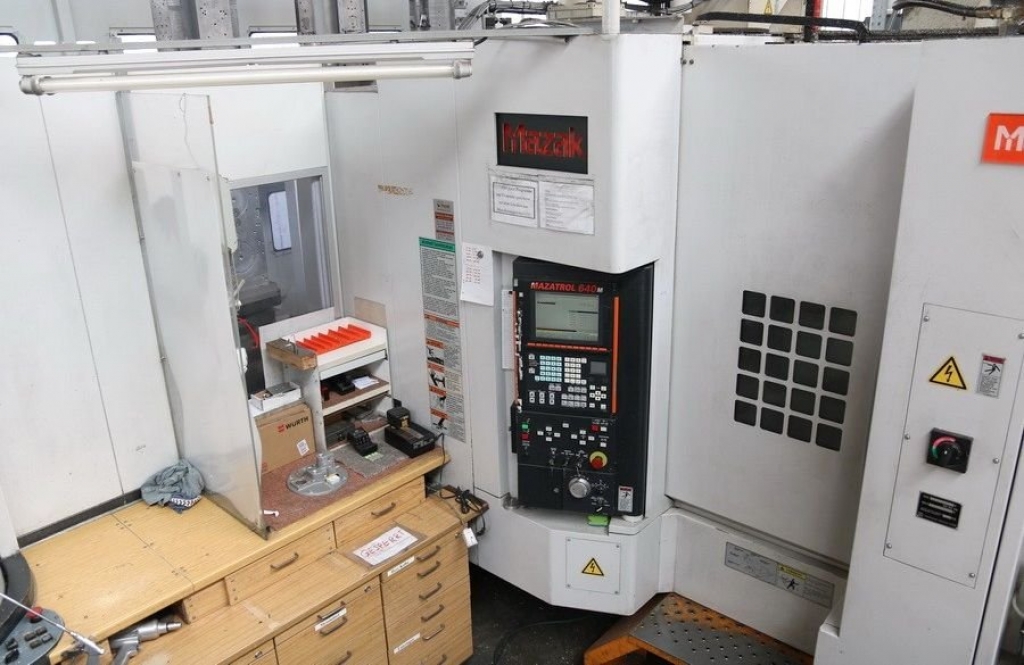

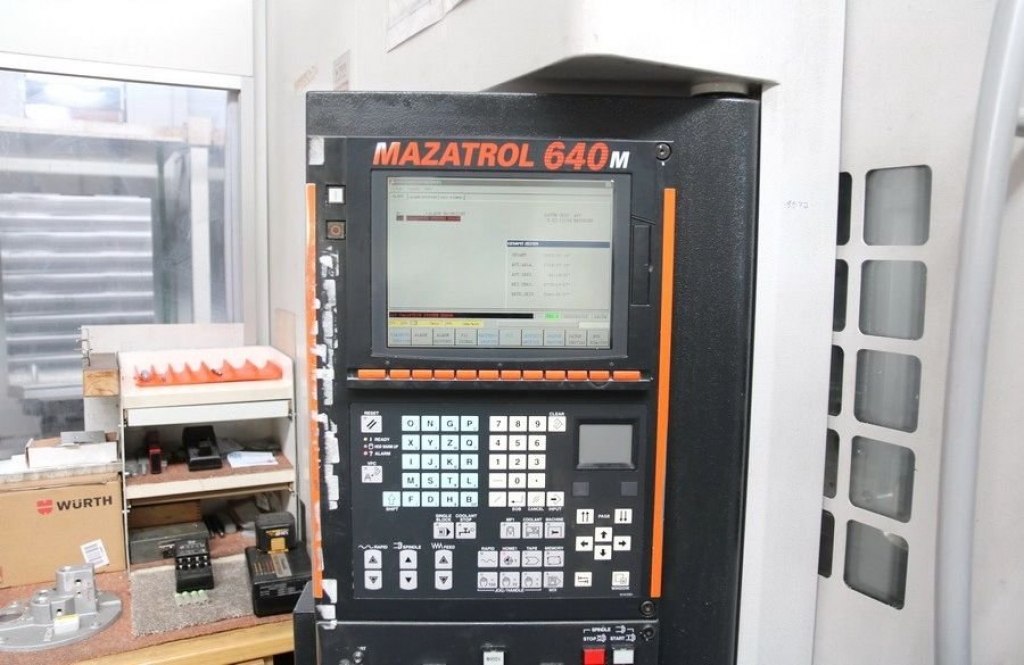

CNC Model | Mazatrol |
CNC version | 640 M |

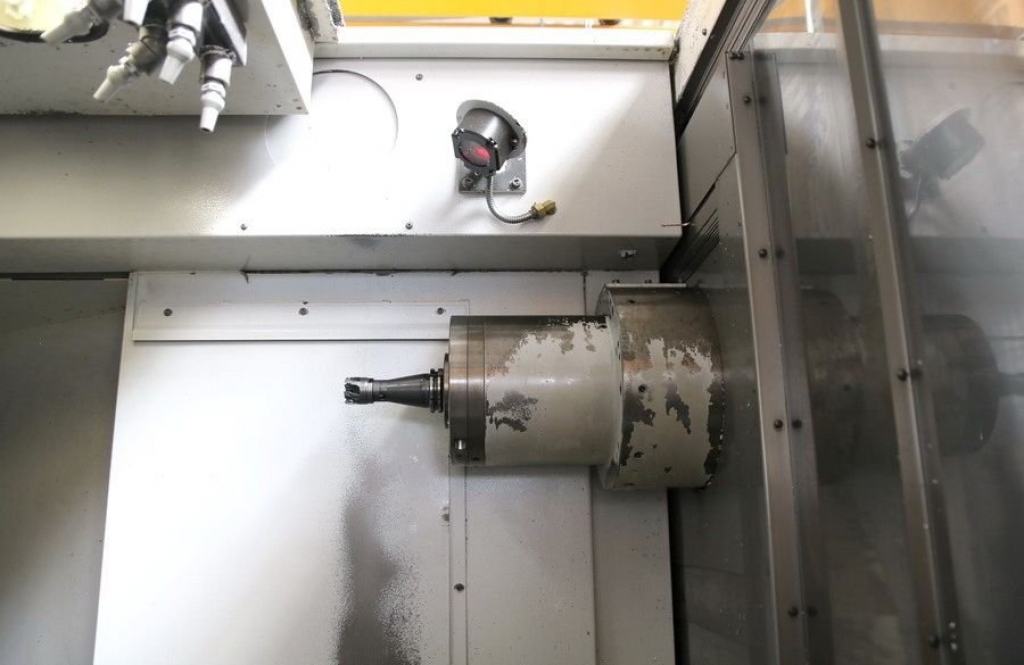

Spindle Taper toolholders | SK 40 |
Power spindle | 30 Kw |
RPM | 15000 |
Number of tools | 160 |
X-axis travel | 730 mm |
Y-axis travel | 730 mm |
Z-axis travel | 740 mm |
Rapid linear axis feeds X Y Z | 60 m/min |

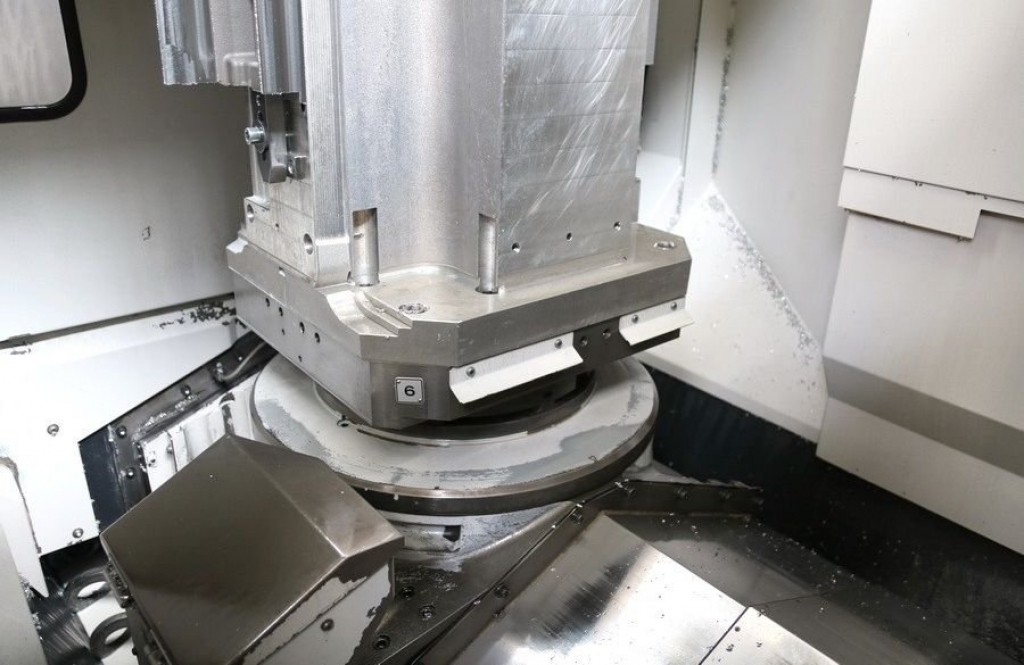

Pallet dimensions | 500x500 mm |
Pallet Type | Indexed |
Degrees pallet | 1 |

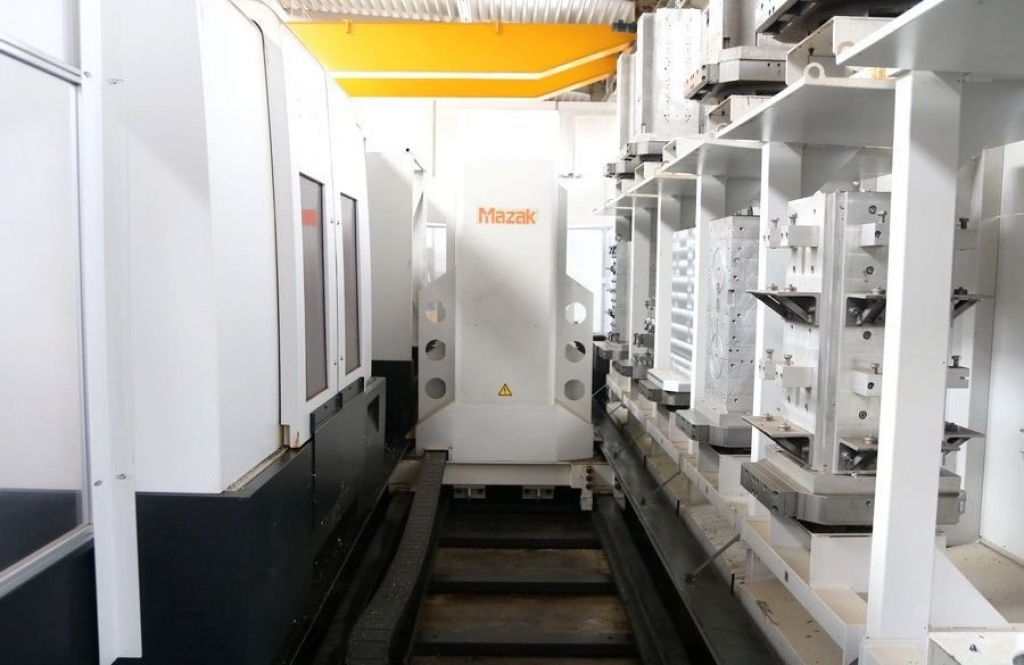

Multipallet | yes |
Numer of pallets | 12 |
Pallet system | Fastems |
Maximum load allowed | 700 Kg |
Cheap conveyor | Hinged Belt |
Presetting | yes |
Basic information
Code | D8E4C1 |
Level of machine tool |
standard
|
Brand | Mazak |
Model | PFH 5800 |
Construction year | 2005 |
Complete data sheet
distanza centro del mandrino dalla tavola 80 - 810mm
distanza Spindlenose e centro del tavolo 70 - 810mm
diametro massimo del pezzo da lavorare 800mm
altezza massima del pezzo da lavorare 1.000 mm
diametro massimo dell'utensile 95mm
max. tool-dia con cassetta degli attrezzi libera 150mm
lunghezza massima dell'utensile 400mm
peso massimo dell'utensile 12,0kg
cambio di tempo da truciolo a truciolo 2,5sec
potenza totale richiesta 70,2kVADimensions and weight
Length | 10000 mm |
Width | 11000 mm |
Height | 3500 mm |
Weight | 12600 Kg |
