Sold

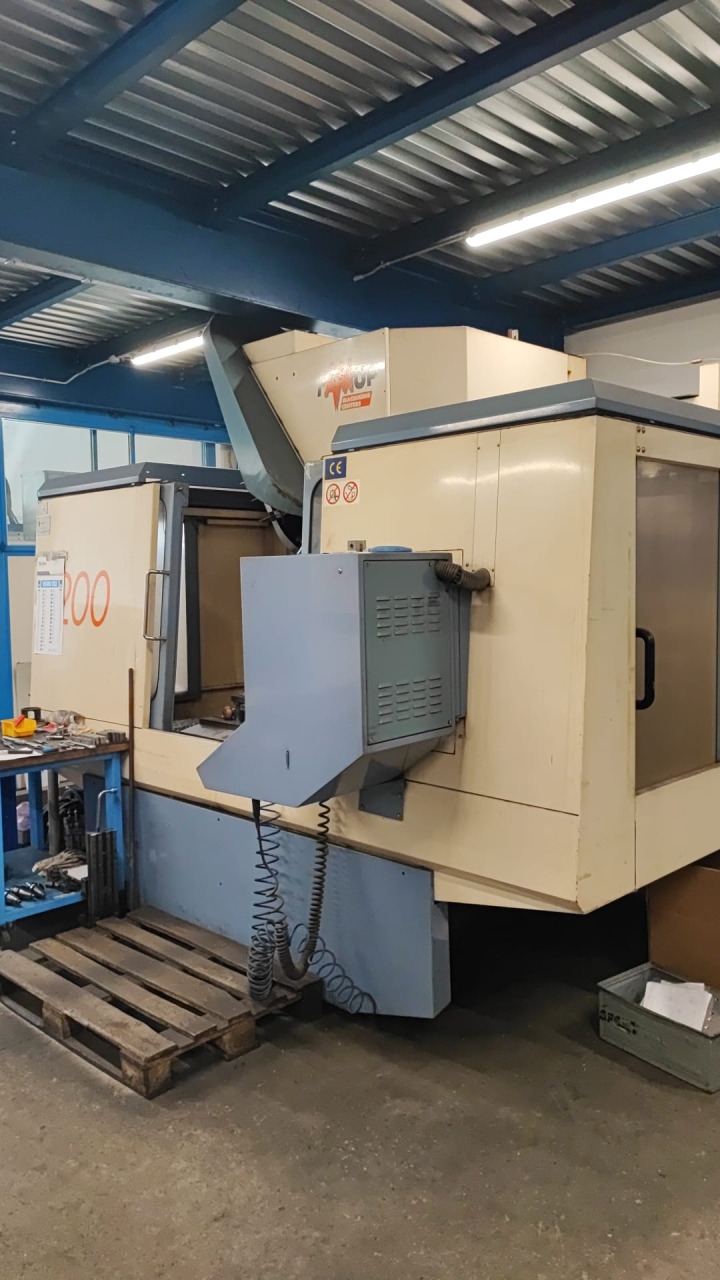

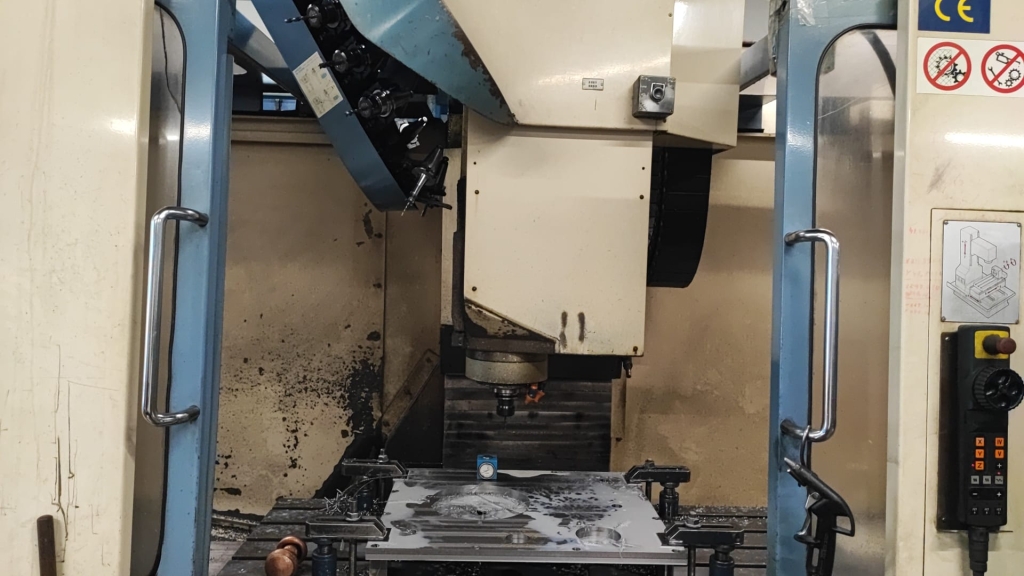

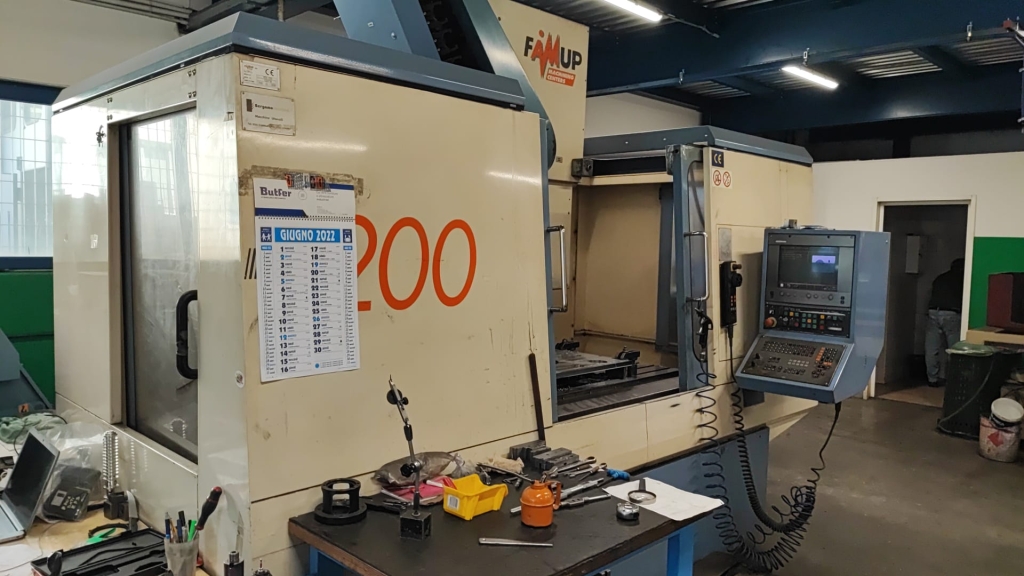

Centro Di Lavoro Famup MCX 1200
Technical specifications

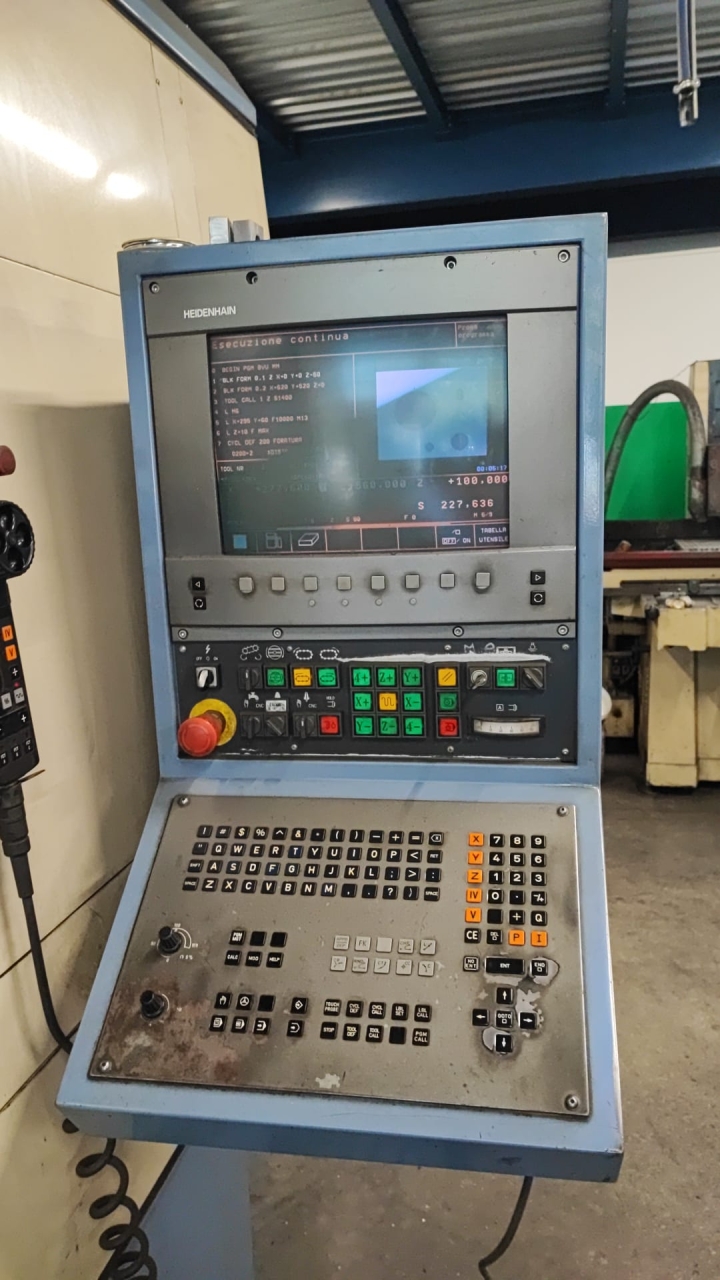

| CNC Model | Heidenhain |
| CNC version | 426 |
| Spindle Taper toolholders | BT 40 |
| Power spindle | 7,5 Kw |
| RPM | 4500 |
| Number of tools | 24 |
| X-axis travel | 1200 mm |
| Y-axis travel | 600 mm |
| Z-axis travel | 470 mm |
| Rapid linear axis feeds X Y Z | 24 m/min |
| Table dimension | 1400 x 550 mm |
| Guide | Linear guide |
| ROTARY TABLE 4th axis | yes |
| Brand and Model | Euroma |
| High coolant pressure | yes |
Basic information
| Code | 2C50CE |
| Level of machine tool |
standard
|
| Brand | Famup |
| Model | MCX 1200 |
| Construction year | 1998 |
Dimensions and weight
| Length | 3675 mm |
| Width | 2985 mm |
| Height | 3090 mm |
| Weight | 10000 Kg |
