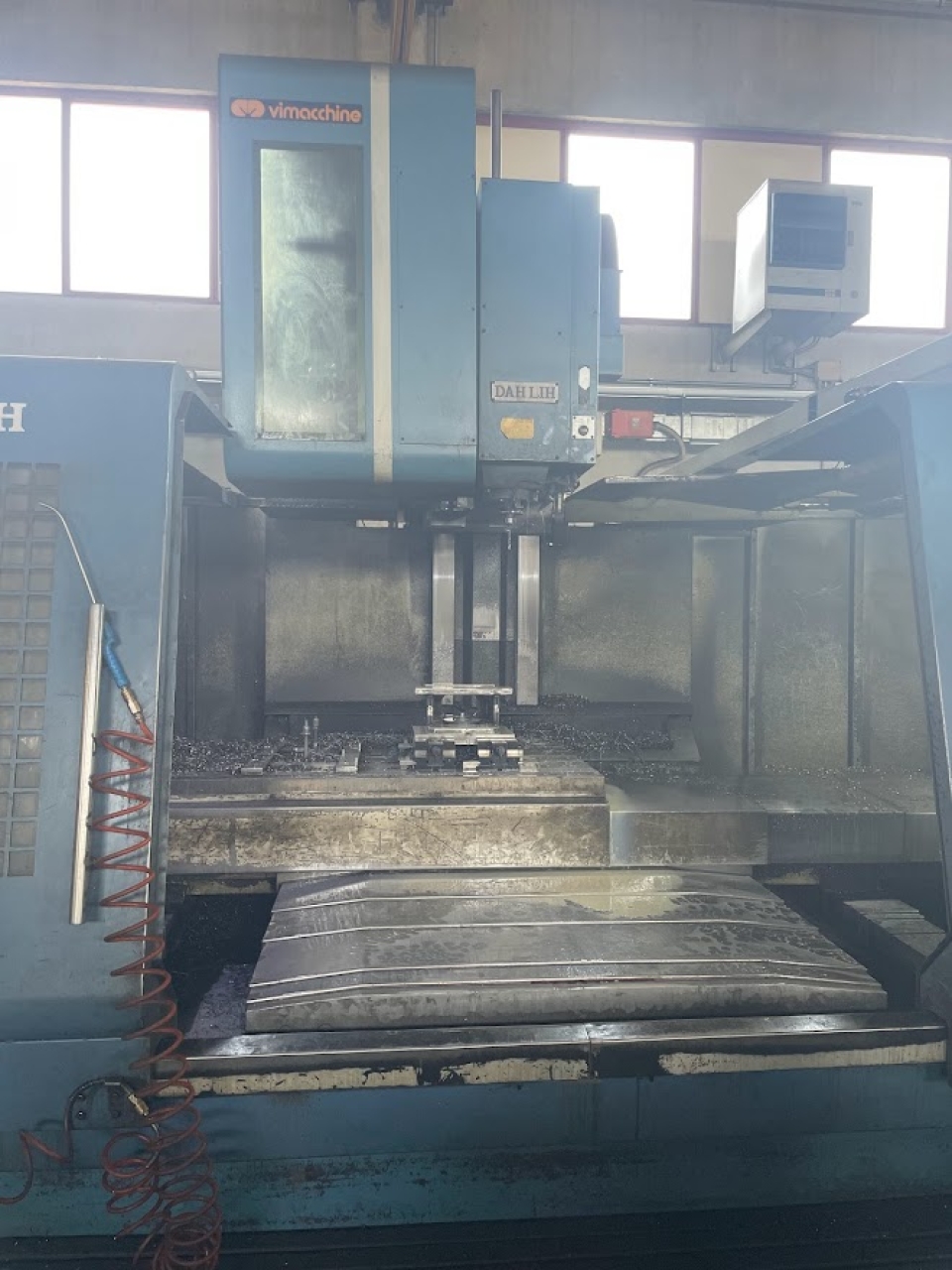

Centro Di Lavoro Verticale Dah Lih DL-MCV2600
Technical specifications

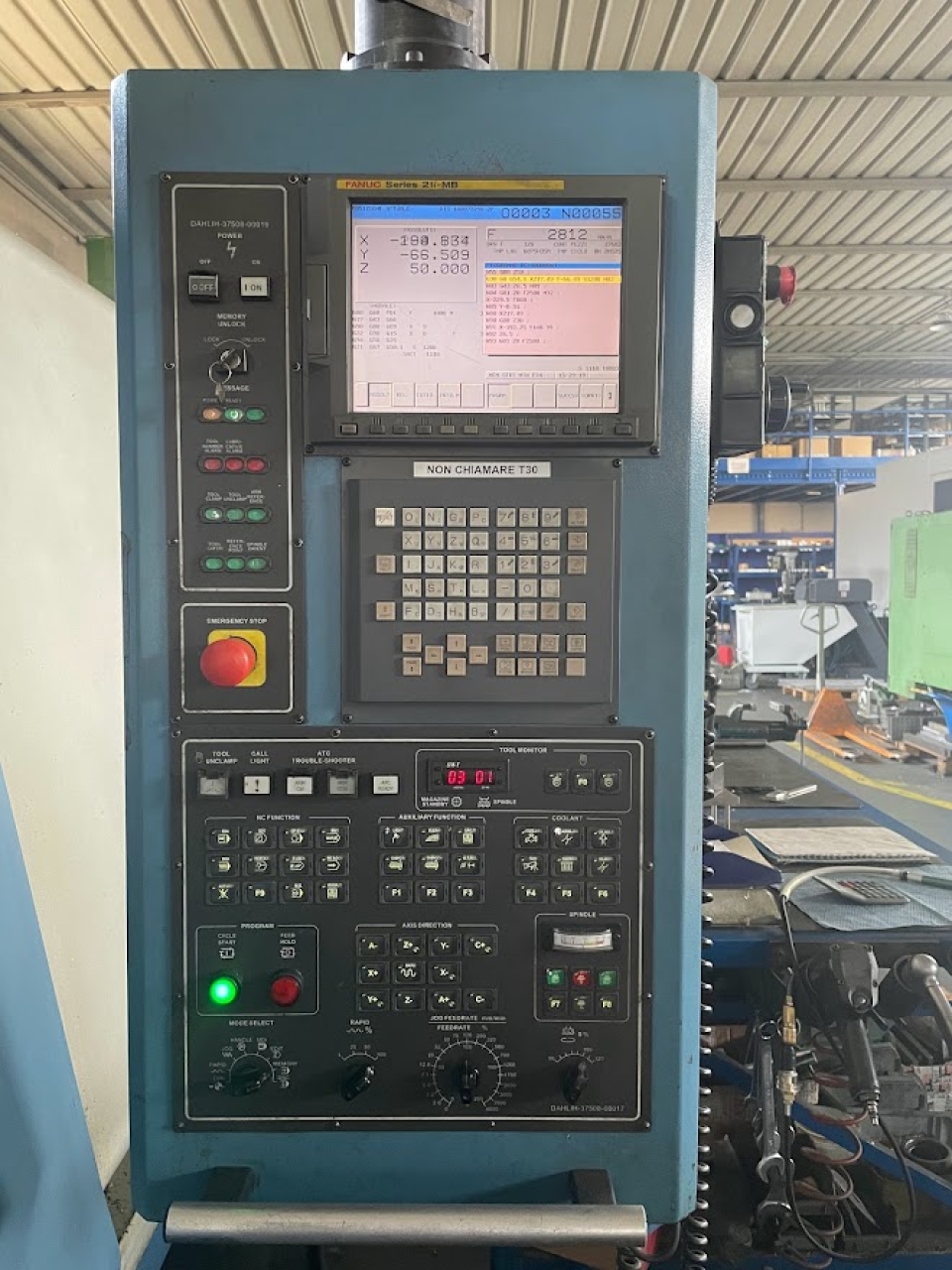

| CNC Model | Fanuc |
| CNC version | 21-MB |
| Spindle Taper toolholders | iso 50 |
| Power spindle | 25 Kw |
| RPM | 10000 |
| Number of tools | 32 |
| X-axis travel | 2600 mm |
| Y-axis travel | 850 mm |
| Z-axis travel | 760 mm |
| Rapid linear axis feeds X Y Z | 10 m/min |
| Table dimension | 2300 x 800 mm |
| Maximum load allowed | 3000 Kg |
| Guide | Slideways |
| High coolant pressure | yes |

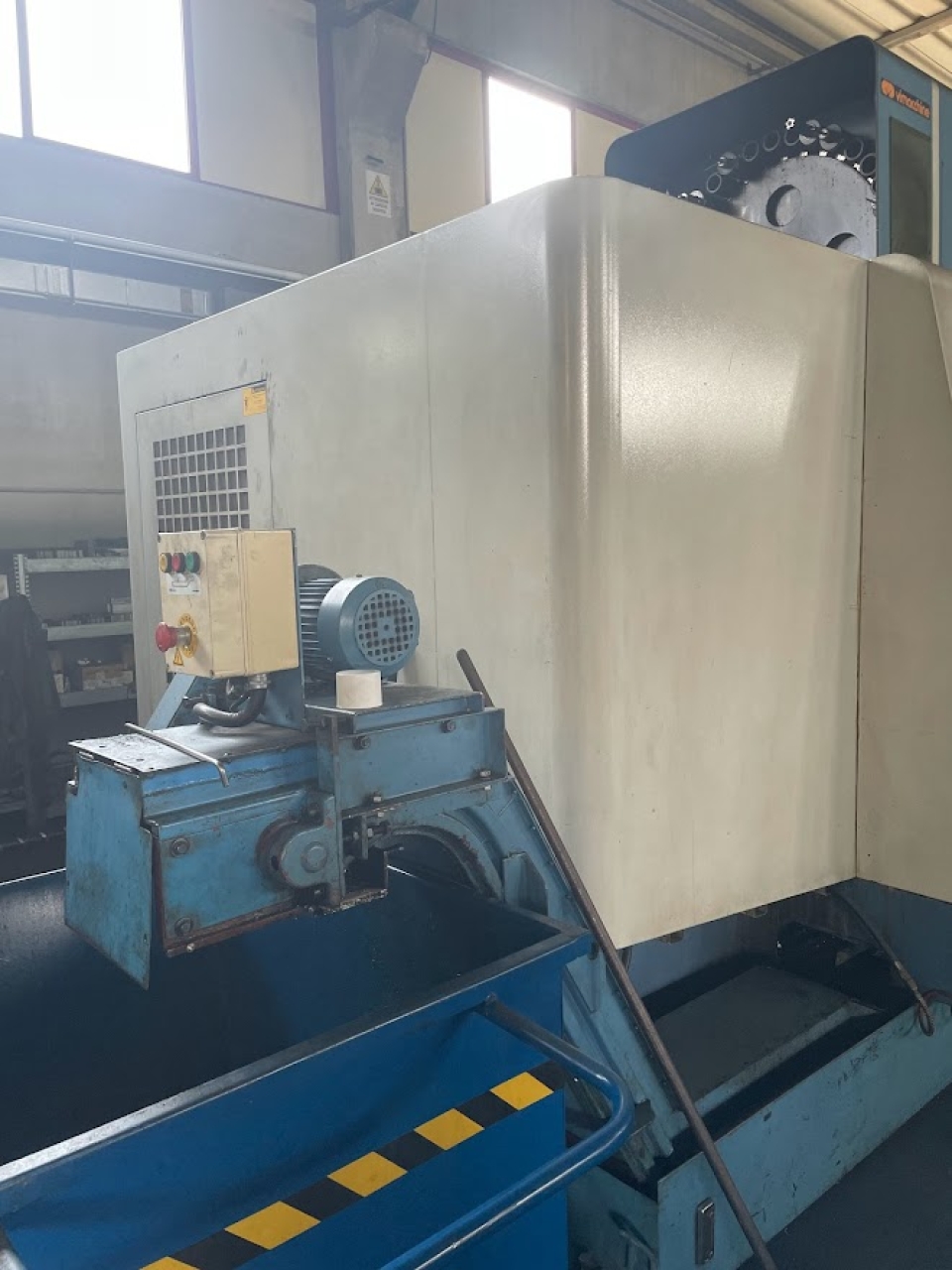

| Cheap conveyor | Hinged Belt |
Basic information
| Code | 1C5861 |
| Level of machine tool |
standard
|
| Brand | Dah Lih |
| Model | DL-MCV2600 |
| Construction year | 2007 |
Dimensions and weight
| Length | 8000 mm |
| Width | 4135 mm |
| Weight | 16000 Kg |
