Tornio Comev PICO CM 350/4000
Technical specifications

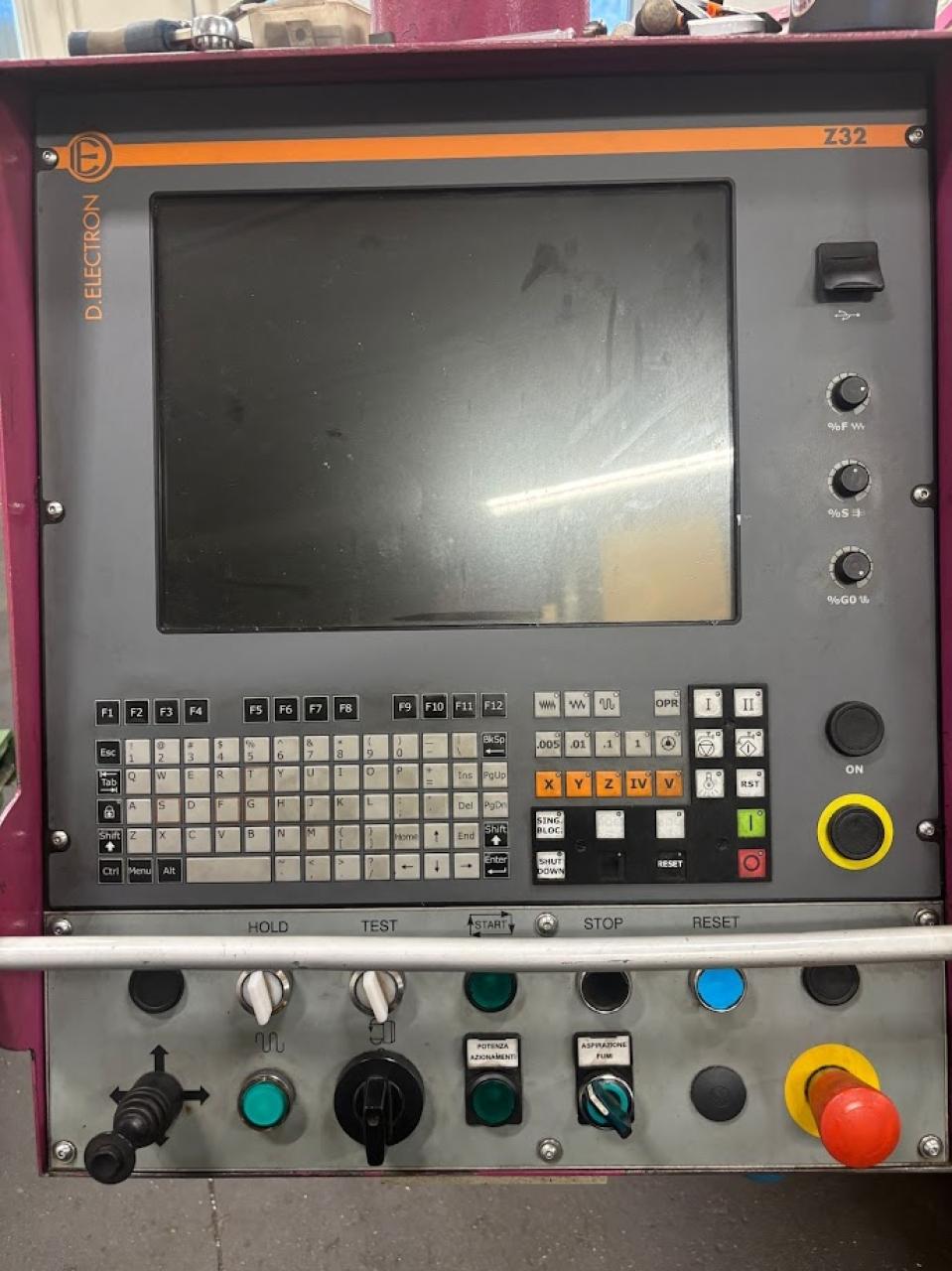

| CNC Model | Delectron |
| CNC version | Z32 |
| Nose spindle | Cam Lock 8 |
| Power spindle | 18 Kw |
| hight of centres | 350 mm |
| max turning diameter | 700 mm |
| max turning diameter over cross slide | 460 mm |
| Max turning lenght | 4000 mm |
| RPM | 1500 |
| Bar diameter | 130 mm |
| Turret | Automatic |
| Number of turrets | 1 |
| Number tool posts on the 1th turret | 4 |
| Rapid linear axis feeds X Y Z | 500 m/min |
| Tailstock | yes |
Basic information
| Code | 987120 |
| Level of machine tool |
standard
|
| Brand | Comev |
| Model | PICO CM 350/4000 |
| Construction year | 2000 |
Dimensions and weight
| Length | 4580 mm |
| Width | 2140 mm |
| Height | 1600 mm |
| Weight | 4500 Kg |
