Tornio Motorizzato Mori Seiki ZL 203SMC
Technical specifications

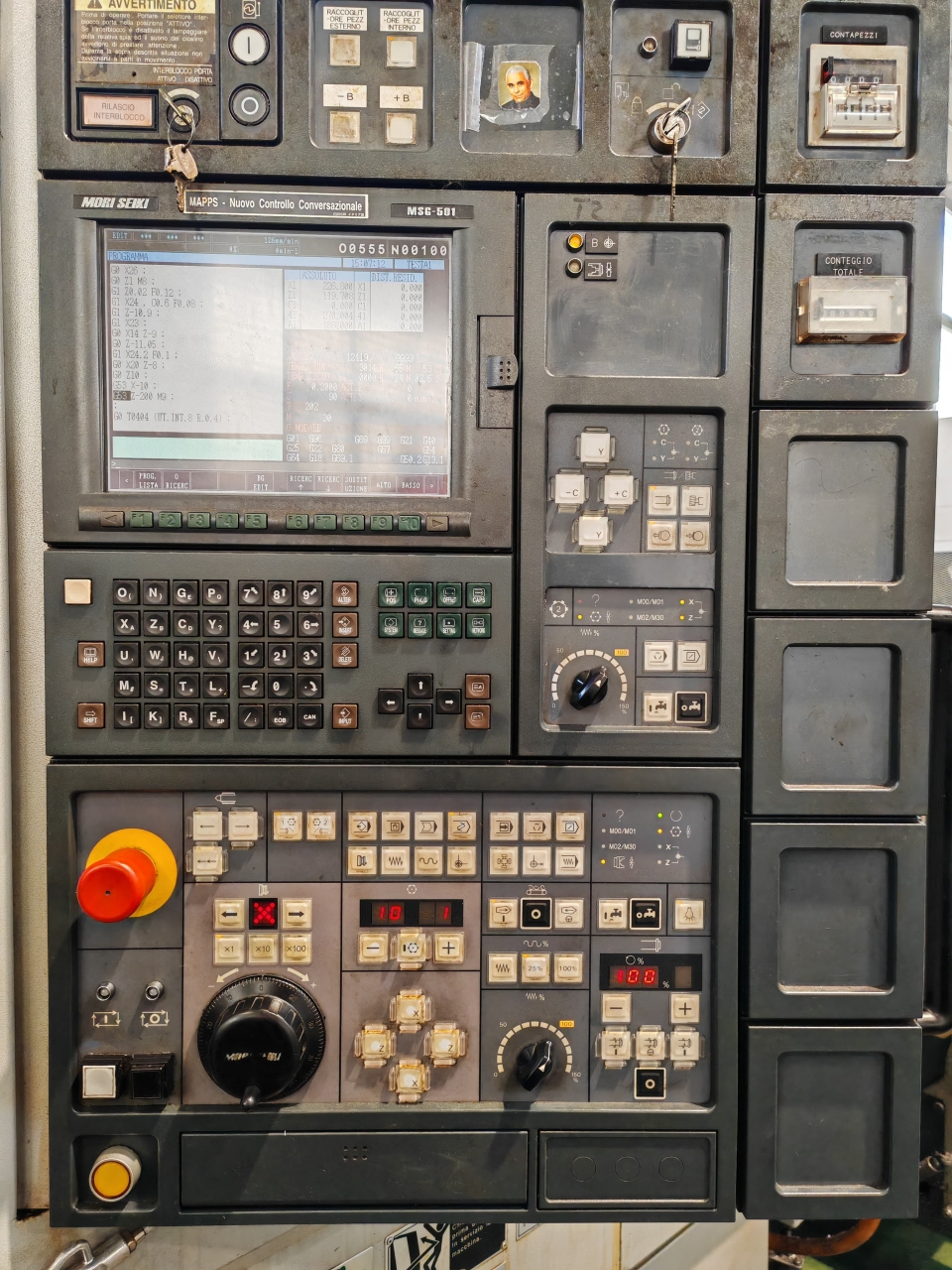

| CNC Model | Mori Seiki |
| CNC version | MSC501 |
| Main spindle nose | ASA 6 |
| Power main spindle | 11 Kw |

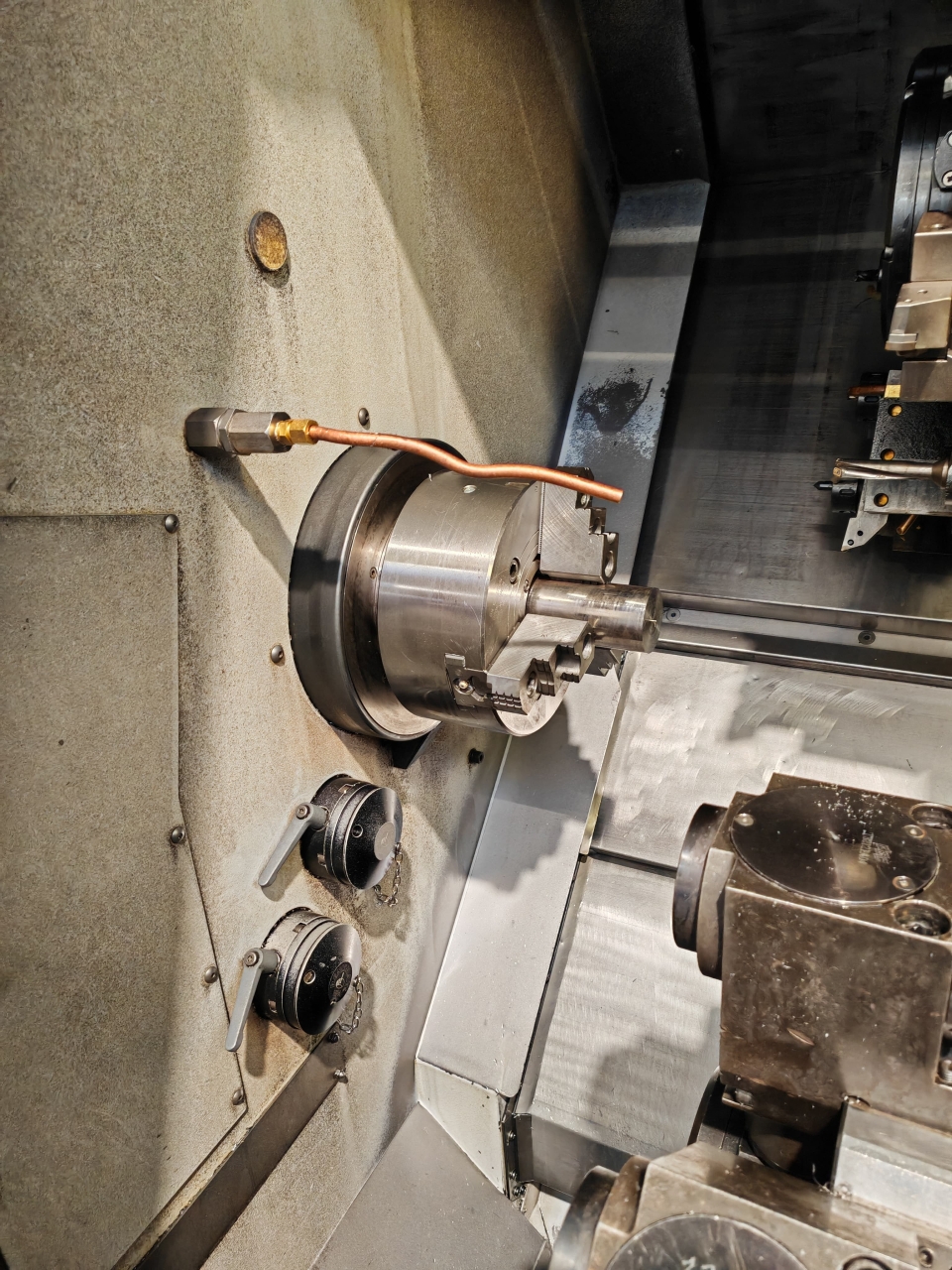

| Main spindle chuck diameter | 210 mm |
| Main spindle bar diameter | 65 mm |
| Max turning diameter | 390 mm |
| Max turning lenght | 752 mm |
| Main spindle RPM | 4000 |

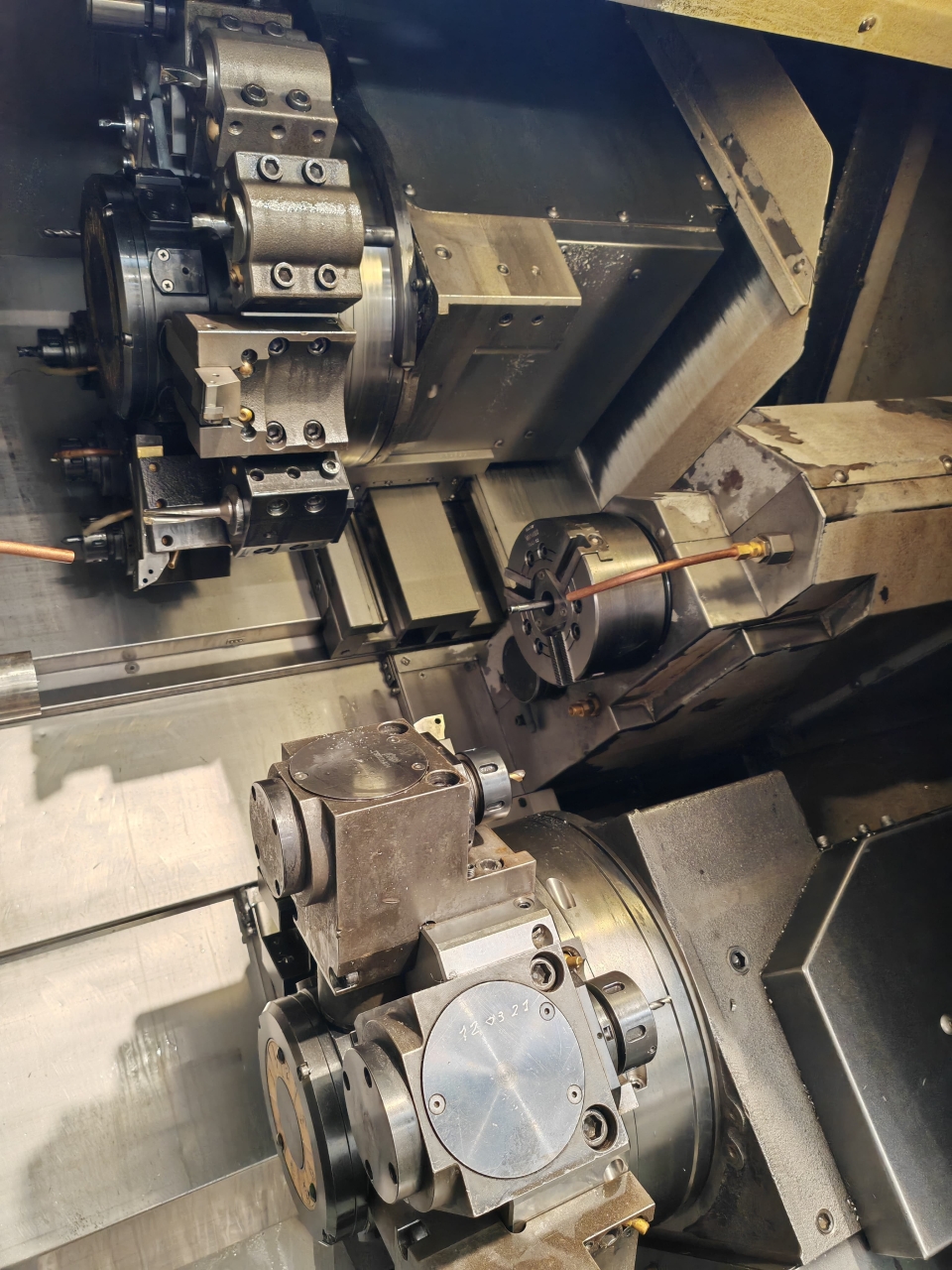

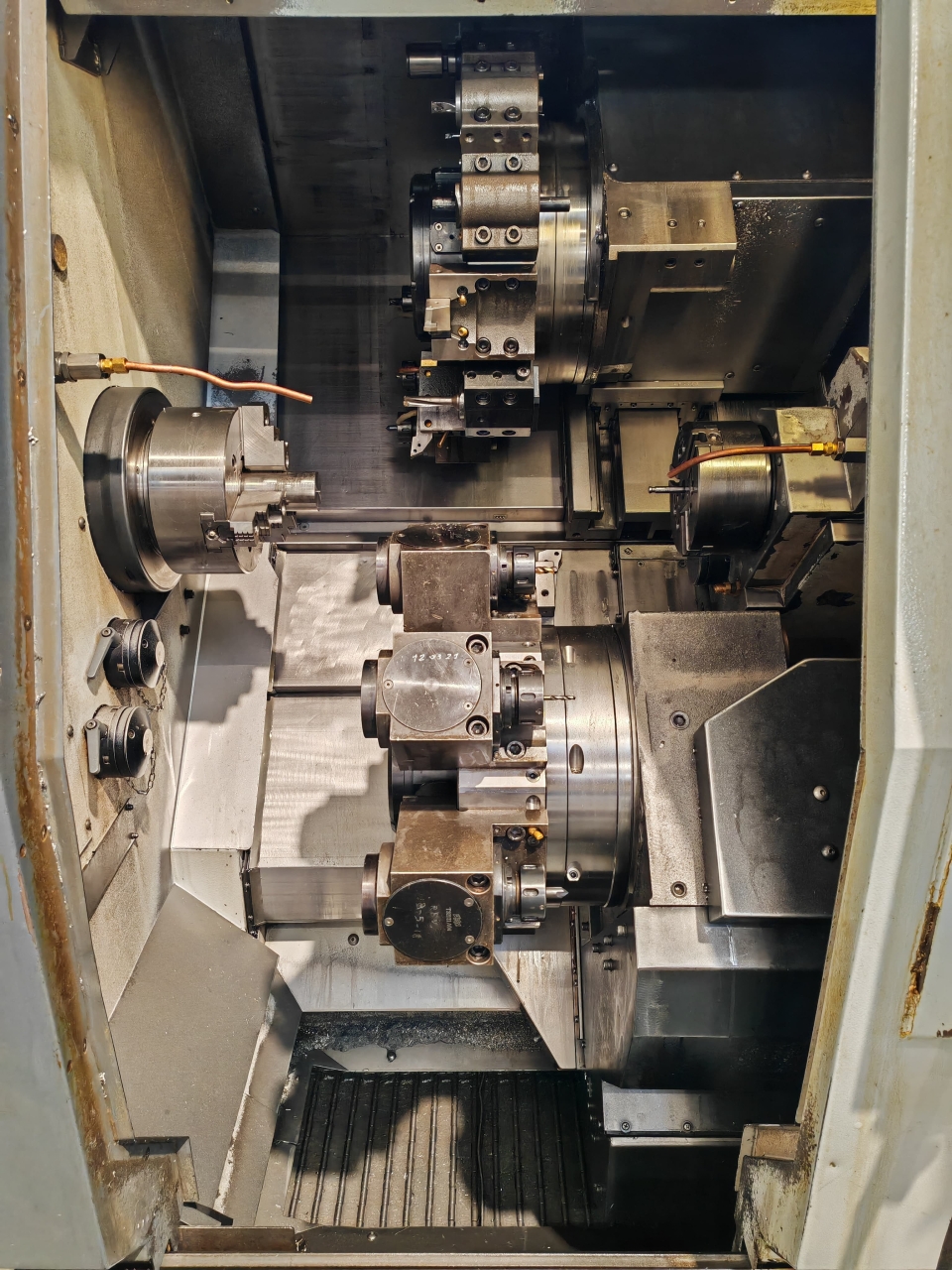

| Number of turrets | 2 |
| Number tool posts on the 1th turret | 12 |
| Number of driven tool posts on the 1th turret | 12 |
| X-axis travel 1th turret | 235 mm |
| Z-axis travel 1th turret | 520 mm |
| Number tool posts on the 2th turret | 8 |
| Number of fixed tool posts on the 2th turret | 8 |
| X-axis travel 2th turret | 175 mm |
| Z-axis travel 2th turret | 490 mm |
| Rapid linear axis feeds X Y Z | 24 m/min |
| Subspindle | yes |
| Nose spindle | ASA 5 |
| Sub spindle RPM | 6000 |
| Bar diameter | 51 mm |

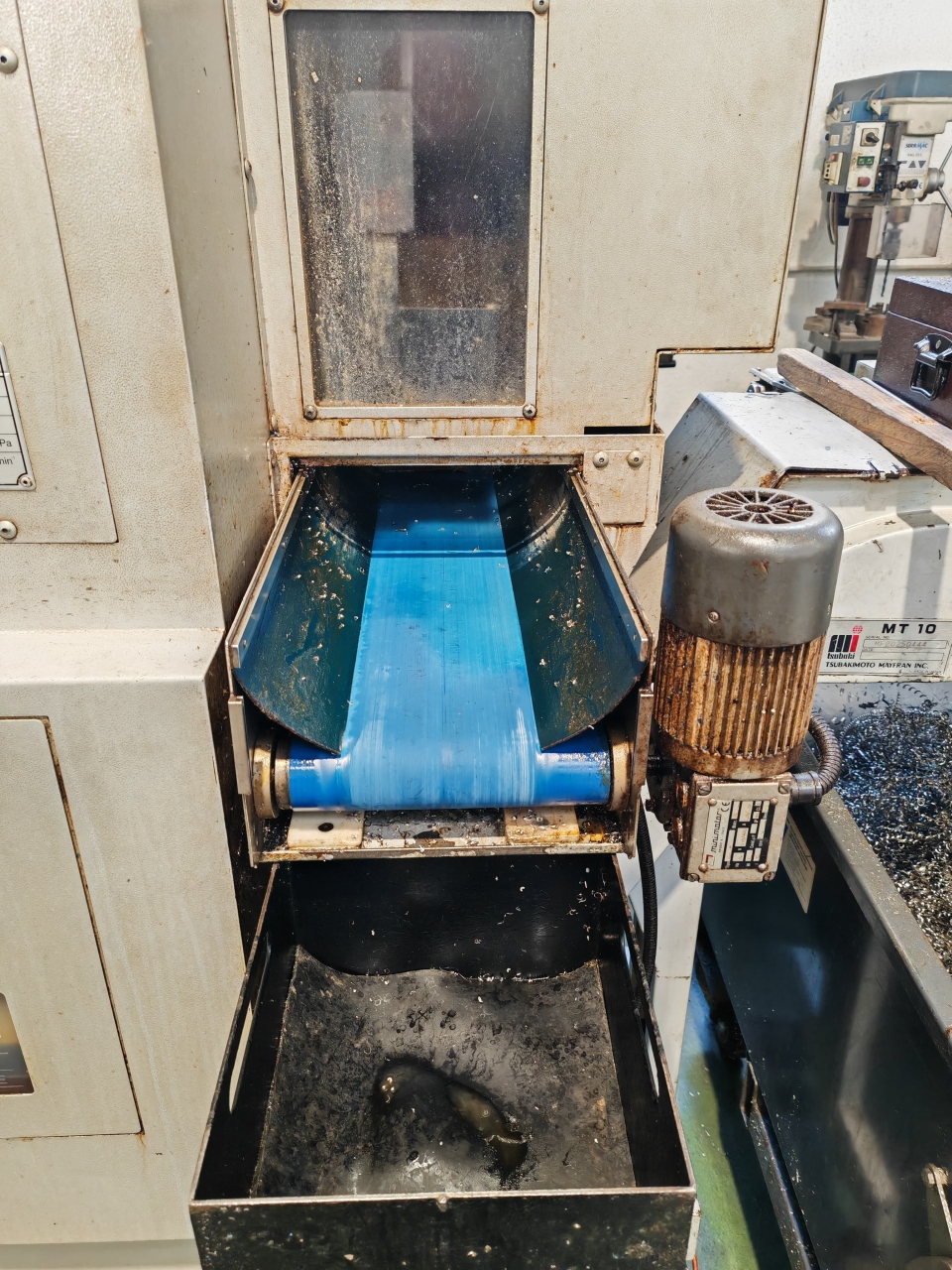

| Cheap conveyor | Hinged Belt |
| Presetting | yes |
| Part catcher | yes |
Basic information
| Code | 685E75 |
| Level of machine tool |
IB Product
|
| Brand | Mori Seiki |
| Model | ZL 203 |
| Construction year | 2002 |
Machine equipment

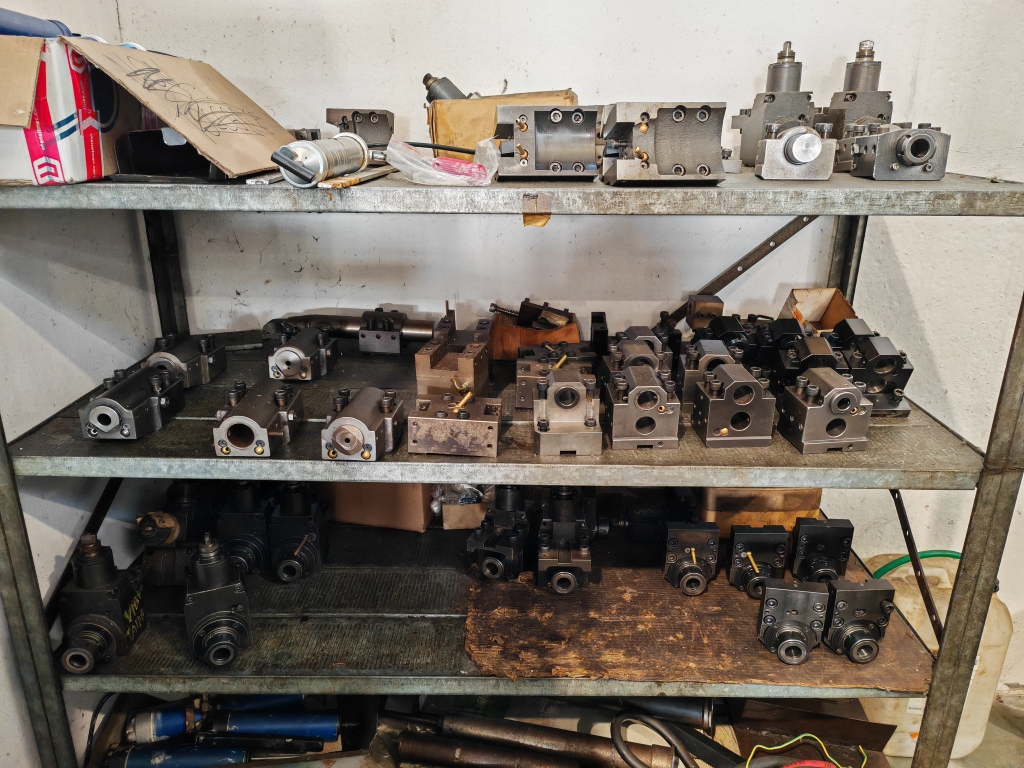

Ricca dotazione di portautensili fissi e motorizzati
scarico pezzi a nastro
predisposizione per lavoravione da barraDimensions and weight
| Length | 4000 mm |
| Width | 2150 mm |
| Height | 2200 mm |
| Weight | 5850 Kg |
