Tornio Famar Maxer 400
Technical specifications
| CNC Model | Siemens |

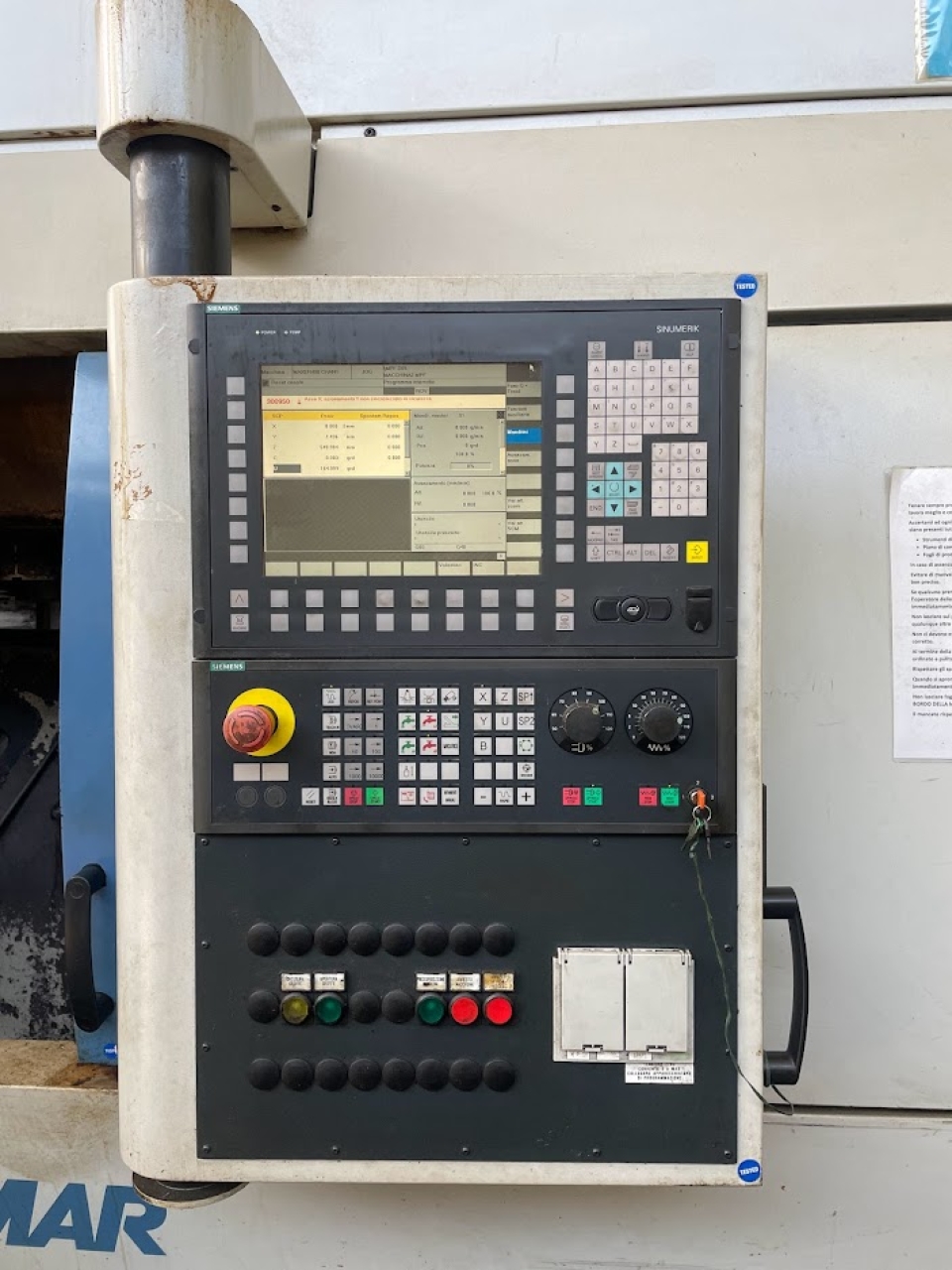

| CNC version | 840 D |
| Main spindle nose | ASA 8 |
| Inverted spindle lathe | yes |
| X-axis spindle travel | 1850 mm |
| Z-axis spindle travel | 600 mm |
| Y-axis spindle travel | 400 mm |

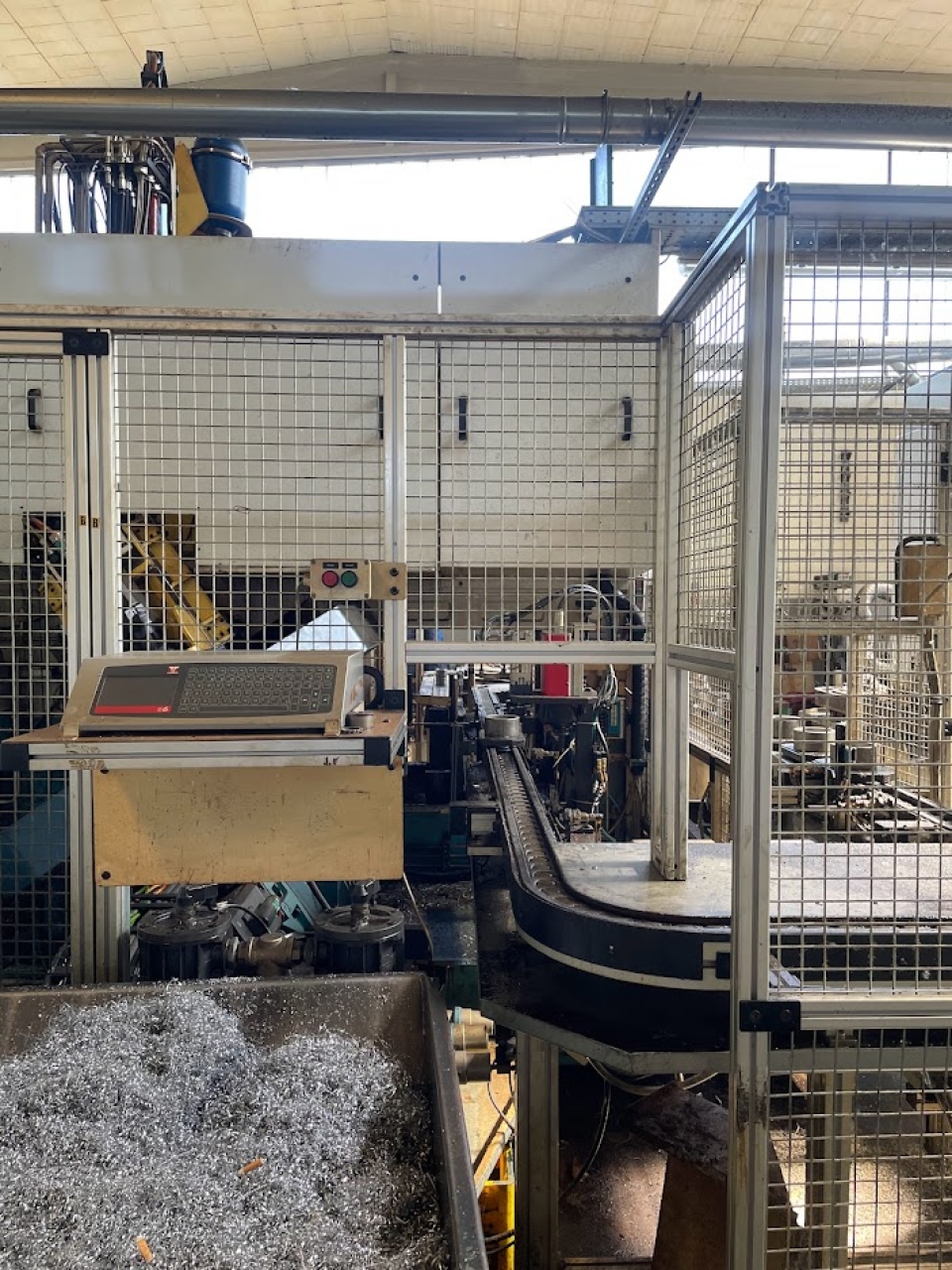

| Material Stocker Systems | yes |
| Number of pallets | 15 |
| Power main spindle | 45 Kw |
| Main spindle chuck diameter | 300 mm |
| Max turning diameter | 320 mm |
| Max turning lenght | 280 mm |
| Main spindle RPM | 5500 |

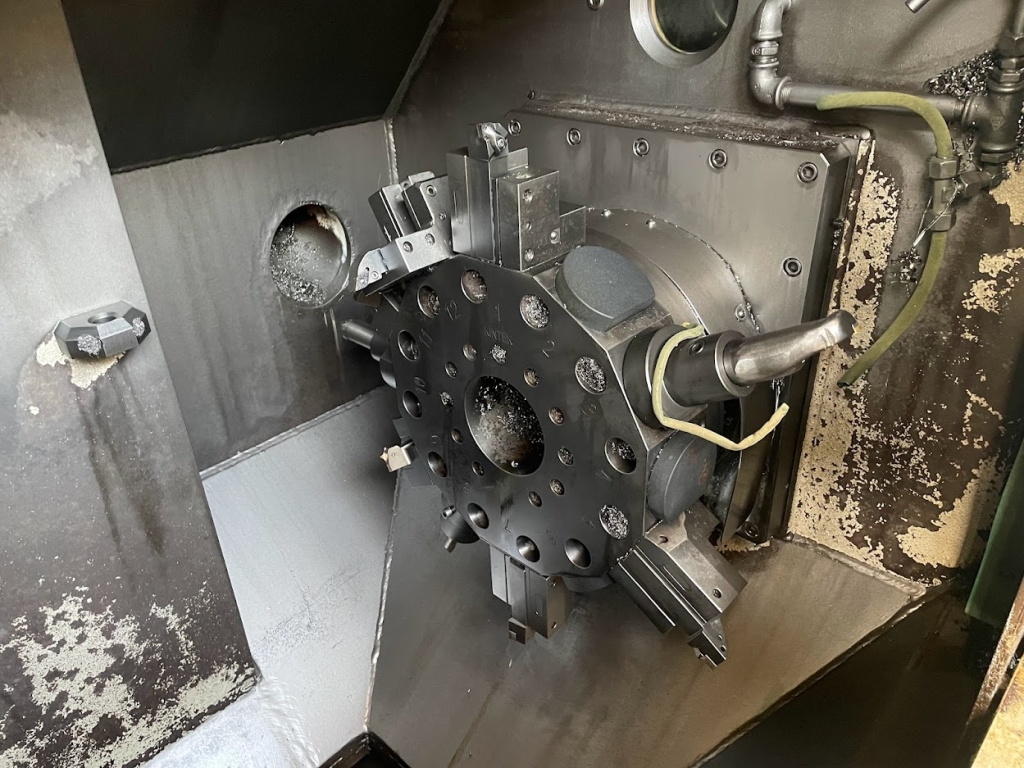

| Number of turrets | 1 |
| Number tool posts on the 1th turret | 12 |
| Number of fixed toolholders in 1th turret | 12 |
| Tool holder type 1th turret | VDI 50 |
| Rapid linear axis feeds X Y Z | 60 m/min |
| High coolant pressure | yes |
| Cheap conveyor | Hinged Belt |
Basic information
| Code | 4A515F |
| Level of machine tool |
standard
|
| Brand | Famar |
| Model | Maxer 400 |
| Construction year | 2005 |
Complete data sheet

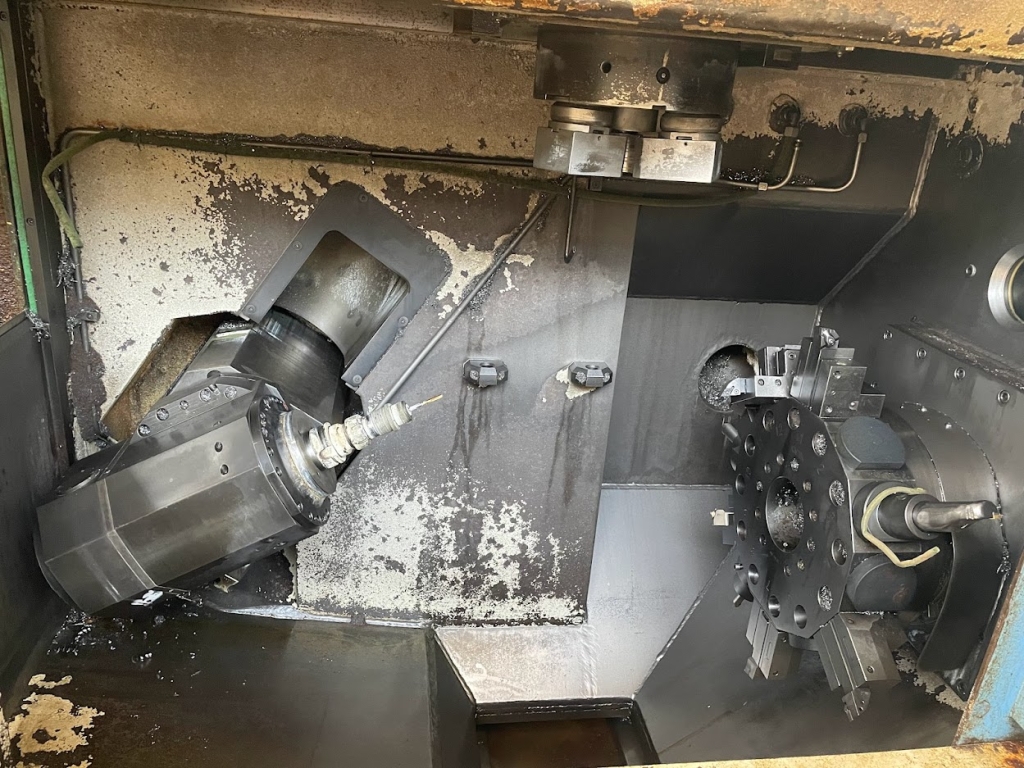

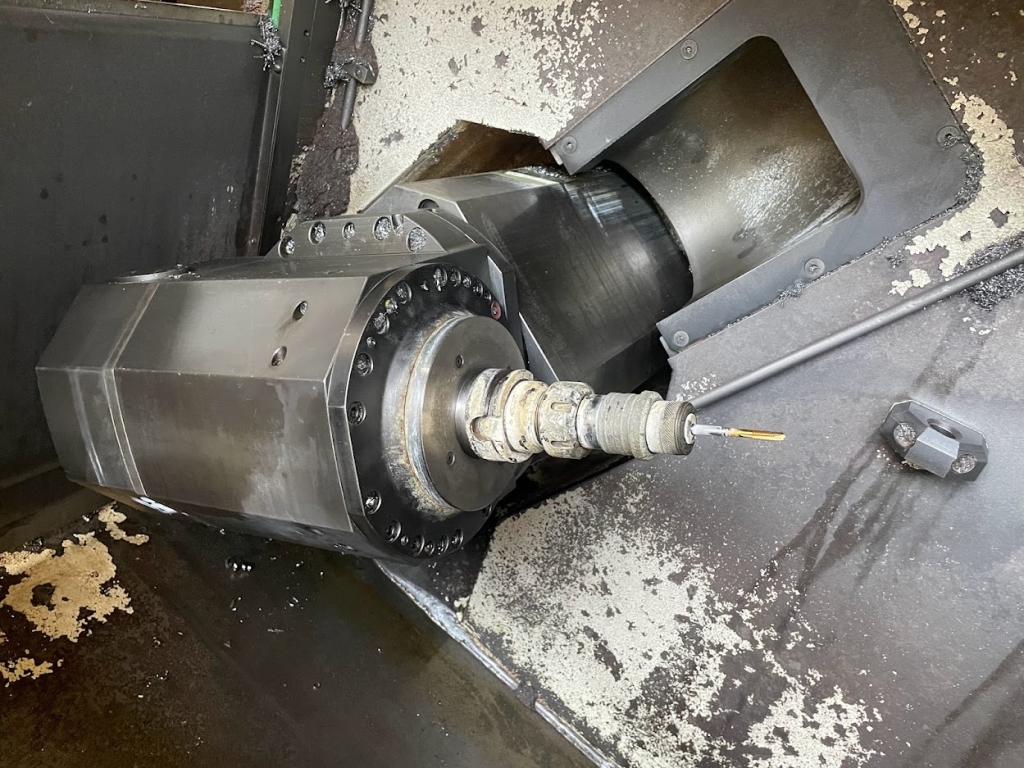

Elettromandrino orientabile di fresatura :
attacco HSK 63
giri 12000
Asse di rotazione B -15° +90°
cambio utensili a 32 postiMachine equipment
set di portautensili
Marcatrice meccanica in linea
