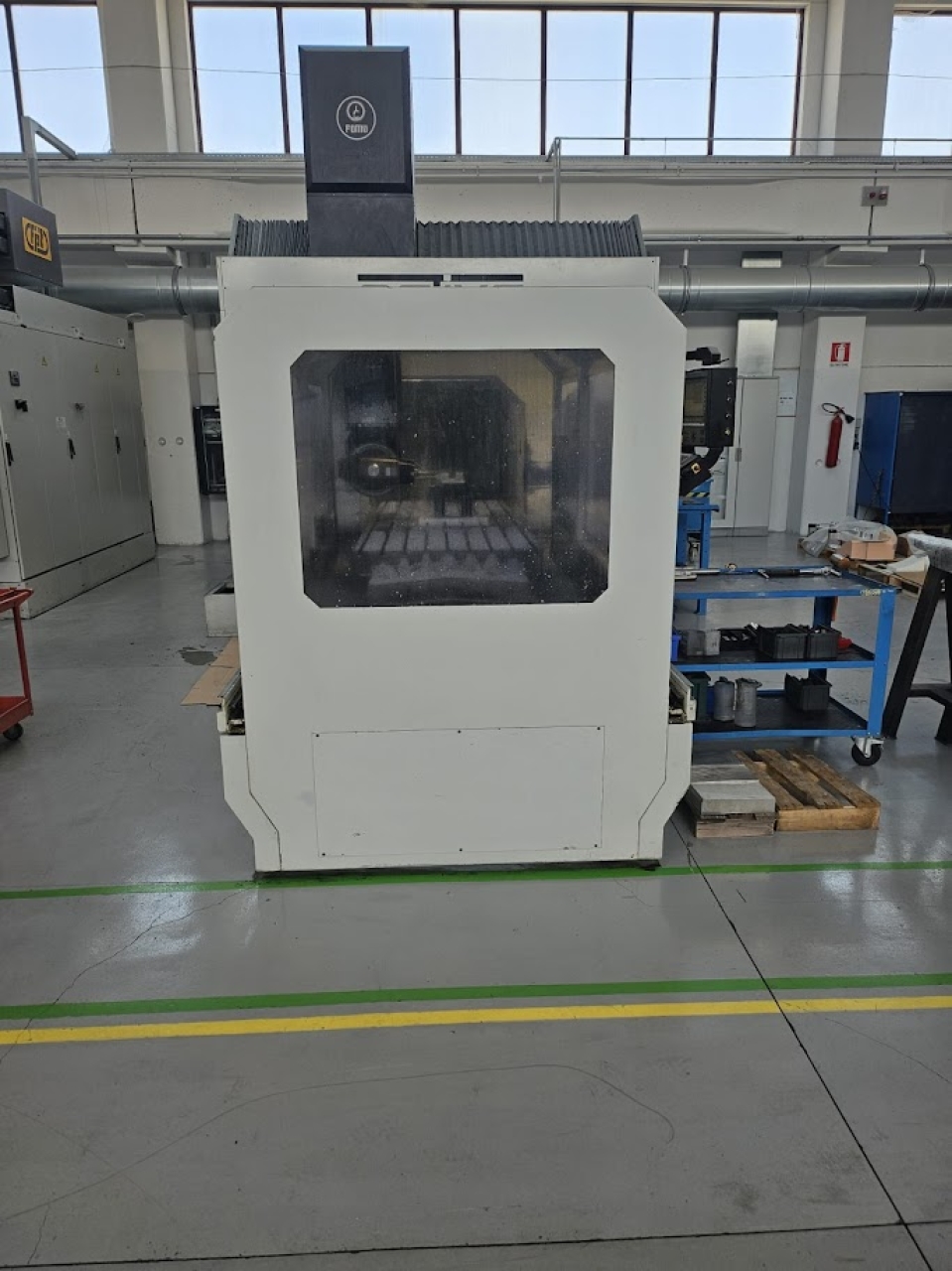

Fresatrice A 5 Assi Omv Famu ACTIVE
Technical specifications

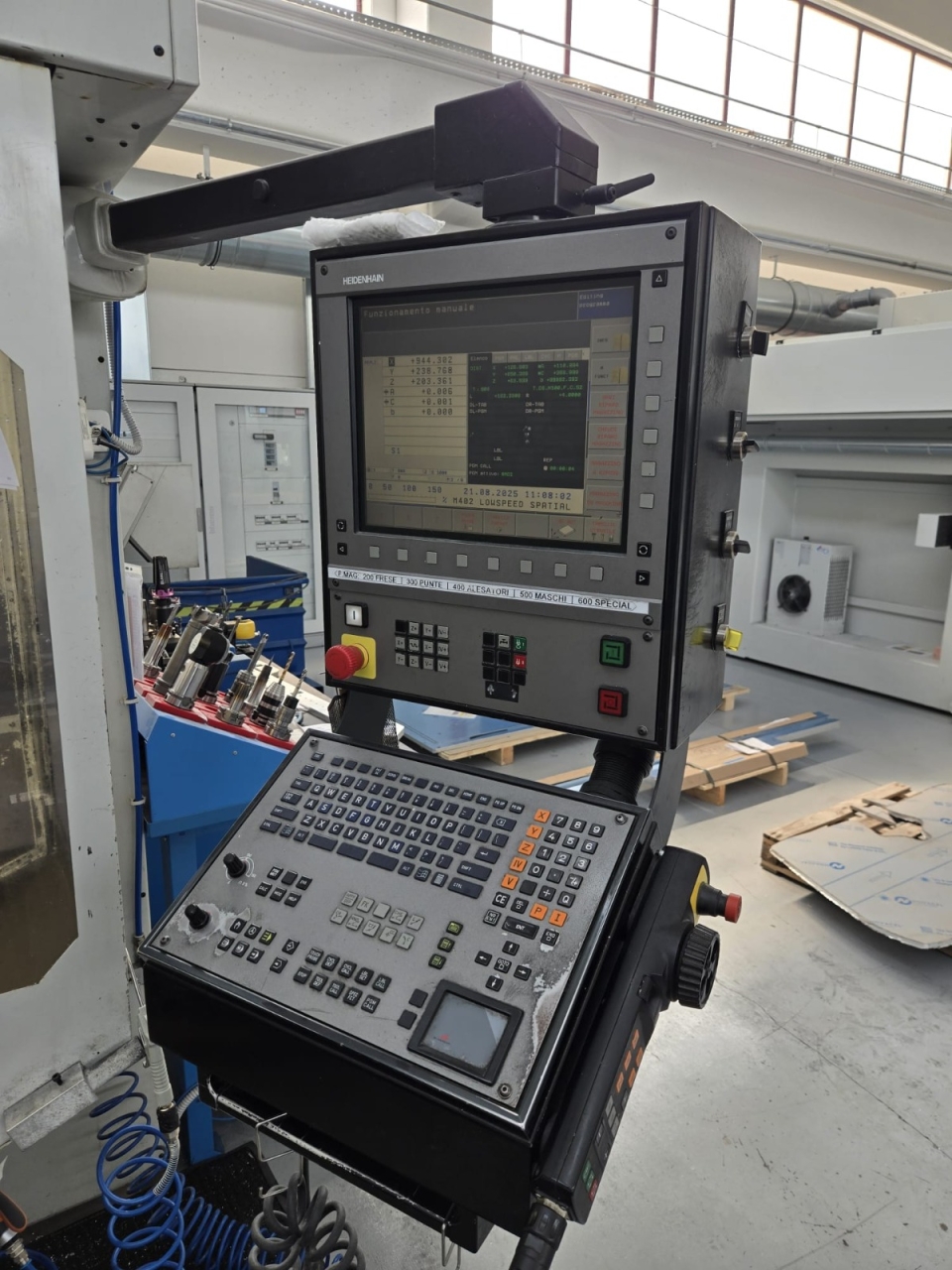

| CNC Model | Heidenhain |
| CNC version | Itnc 530 |
| Spindle Taper toolholders | HSK 63 |
| Power spindle | 30 Kw |
| RPM | 22000 |
| HSC ( high speed cutting ) | yes |
| Number of tools | 30 |
| X-axis travel | 3000 mm |
| Y-axis travel | 1800 mm |
| Z-axis travel | 850 mm |
| Table dimension | 3100 X 1100 mm |
| Guide | Linear guide |
| Head type | Automatic 4th and 5th axis head |
| Additional technical notes for head | Asse B 360° / +-105° Testa con motori Torque |
| Portal/gantry milling machine | Portal milling machine with fixed colums and moving table |
| Cheap conveyor | Hinged Belt |
| Presetting | yes |
| Distance between columns | 1320 mm |
Basic information
| Brand | Famu |
| Model | ACTIVE |
| Construction year | 2008 |
| Code | E9BACB |
| Level of machine tool |
standard
|
Dimensions and weight
| Length | 9700 mm |
| Width | 4500 mm |
| Height | 4800 mm |
| Weight | 27000 Kg |
