Centro Di Lavoro A Montante Mobile Remacontrol Leonard RCL 2.4
Technical specifications

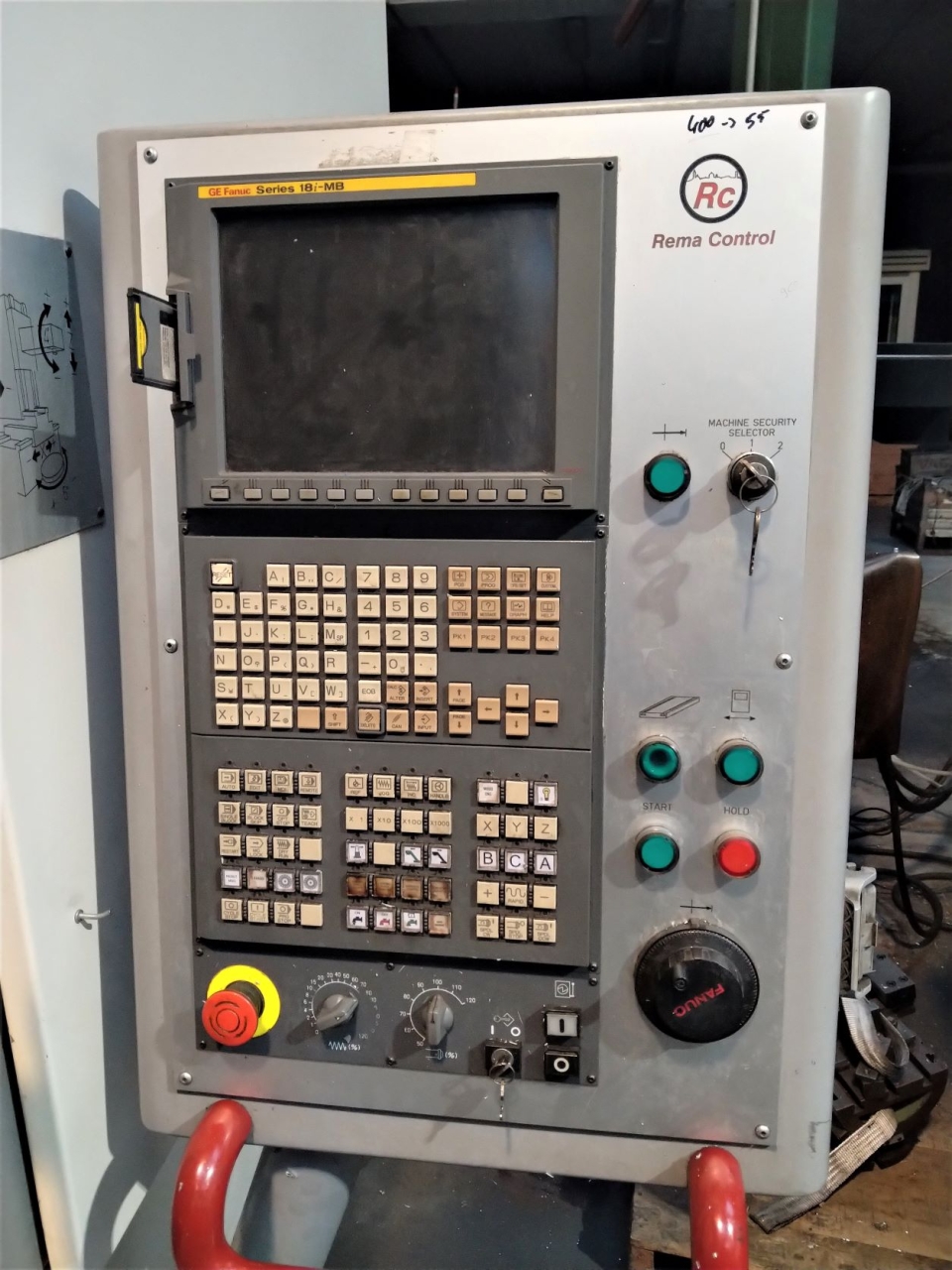

| CNC Model | Fanuc |
| CNC version | 18i - MB |
| Spindle Taper toolholders | iso 40 |
| Power spindle | 18 Kw |
| RPM | 8000 |
| Number of tools | 40 |
| X-axis travel | 2000 mm |
| Y-axis travel | 800 mm |
| Z-axis travel | 800 mm |
| Rapid linear axis feeds X Y Z | 40 m/min |
| Table dimension | 2300 x 820 mm |
| Guide | Linear guide |
| Shuttle operation | yes |

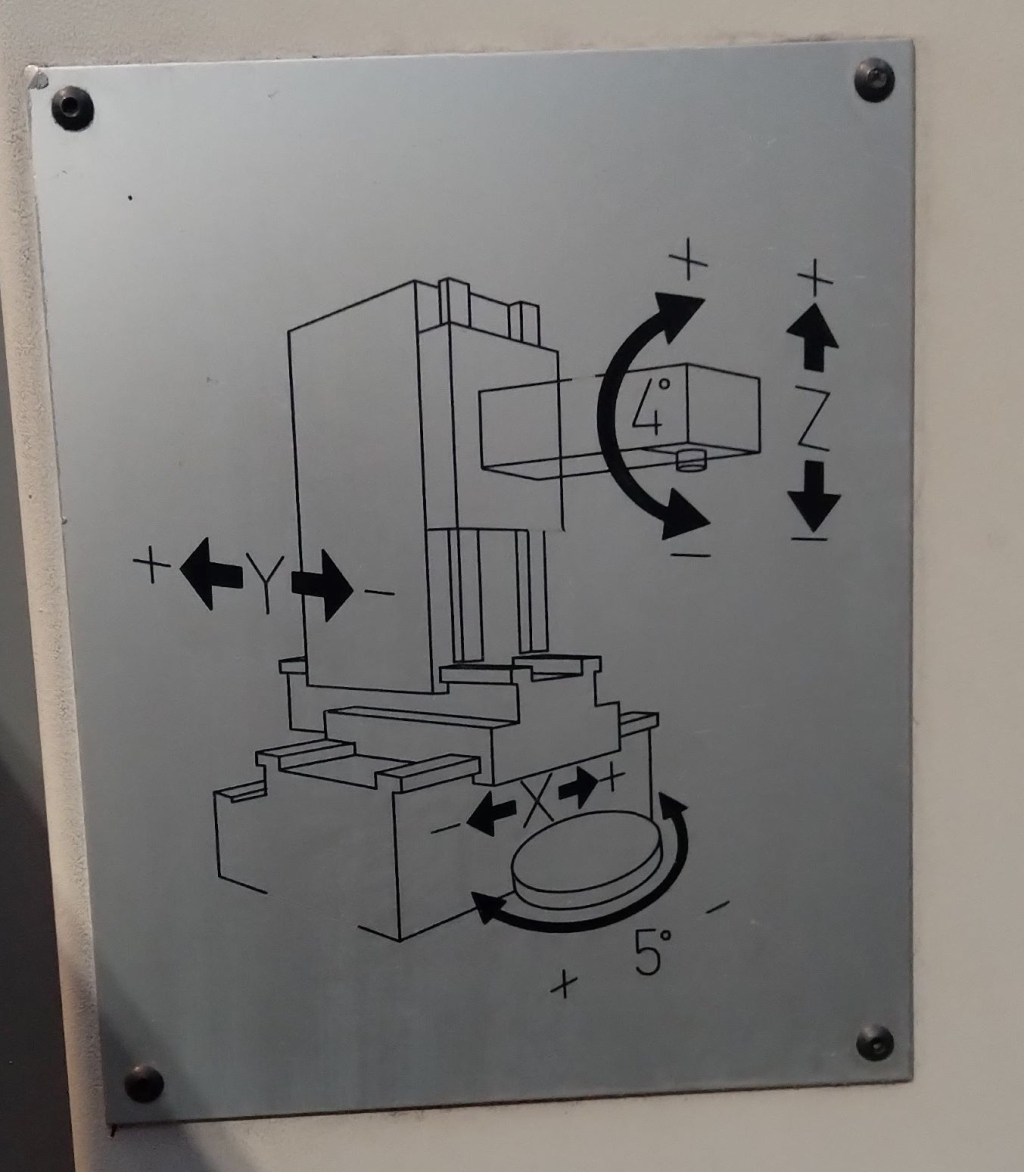

| Head 4th axis | yes |
| Type head 4th axis | continuous |
| Degrees head 4th axis | + - 90° |
| Rotating table | yes |
| Type Rotating table | continuous |
| table dimension | 600 mm |
| Cheap conveyor | Hinged Belt |
Basic information
| Code | 3DFF31 |
| Level of machine tool |
standard
|
| Brand | Remacontrol |
| Model | Leonard RCL 2.4 |
| Construction year | 2006 |
Dimensions and weight
| Length | 6915 mm |
