Centro Di Lavoro Verticale Hardinge XR1000
Technical specifications

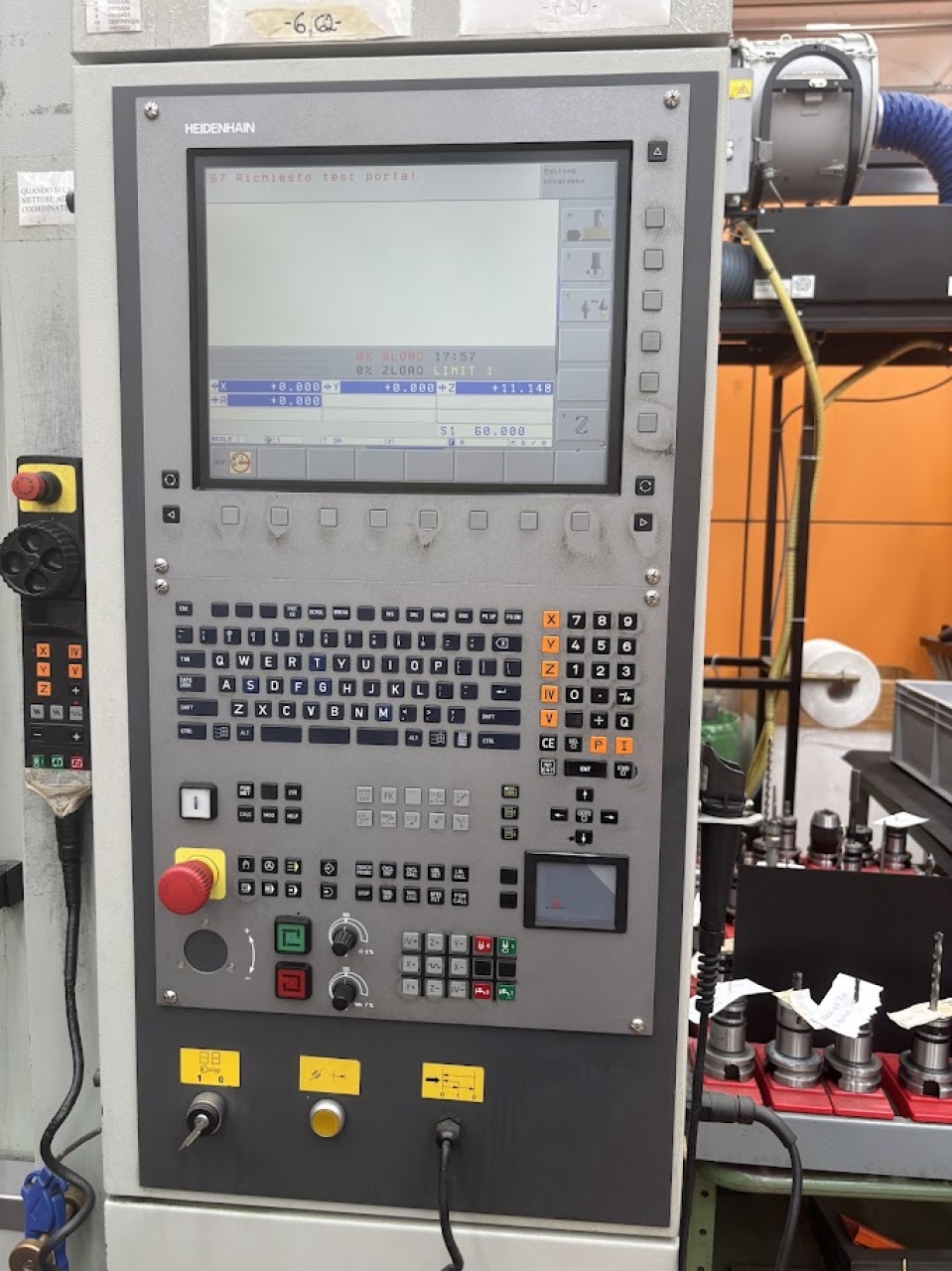

| CNC Model | Heidenhain |
| Spindle Taper toolholders | iso 40 |
| Power spindle | 21 Kw |
| RPM | 12000 |
| Number of tools | 30 |
| X-axis travel | 1020 mm |
| Y-axis travel | 610 mm |
| Z-axis travel | 610 mm |
| Rapid linear axis feeds X Y Z | 43 m/min |

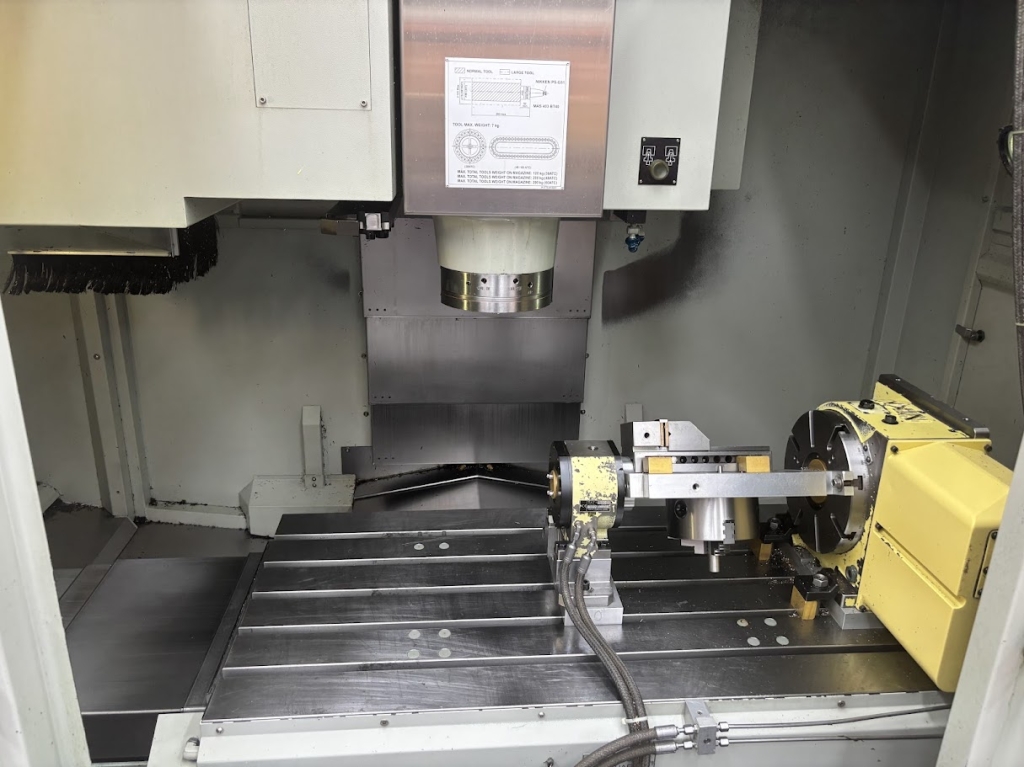

| Table dimension | 1200 x 600 mm |
| Maximum load allowed | 1200 Kg |
| Guide | Linear guide |

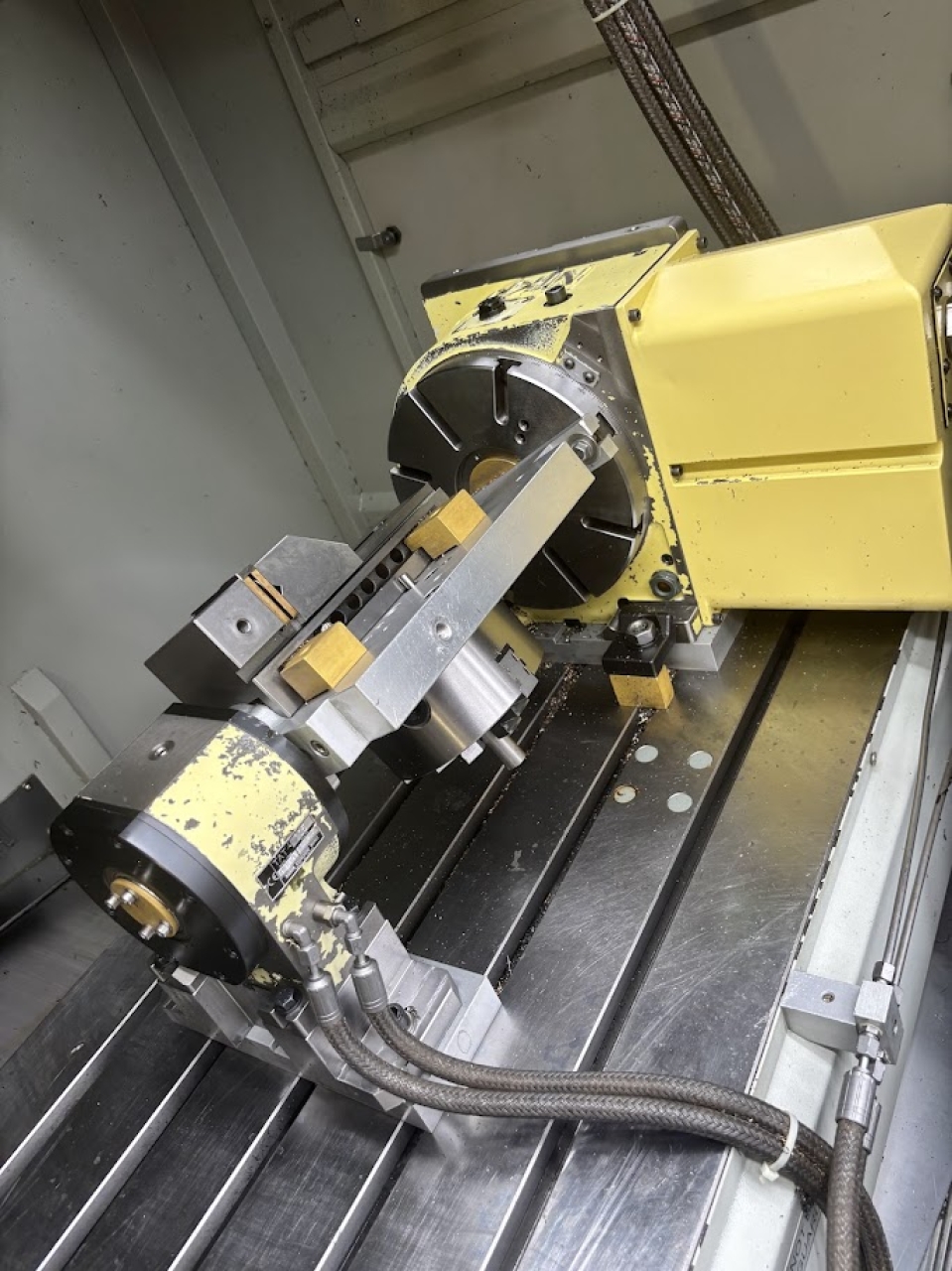

| ROTARY TABLE 4th axis | yes |
| Brand and Model | Nikken CNC260FA |
| Face Plate Diameter | 260 mm |
| Rotation | continuous |
| High coolant pressure | yes |
| Cheap conveyor | Hinged Belt |
Basic information
| Brand | Hardinge |
| Model | XR1000 |
| Construction year | 2010 |
| Code | 68B16F |
| Level of machine tool |
standard
|
Dimensions and weight
| Length | 2528 mm |
| Width | 3000 mm |
| Height | 2921 mm |
| Weight | 7000 Kg |
