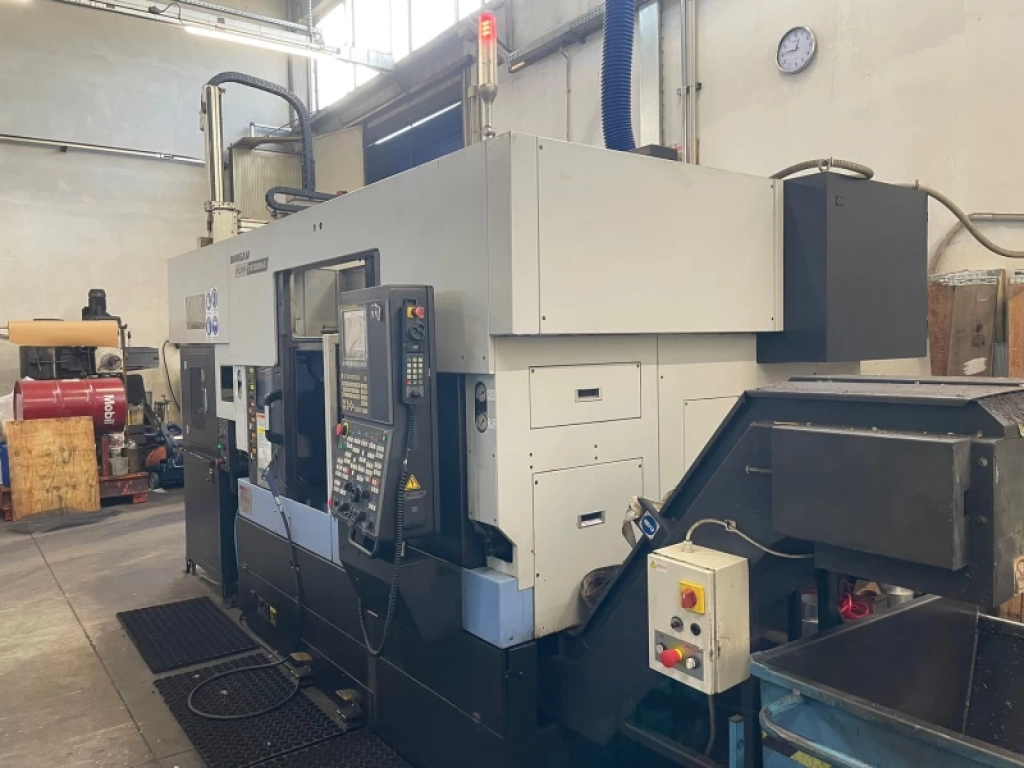

Tornio Bimandrino DOOSAN Puma TW2600M GL
Technical specifications

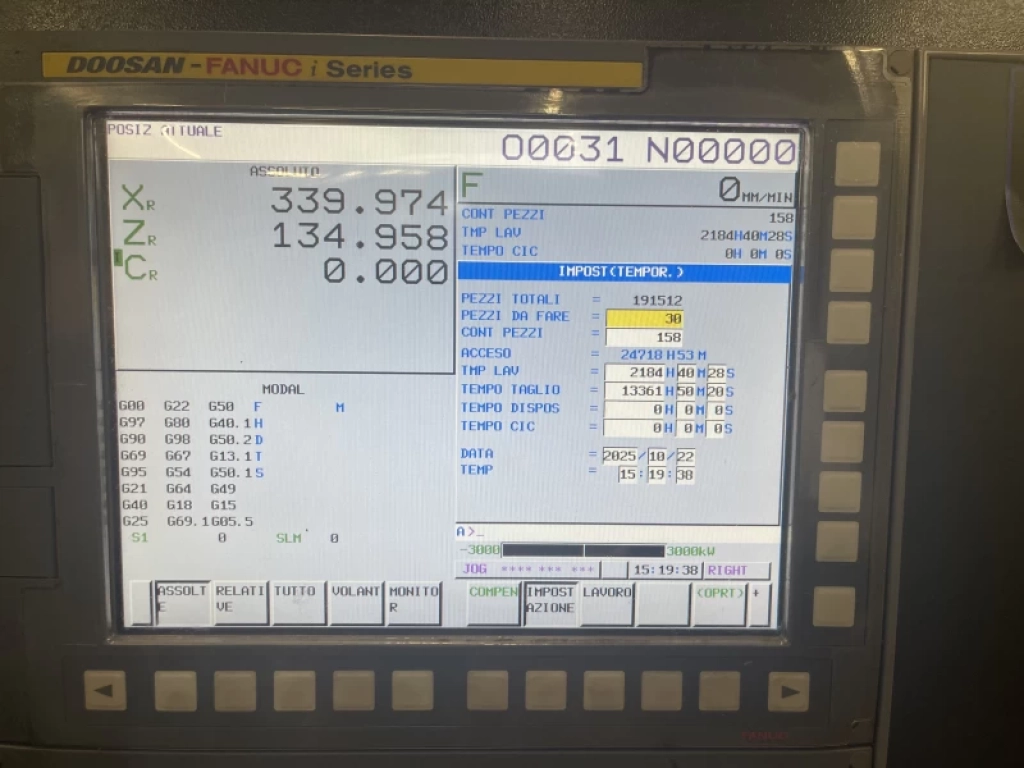

| CNC Model | Fanuc |
| CNC version | i Series |
| Nose spindle | ASA 6 |
| Power spindle | 18,5 Kw |
| Max turning diameter | 360 mm |

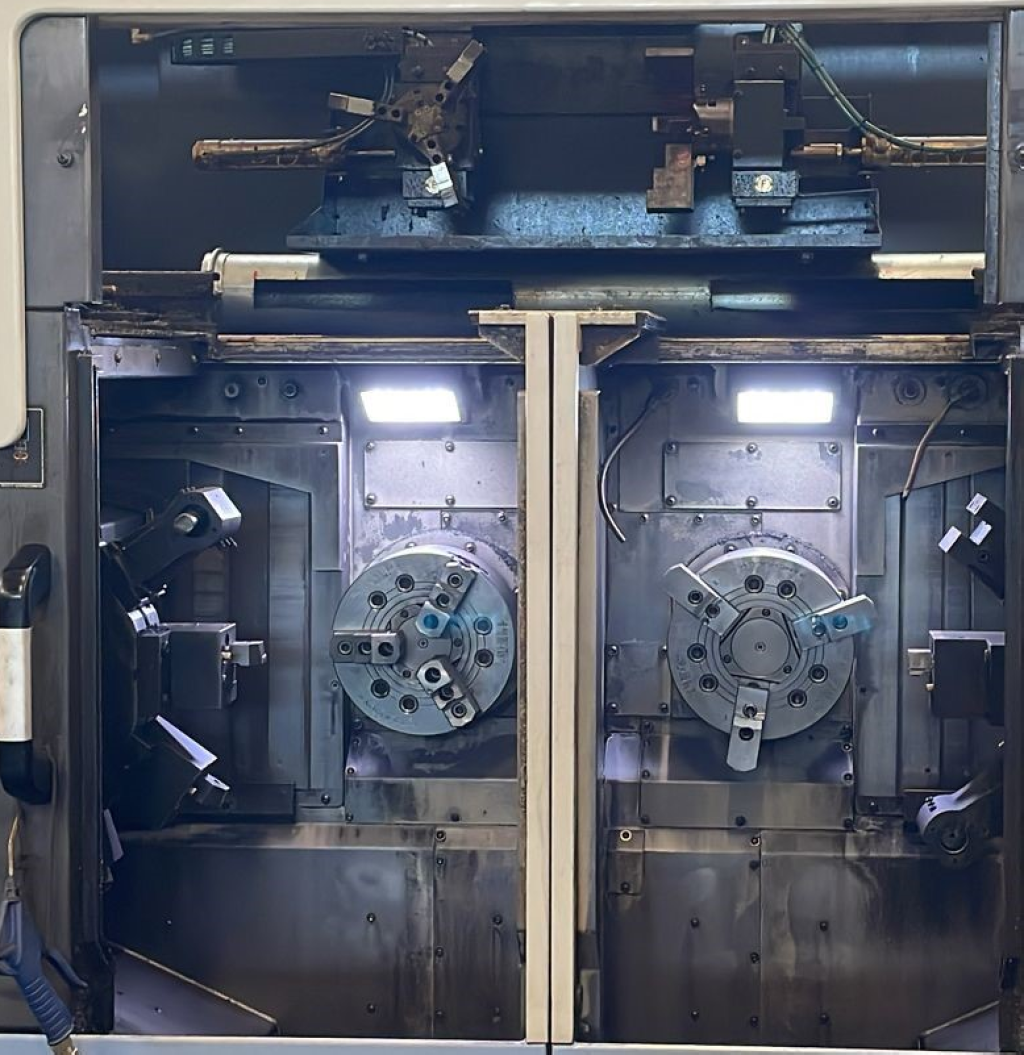

| Spindle chuck diameter | 255 mm |
| Distance between the spindles | 460 mm |
| Bar diameter | 61 mm |
| Max turning lenght | 170 mm |
| Main spindle RPM | 3500 |
| RPM second spimdle | 3500 |
| Number tool posts on the 1th turret | 10 |
| Number of driven tool posts on the 1th turret | 10 |
| Number tool posts on the 2th turret | 10 |
| Number of driven tool posts on the 2th turret | 10 |
| X-axis travel 2th turret | 190 mm |
| Z-axis travel 2th turret | 180 mm |
| Rapid linear axis feeds X Y Z | 24 m/min |

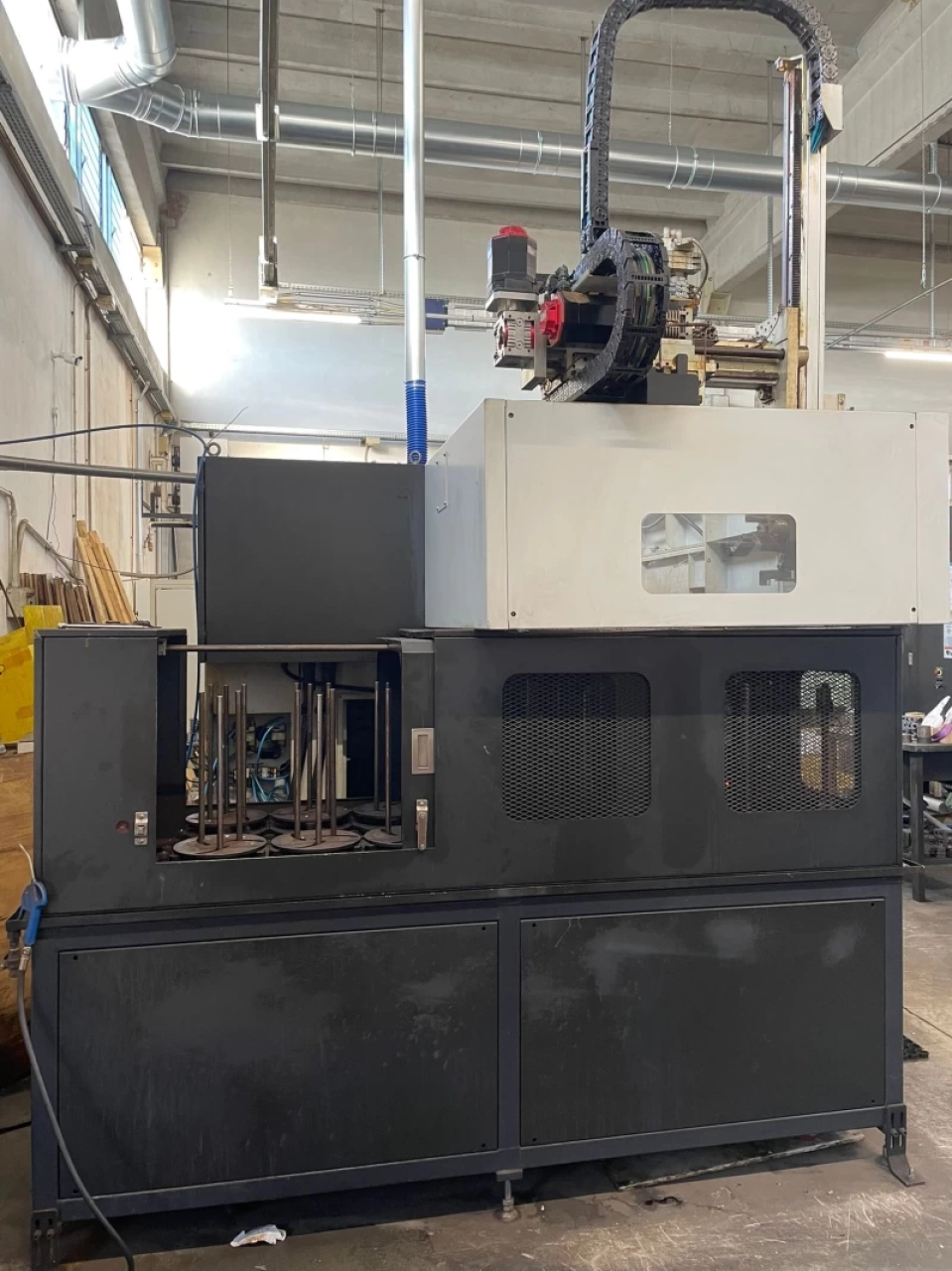

| Gantry loader | yes |
| Cheap conveyor | Hinged Belt |
Basic information
| Brand | Doosan |
| Model | Puma TW2600M GL |
| Construction year | 2017 |
| Code | B62990 |
| Level of machine tool |
standard
|
Machine equipment
Set di portautensili fissi e motorizzatiDimensions and weight
| Length | 2520 mm |
| Width | 2150 mm |
| Height | 2051 mm |
| Weight | 7730 Kg |
