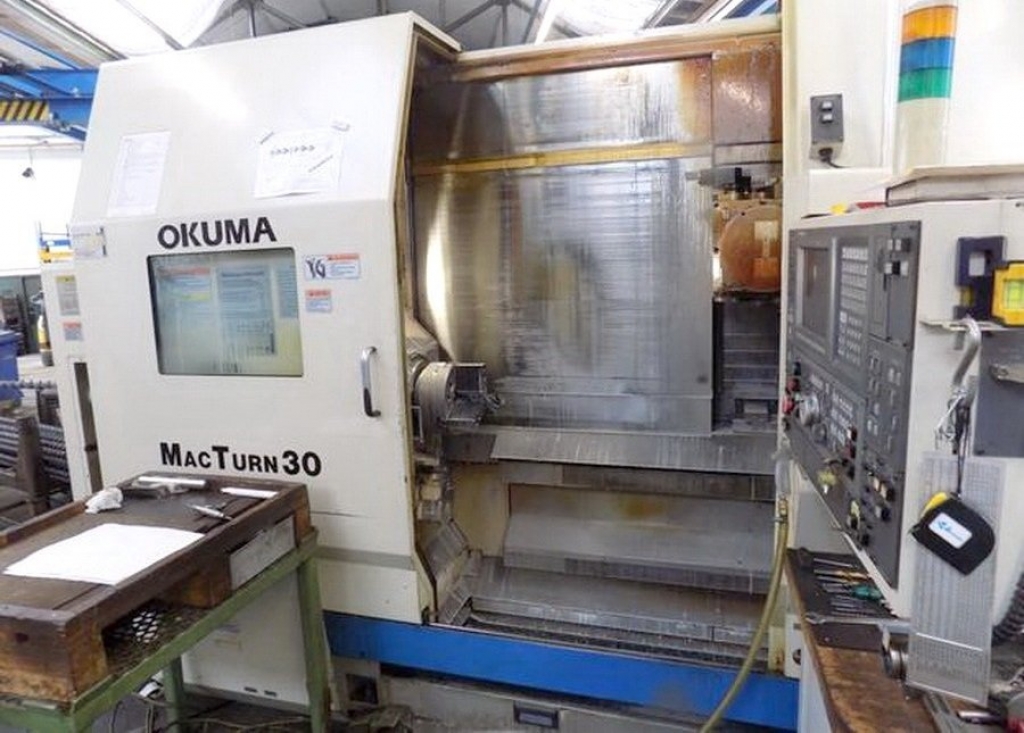

Tornio Multitasking Cnc OKUMA MacTurn 30
Technical specifications

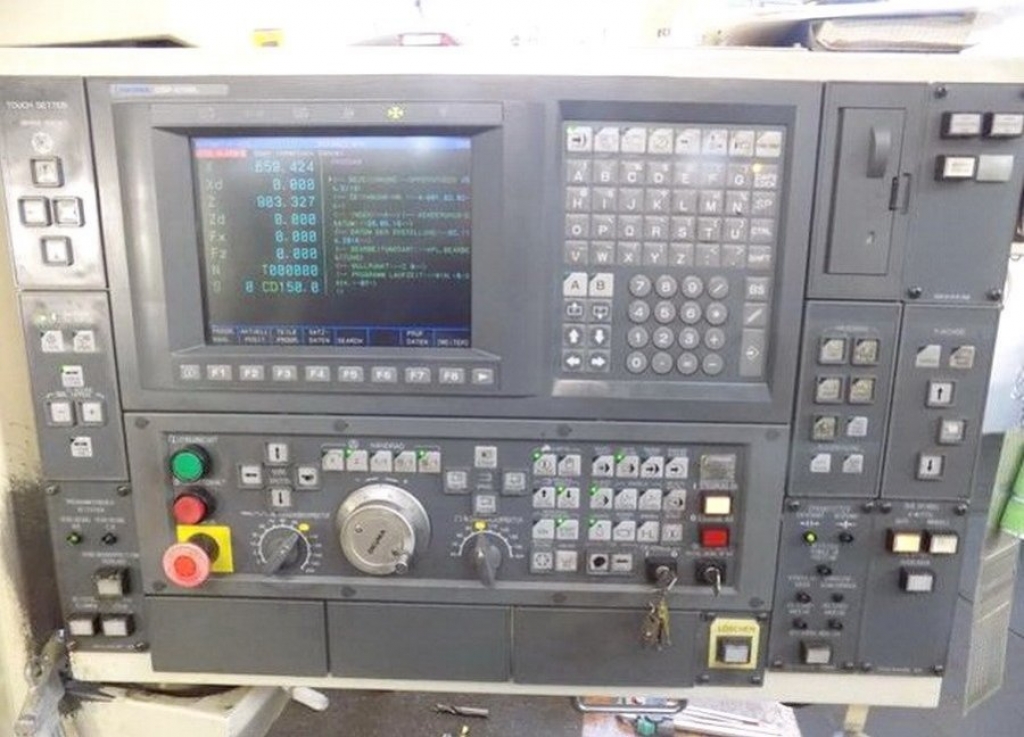

| CNC Model | Okuma OSP |
| CNC version | U100L |
| Nose spindle | ASA 6 |
| Power spindle | 15 Kw |
| Main spindle RPM | 4500 |
| Max turning diameter | 500 mm |
| Bar diameter | 50 mm |
| Max turning lenght | 1000 mm |

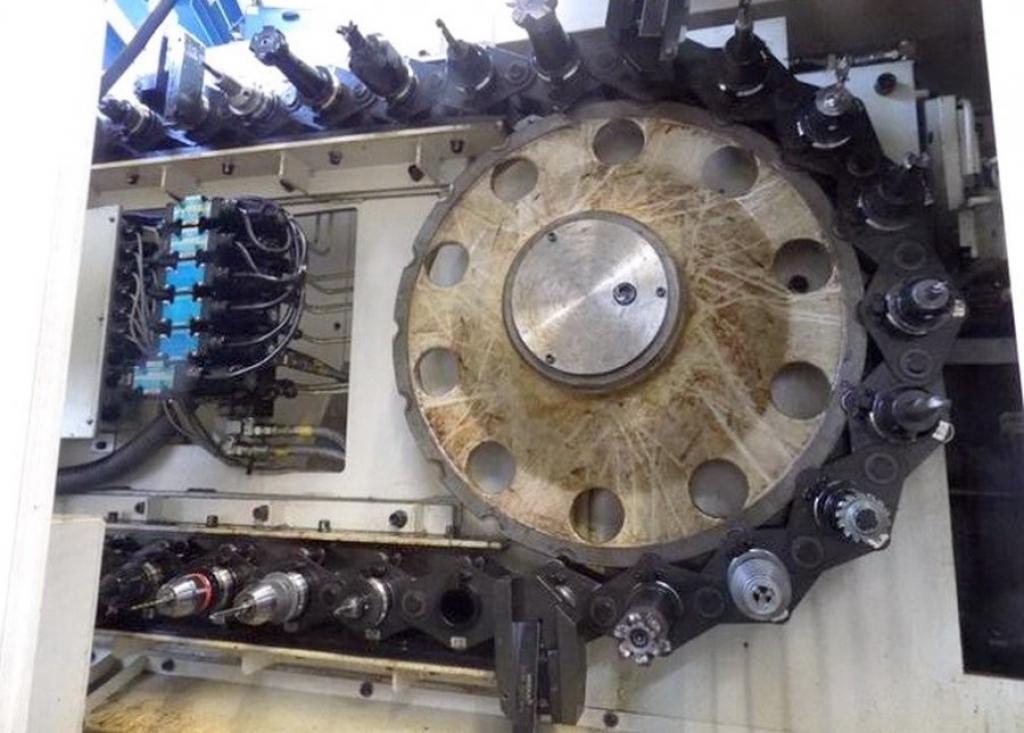

| Number of tools | 40 |
| Spindle Taper toolholders | BT 40 |
| Power spindle | 6,8 Kw |
| RPM | 6000 |
| X-axis travel | 430 mm |
| Y-axis travel | 190 mm |
| Z-axis travel | 1090 mm |
| High coolant pressure | yes |
| Tailstock | yes |
| Quill tailstock travel | 120 mm |
| Cheap conveyor | Hinged Belt |
| Presetting | yes |
Basic information
| Code | 2E2FD1 |
| Level of machine tool |
standard
|
| Brand | Okuma |
| Model | MacTurn 30 |
| Construction year | 1999 |
Complete data sheet
diametro max. utensile 110mm
lunghezza max. utensile 300mm
peso massimo dell'utensile 10,0kgDimensions and weight
| Length | 5000 mm |
| Width | 33500 mm |
| Height | 2500 mm |
| Weight | 10800 Kg |
