Tornio Motorizzato CNC Daewoo Puma 400 LMB
Technical specifications
| CNC Model | Fanuc |
| CNC version | 32i- Model A |
| Main spindle nose | ASA 11 |
| Power main spindle | 30 Kw |

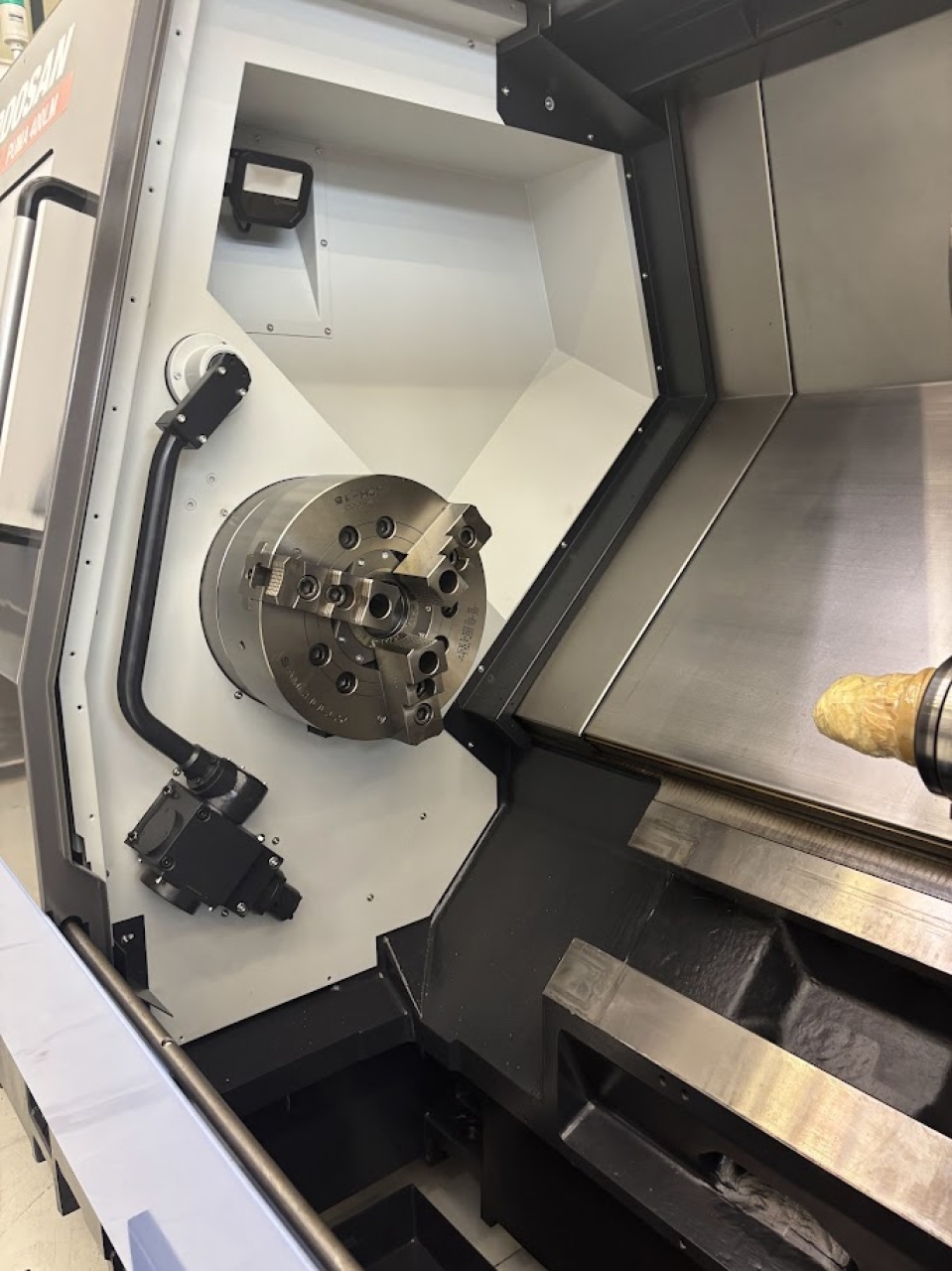

| Main spindle chuck diameter | 380 mm |
| Main spindle bar diameter | 117 mm |
| Max turning diameter | 560 mm |
| Max turning lenght | 2155 mm |
| Main spindle RPM | 2000 |
| Gear box | yes |
| Number of speed | 2 |

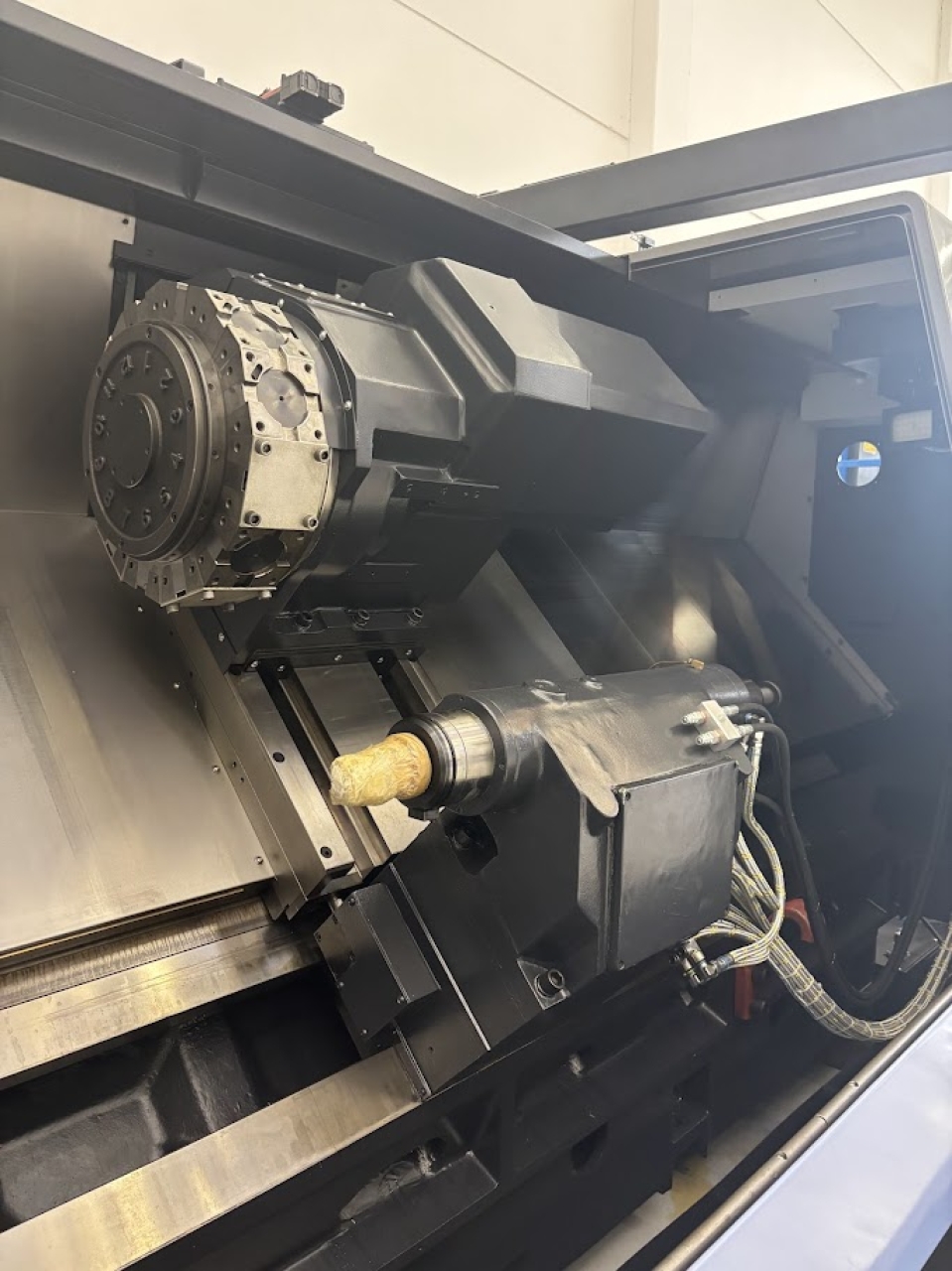

| Number of turrets | 1 |
| Number tool posts on the 1th turret | 12 |
| Number of driven tool posts on the 1th turret | 12 |
| Tool holder type 1th turret | BMT 75 |
| X-axis travel 1th turret | 357 mm |
| Z-axis travel 1th turret | 2155 mm |
| Rapid linear axis feeds X Y Z | 20 m/min |

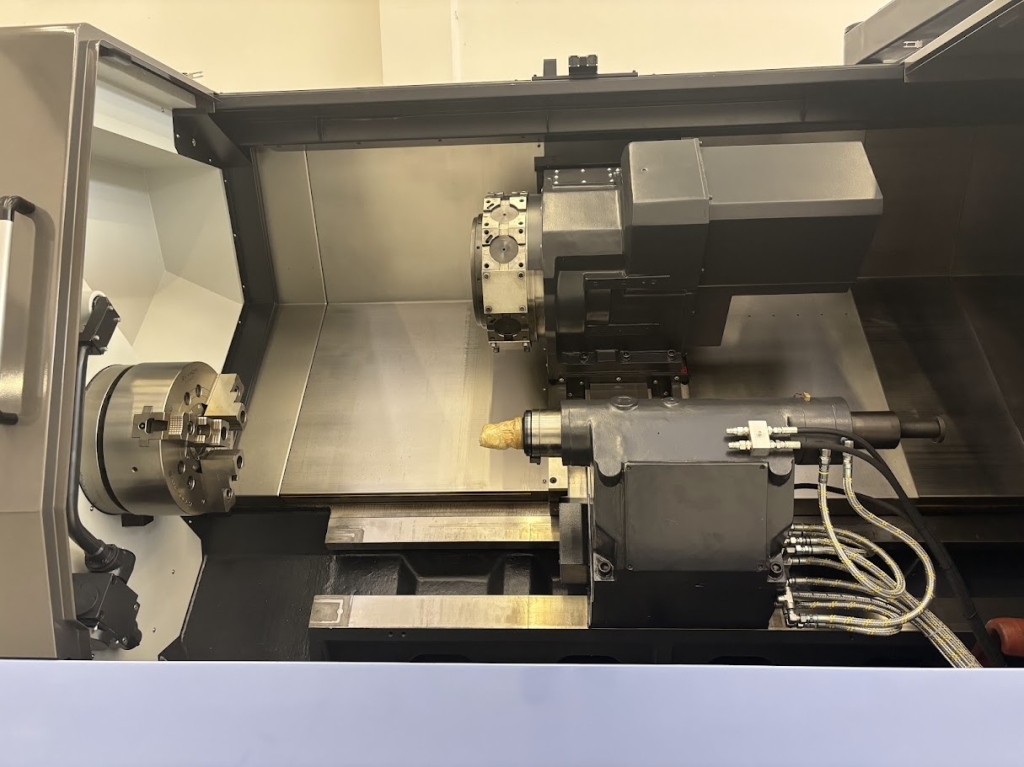

| Tailstock | yes |
| Cheap conveyor | Hinged Belt |
| Presetting | yes |
| Self centering steady rest | yes |
| Brand and Model self centering steady rest | morari MG 1400 |
| Min diameter - Max diameter | 50 - 450 mm |
Basic information
| Code | 67E69E |
| Level of machine tool |
IB Product
|
| Brand | Daewoo |
| Model | Puma 400 LMB |
| Construction year | 2012 |
| Working hours | 1552 |
Machine equipment
la macchina è dotata di due autocentranti aggiuntivi che si possono montare al posto della contropunta
Set di portautensili fissi e motorizzati
La lunetta Morari non è mai stata usataDimensions and weight
| Length | 5702 mm |
| Width | 2440 mm |
| Height | 2292 mm |
| Weight | 11200 Kg |
