Alesatrice MICROCUT Buffalo HBM-04
Technical specifications

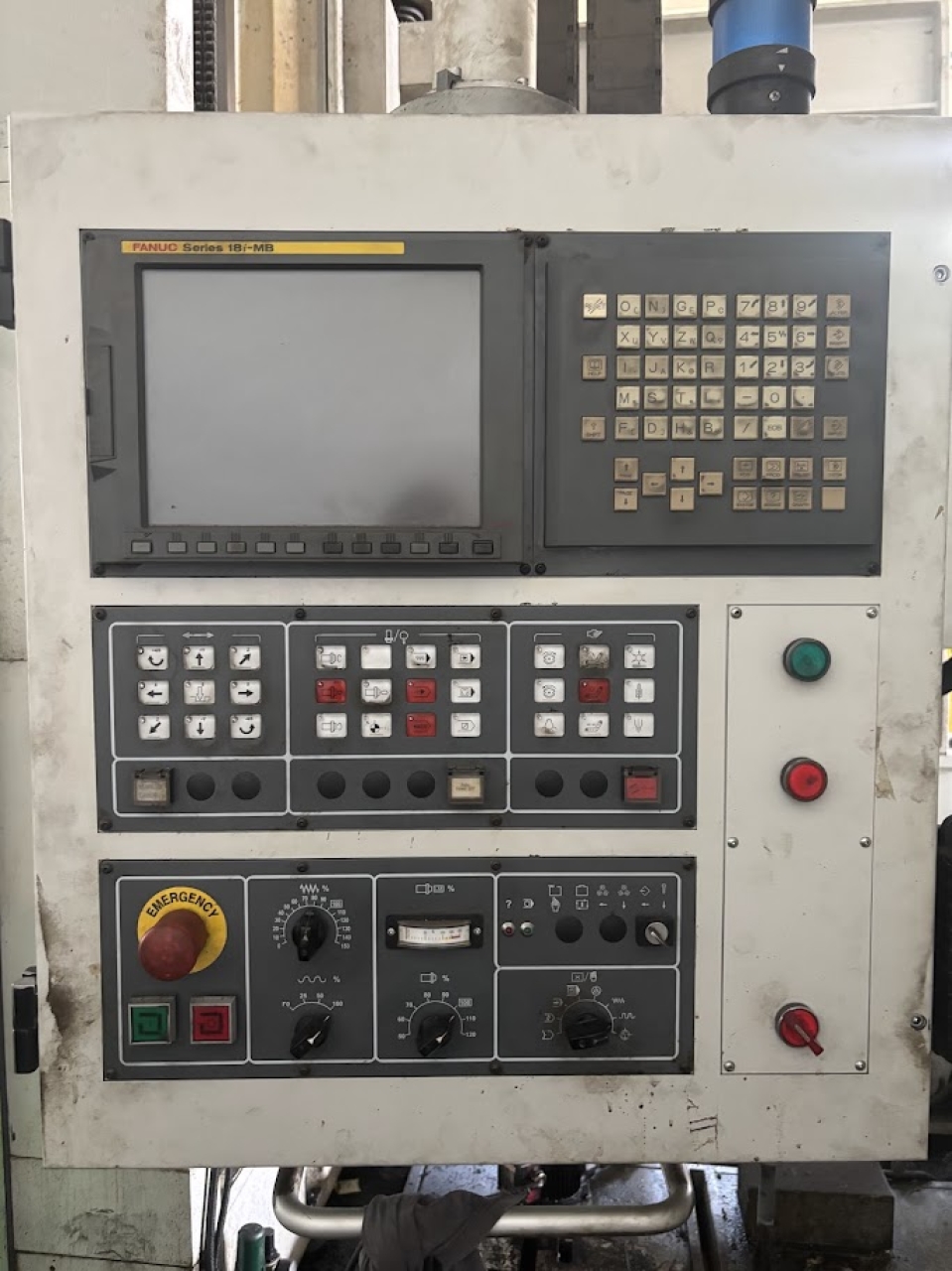

| CNC Model | Fanuc |
| CNC version | 18i-MB |
| Spindle Taper toolholders | iso 50 |
| Power spindle | 18,5 Kw |
| RPM | 3000 |
| Number of tools | 60 |
| X-axis travel | 2200 mm |
| Y-axis travel | 1600 mm |
| Z-axis travel | 1600 mm |
| Rapid linear axis feeds X Y Z | 12 m/min |
| Guide | Slideways |
| diameter boring spindle | 110 mm |
| Live Boring Spindle Travel | 550 mm |

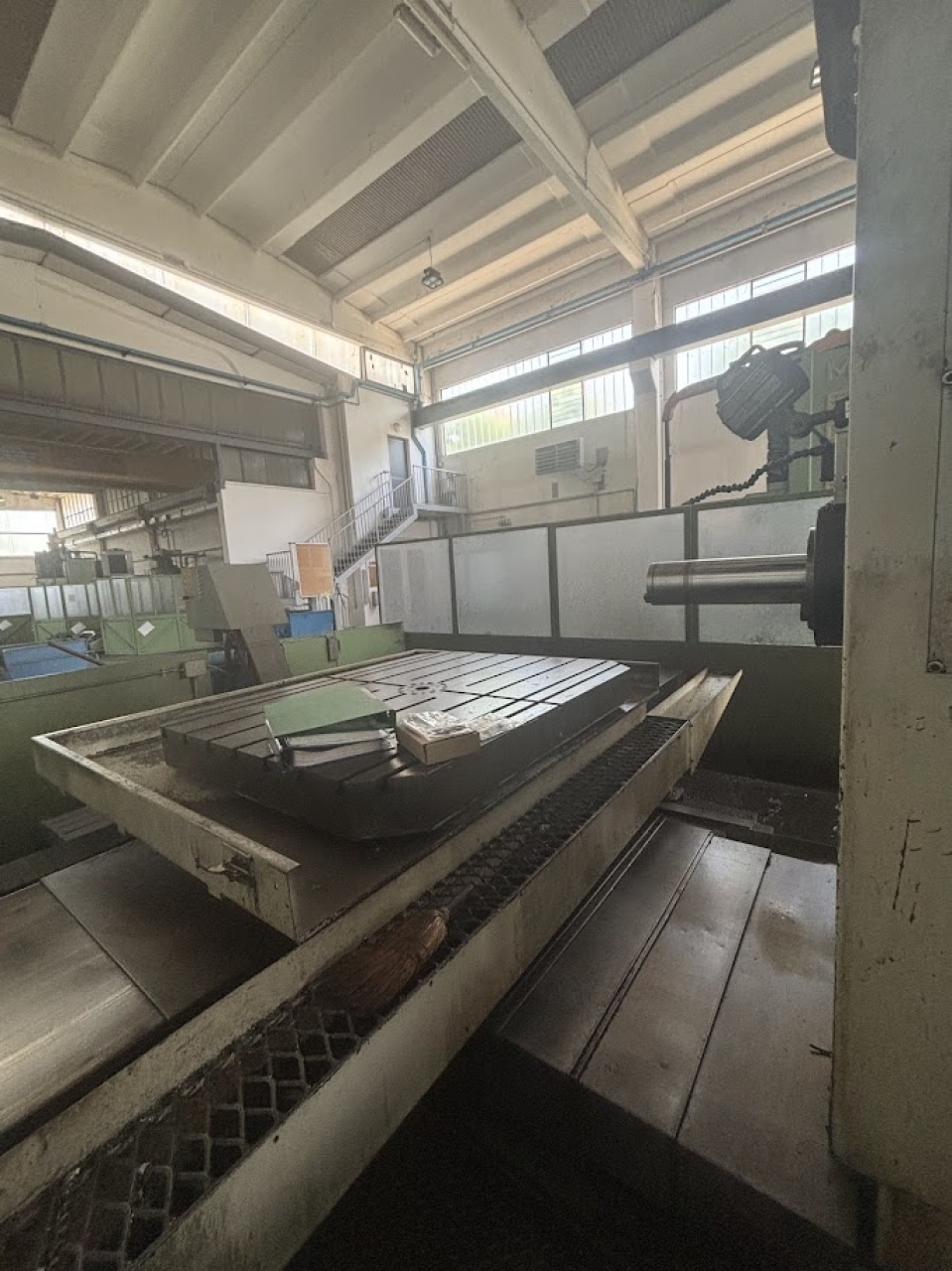

| Rotating table | yes |
| Type Rotating table | indexed |
| Degrees Rotating table | 1 |
| table dimension | 1500 x 1250 mm |
| Maximum load allowed | 5000 Kg |
| High coolant pressure | yes |

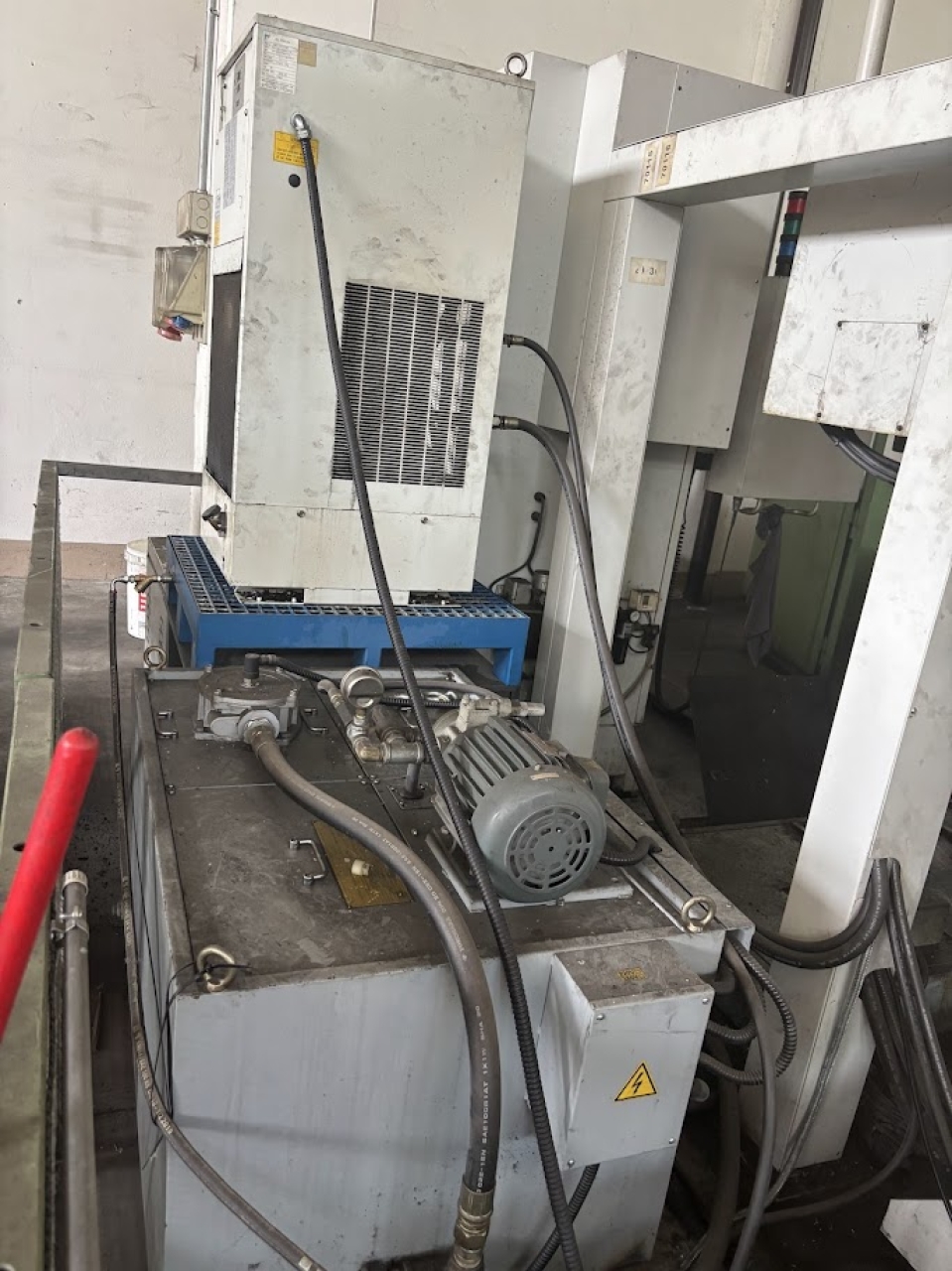

| System with external tank with filter | yes |
| Boring machine type | Cross - table type |
Basic information
| Code | 3F391F |
| Level of machine tool |
standard
|
| Brand | Microcut |
| Model | MICROCUT Buffalo HBM-04 |
| Construction year | 2008 |
Machine equipment
Testa manuale per lavorazioni in pianoDimensions and weight
| Length | 8500 mm |
| Width | 5500 mm |
| Height | 4200 mm |
