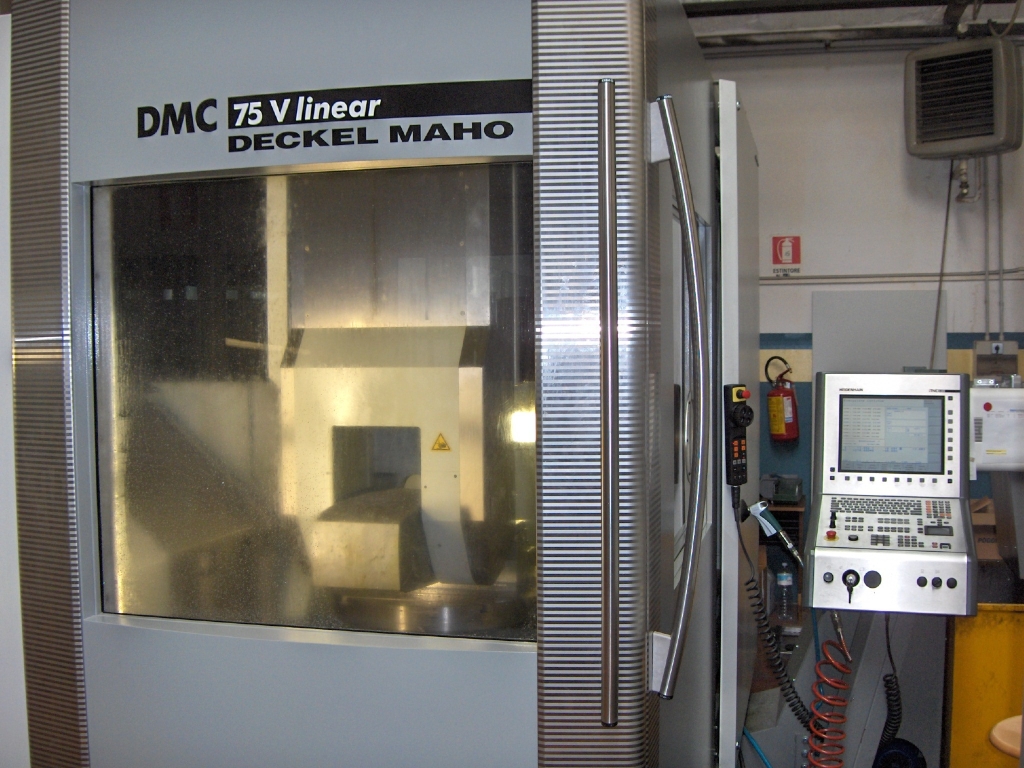

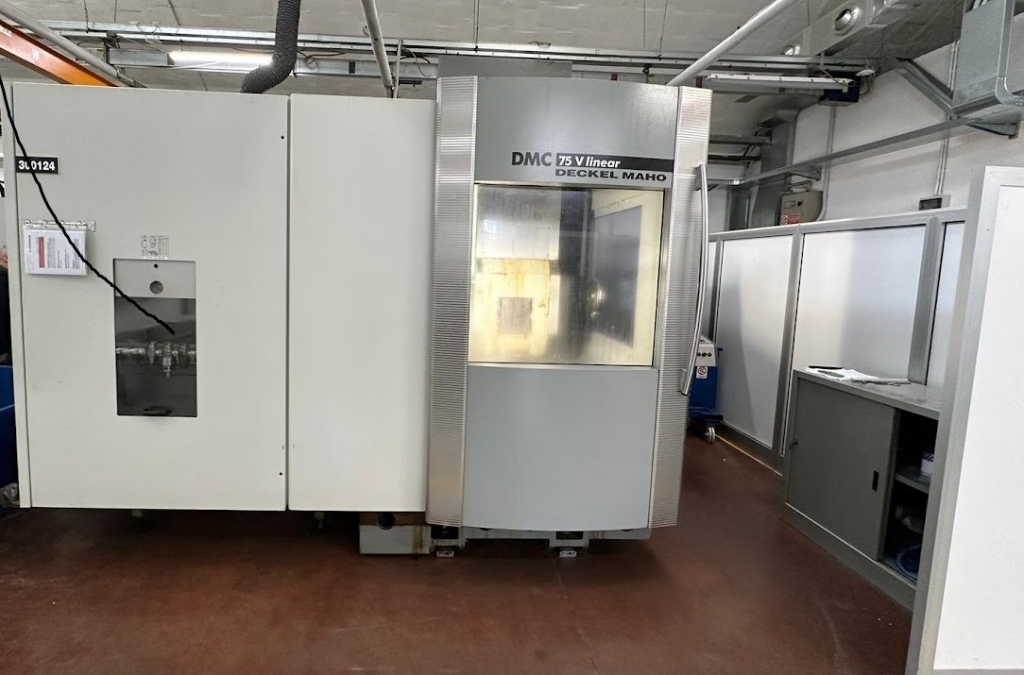

Centro Di Lavoro Dmg DMC 75 Linear
Technical specifications

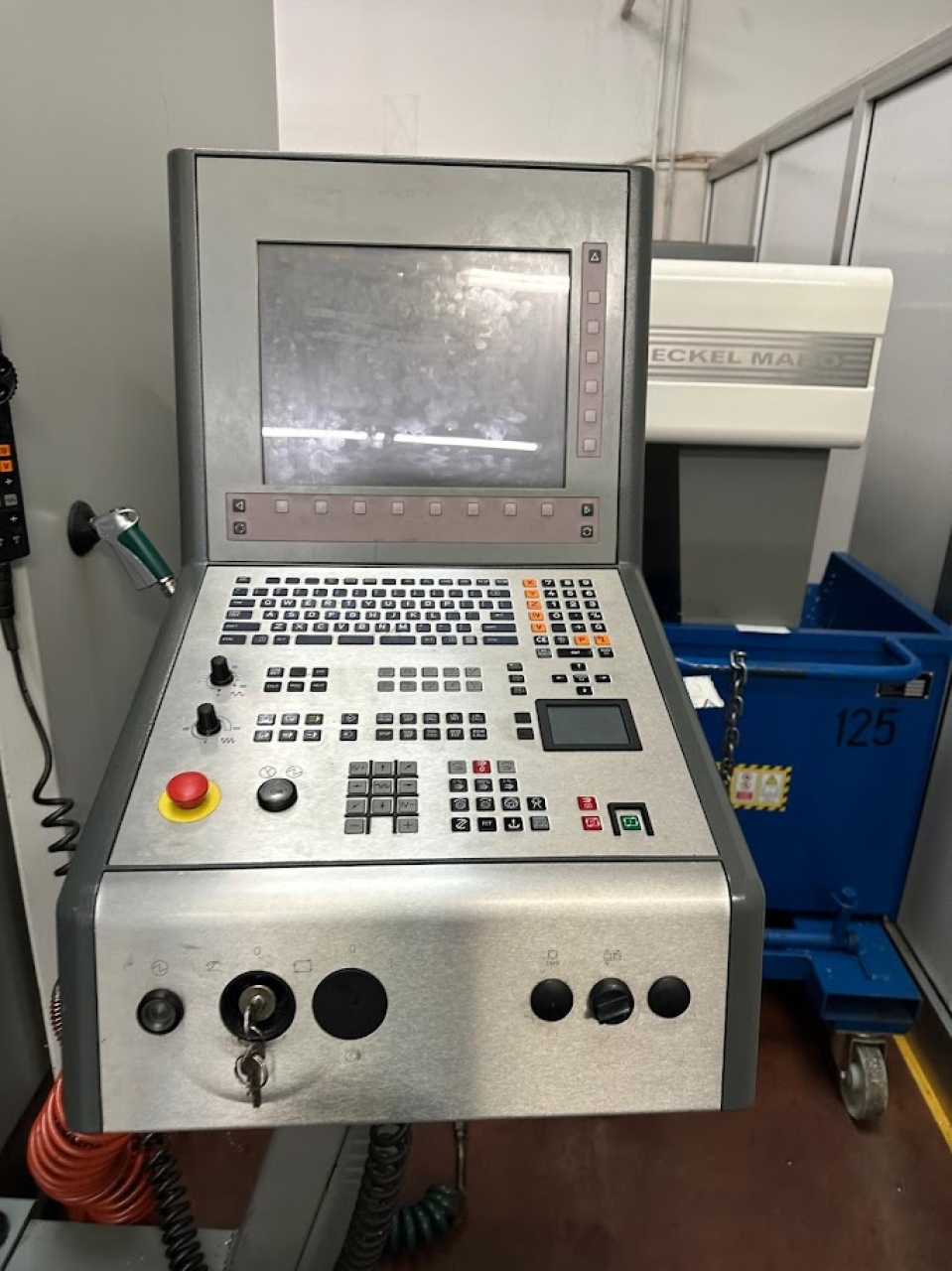

| CNC Model | Heidenhain |
| CNC version | iTNC 530 |
| Spindle Taper toolholders | HSK 63 |
| Power spindle | 35 Kw |
| RPM | 18000 |

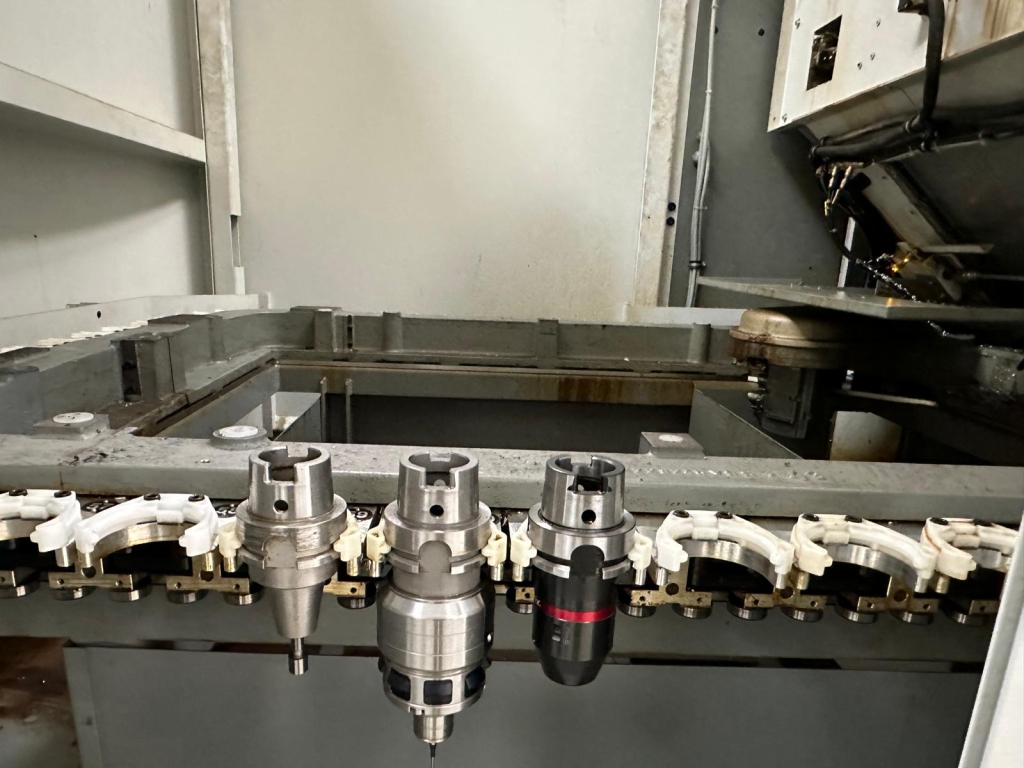

| Number of tools | 60 |
| X-axis travel | 885 mm |
| Y-axis travel | 600 mm |
| Z-axis travel | 600 mm |
| Rapid linear axis feeds X Y Z | 90 m/min |
| Guide | Linear guide |

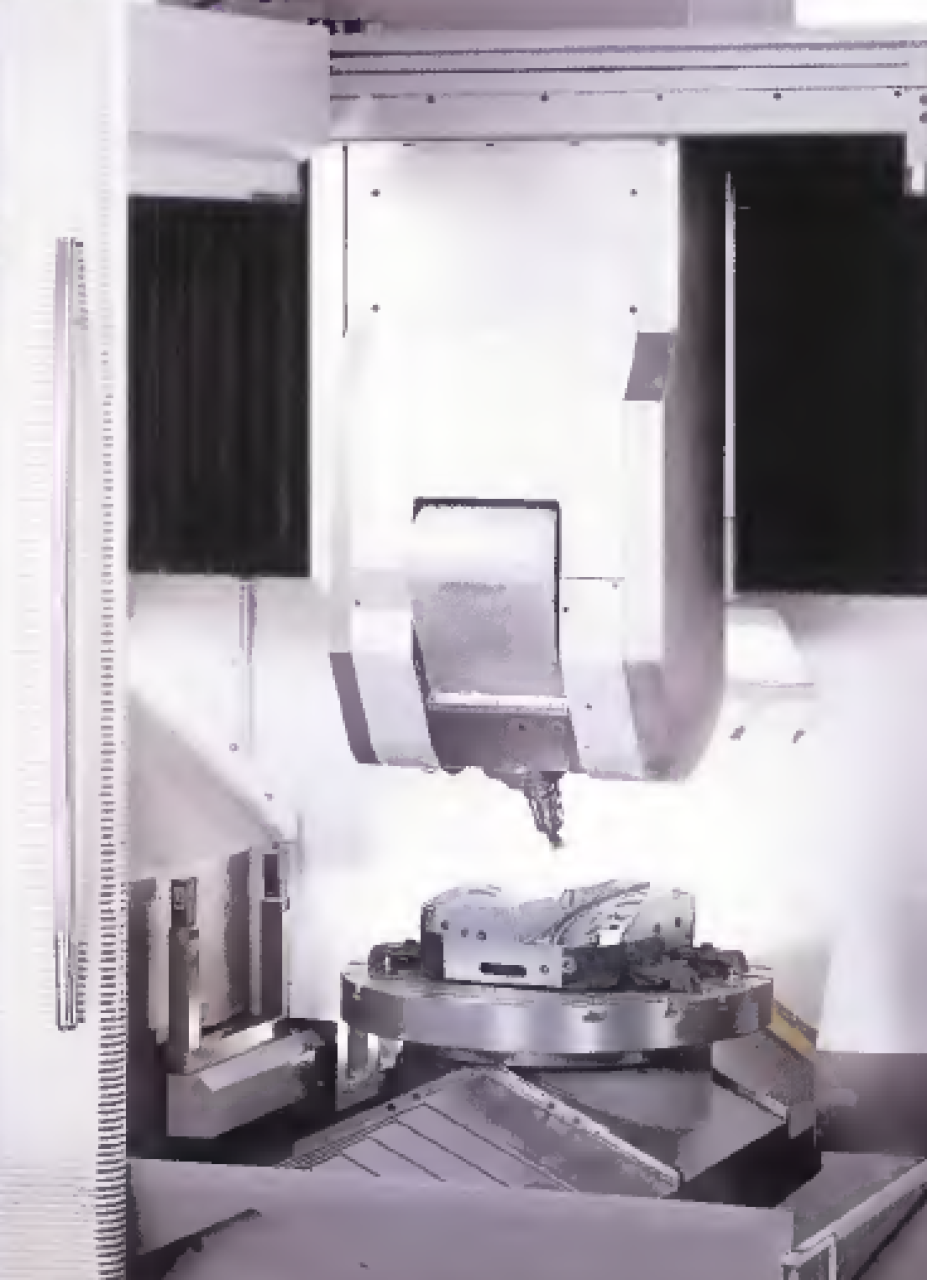

| Head 4th axis | yes |
| Type head 4th axis | continuous |
| Degrees head 4th axis | -10° +110° |
| Rotating table | yes |
| Type Rotating table | continuous |
| table dimension | 750 mm |
| Maximum load allowed | 600 Kg |
| High coolant pressure | yes |
| Pressure value | 50 bar |
Basic information
| Code | 733781 |
| Level of machine tool |
IB Product
|
| Brand | Dmg |
| Model | DMC 75 Linear |
| Construction year | 2006 |
Dimensions and weight
| Length | 3235 mm |
| Width | 2610 mm |
| Height | 3150 mm |
