Centro Di Lavoro Hermle C600 U
Technical specifications

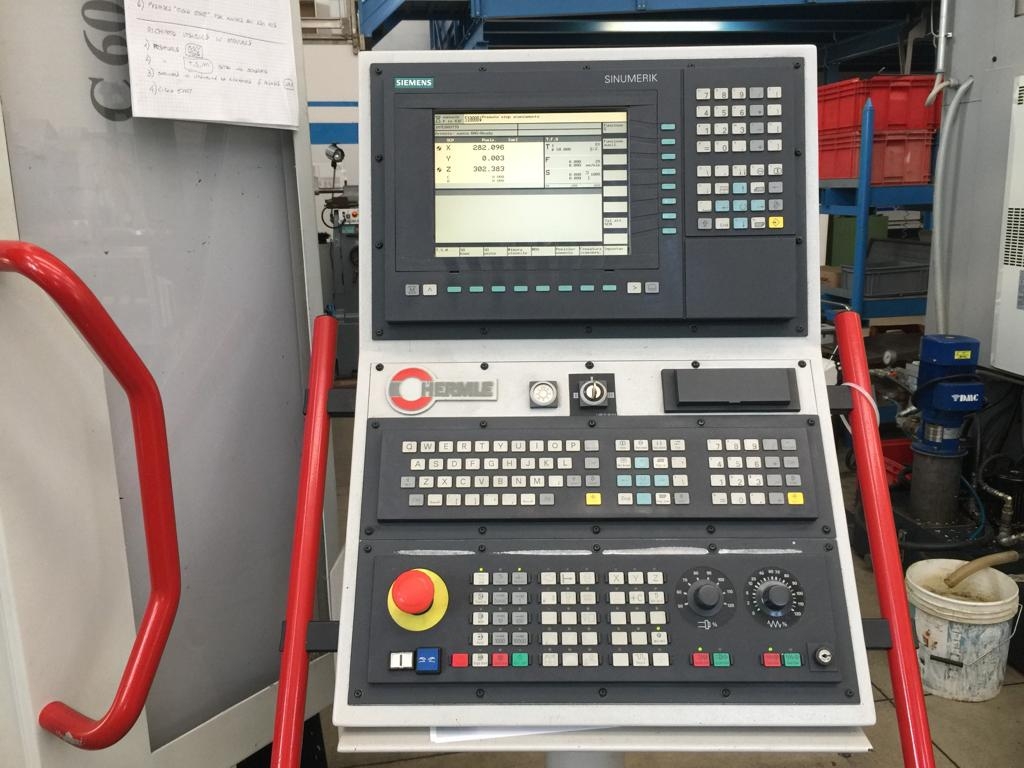

| CNC Model | Siemens |
| CNC version | 840D |
| Spindle Taper toolholders | iso 40 |
| Power spindle | 12 Kw |
| RPM | 15000 |
| Number of tools | 30 |
| X-axis travel | 600 mm |
| Y-axis travel | 450 mm |
| Z-axis travel | 450 mm |
| Roto-tilting table | yes |
| Type Roto-tilting table | continuous |
| table dimension | 280 mm |
| Maximum load allowed | 200 Kg |
| Cheap conveyor | Hinged Belt |
Basic information
| Code | 7A3143 |
| Level of machine tool |
standard
|
| Brand | Hermle |
| Model | C600 U |
| Construction year | 2004 |
Machine equipment
Scheda ethernetDimensions and weight
| Length | 4300 mm |
| Width | 3300 mm |
| Height | 2430 mm |
| Weight | 6800 Kg |
