Tornio Da Barra Biglia 620 YS
Technical specifications

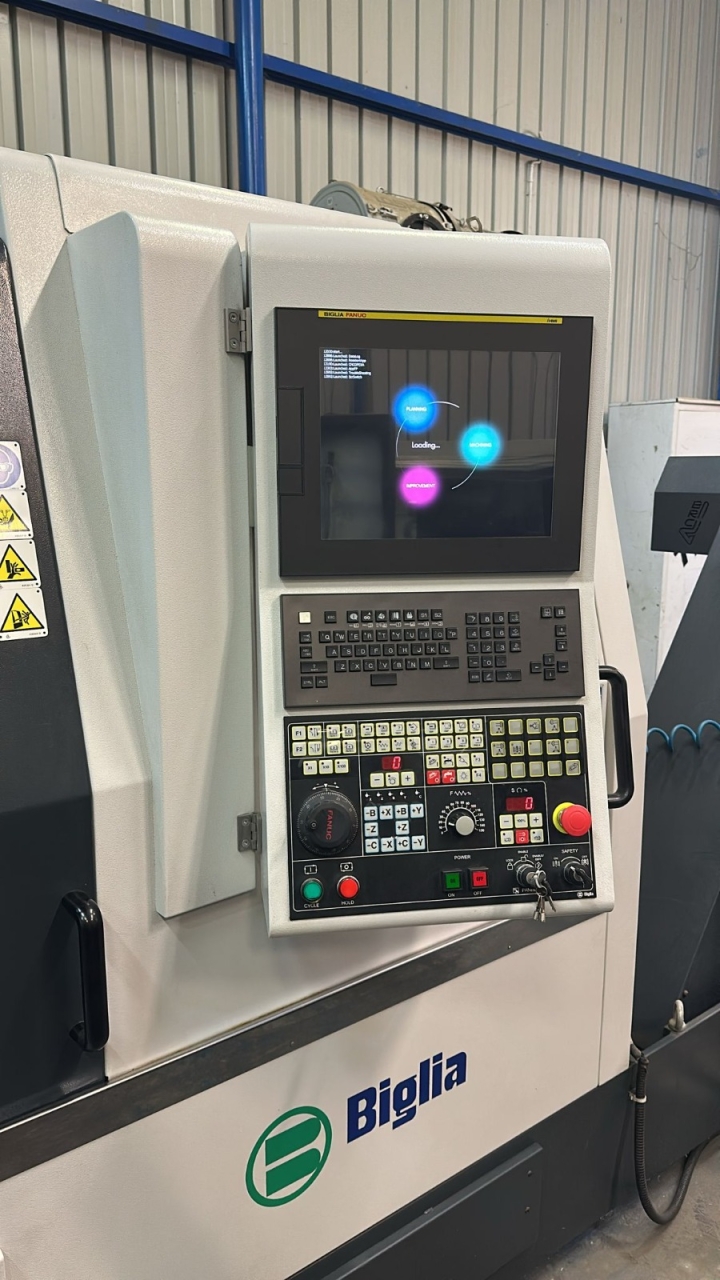

| CNC Model | Fanuc |
| CNC version | i-HMI |

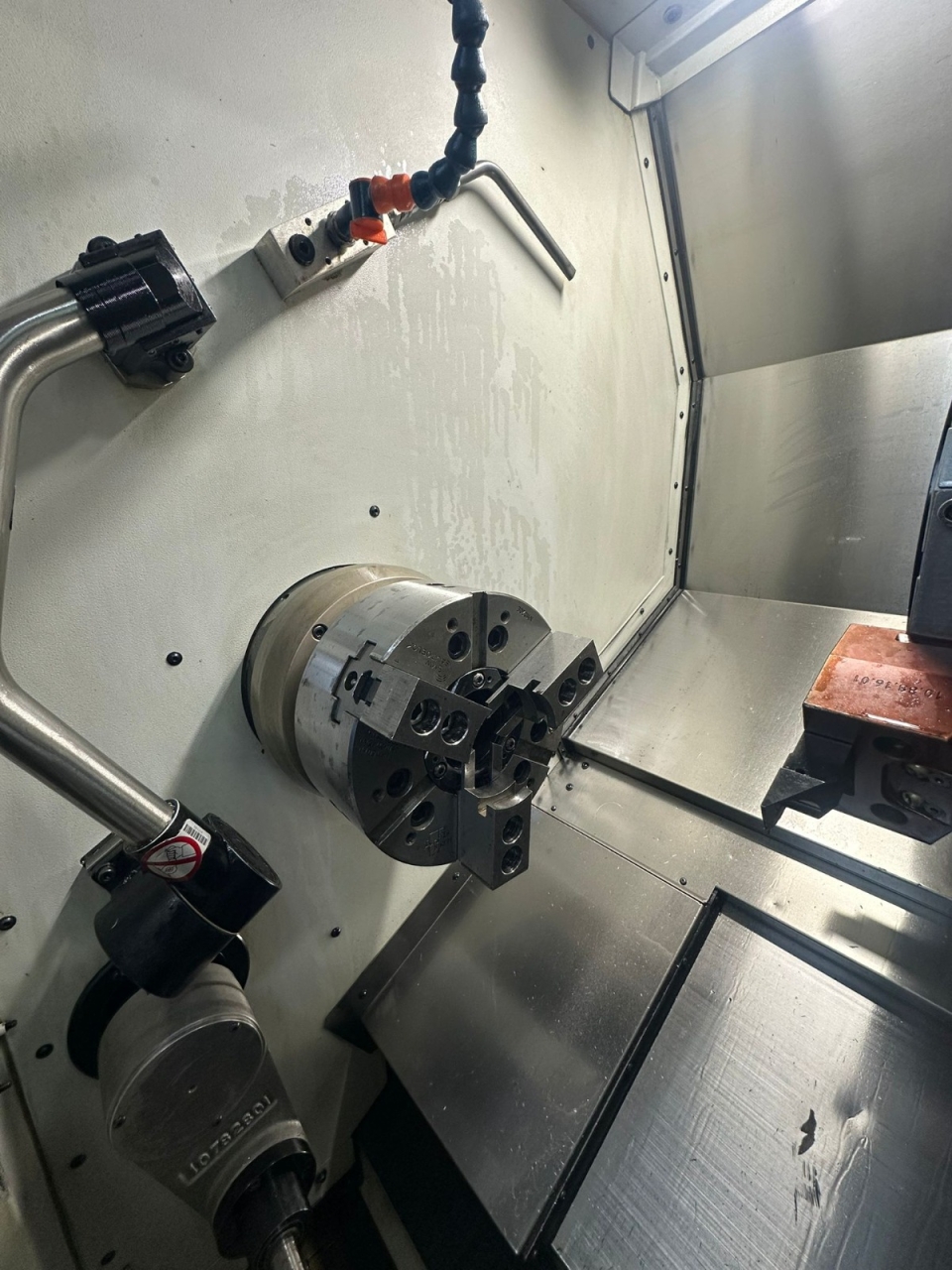

| Main spindle nose | ASA 6 |
| Power main spindle | 30 Kw |
| Main spindle chuck diameter | 250 mm |
| Main spindle bar diameter | 70 mm |
| Max turning diameter | 360 mm |
| Max turning lenght | 620 mm |
| Main spindle RPM | 4500 |

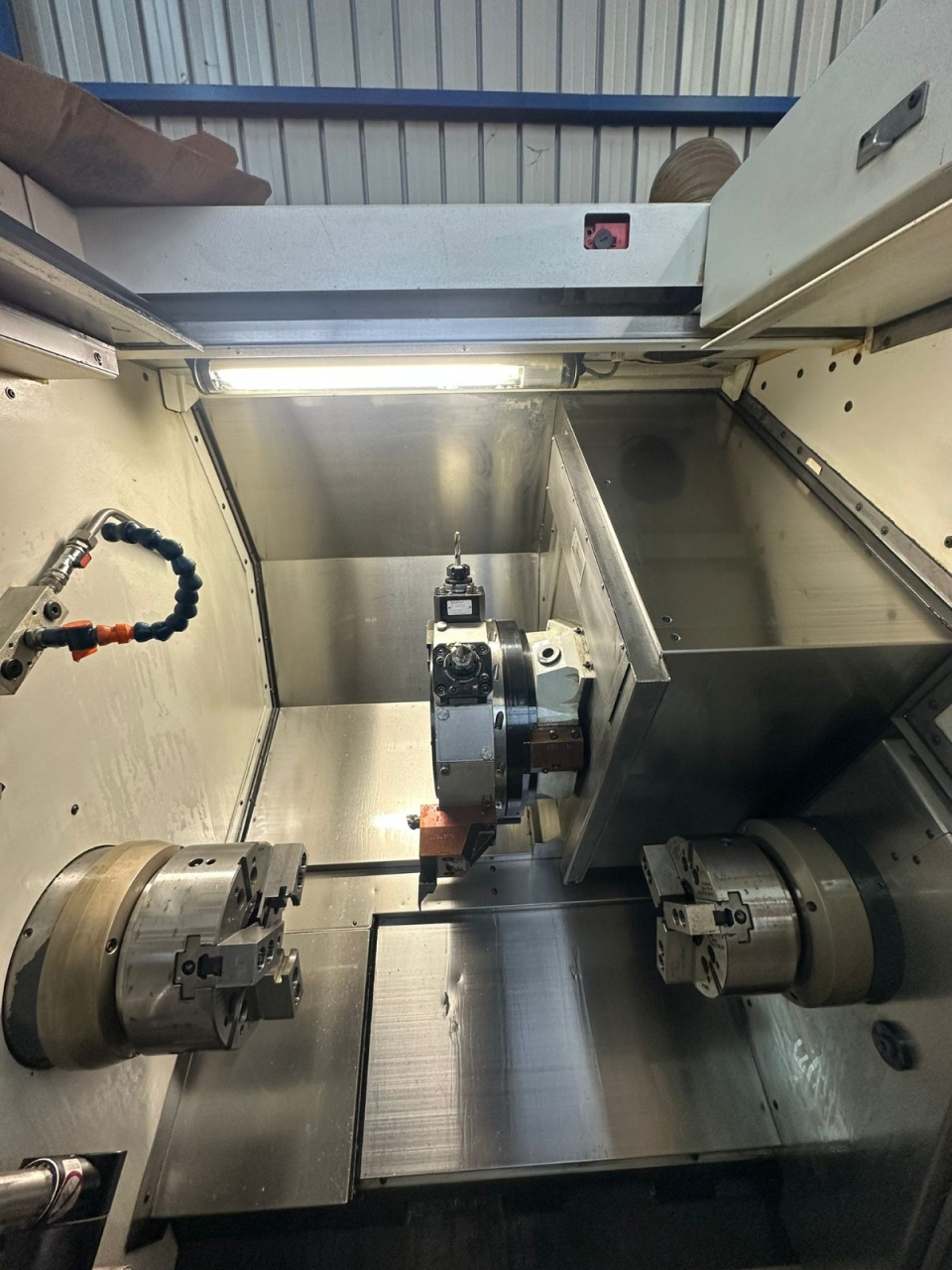

| Number of turrets | 1 |
| Number tool posts on the 1th turret | 15 |
| Number of driven tool posts on the 1th turret | 15 |
| X-axis travel 1th turret | 180 mm |
| Y-axis travel 1th turret | +45 -45 mm |
| Z-axis travel 1th turret | 620 mm |
| Rapid linear axis feeds X Y Z | 30 m/min |
| Subspindle | yes |
| Nose spindle | ASA 5 |
| Sub spindle RPM | 5000 |
| Subspindle power | 25 Kw |
| Bar diameter | 50 mm |
| Spindle chuck diameter | 140 mm |
| Z-axis travel sub spindle | 620 mm |
| Cheap conveyor | Hinged Belt |
| Presetting | yes |
Basic information
| Brand | Biglia |
| Model | 620 YS |
| Construction year | 2020 |
| Code | C01011 |
| Level of machine tool |
standard
|
Machine equipment
Set di portautensili fissi e motorizzatiDimensions and weight
| Length | 4551 mm |
| Width | 2065 mm |
| Height | 2042 mm |
| Weight | 6650 Kg |
