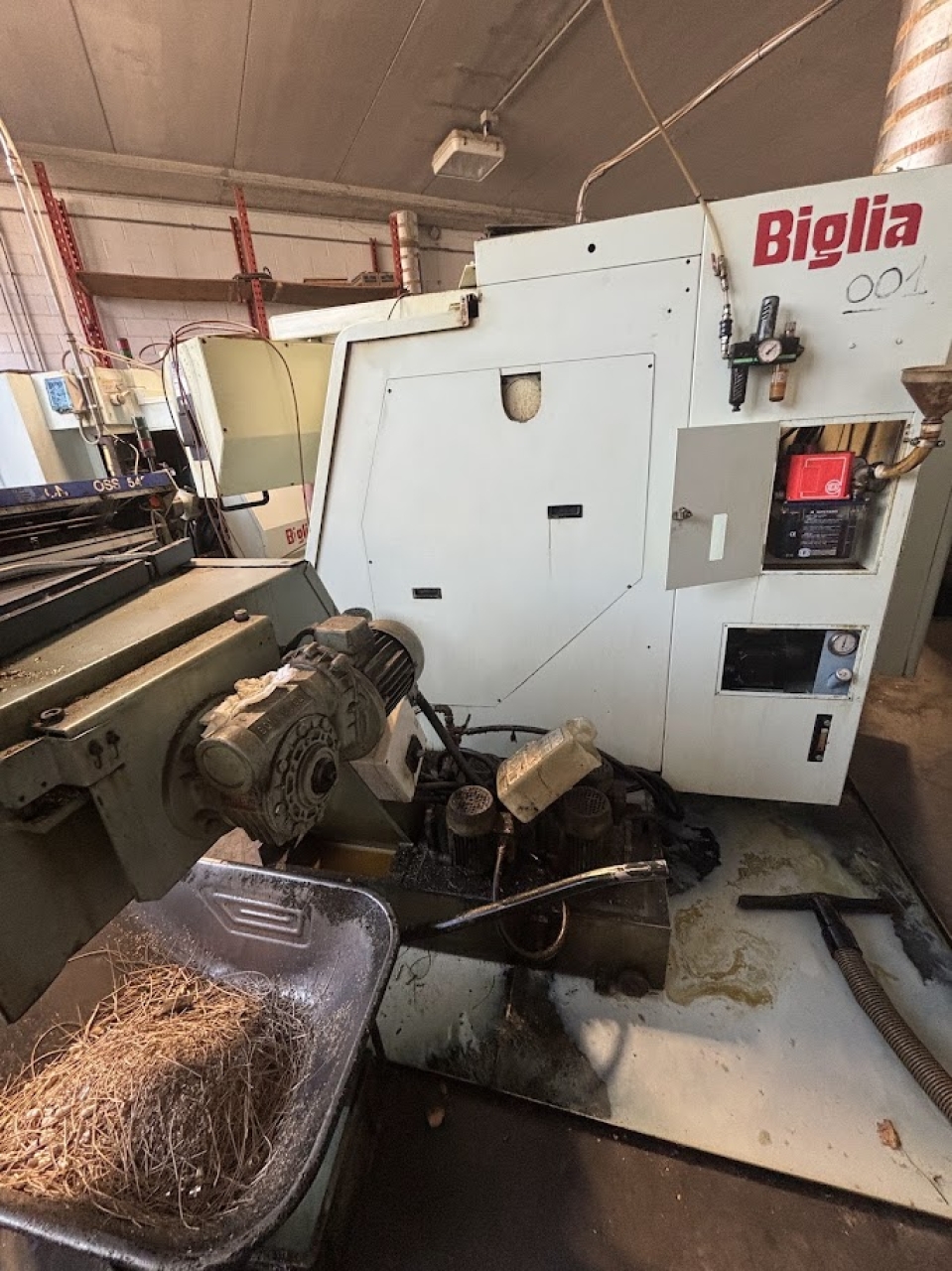

Tornio Da Barra Biglia B42/S2M
Technical specifications

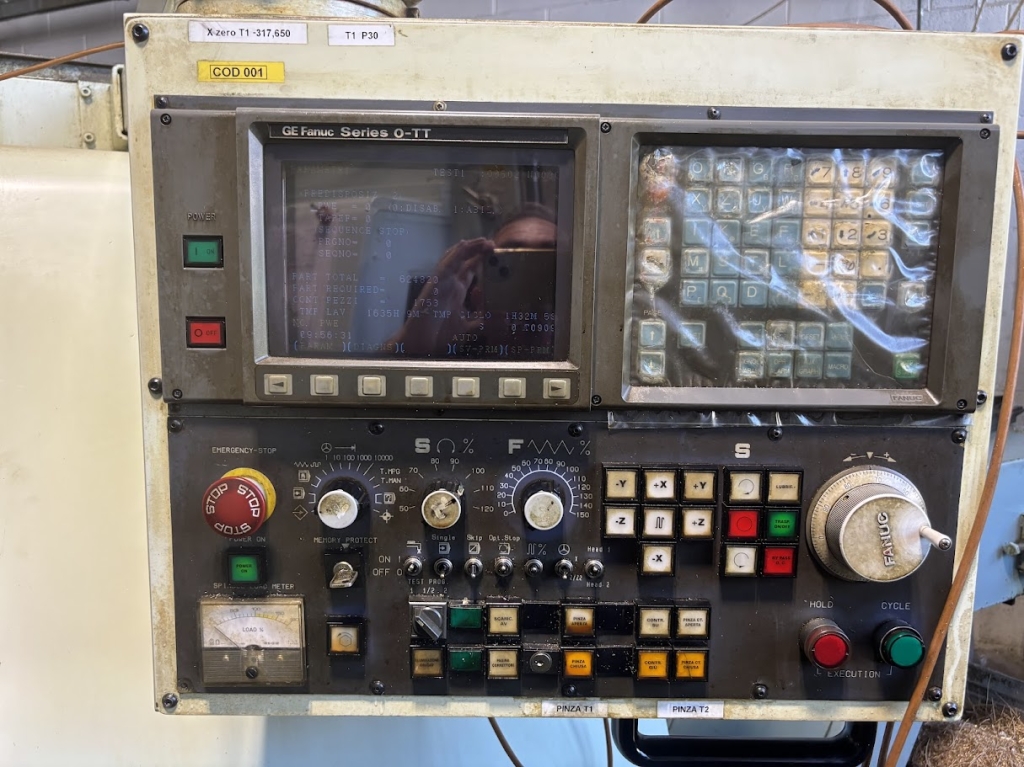

| CNC Model | Fanuc |
| CNC version | 0 - TT |
| Main spindle nose | ASA 5 |
| Power main spindle | 15 Kw |
| Main spindle bar diameter | 42 mm |
| Max turning lenght | 300 mm |
| Main spindle RPM | 3000 |

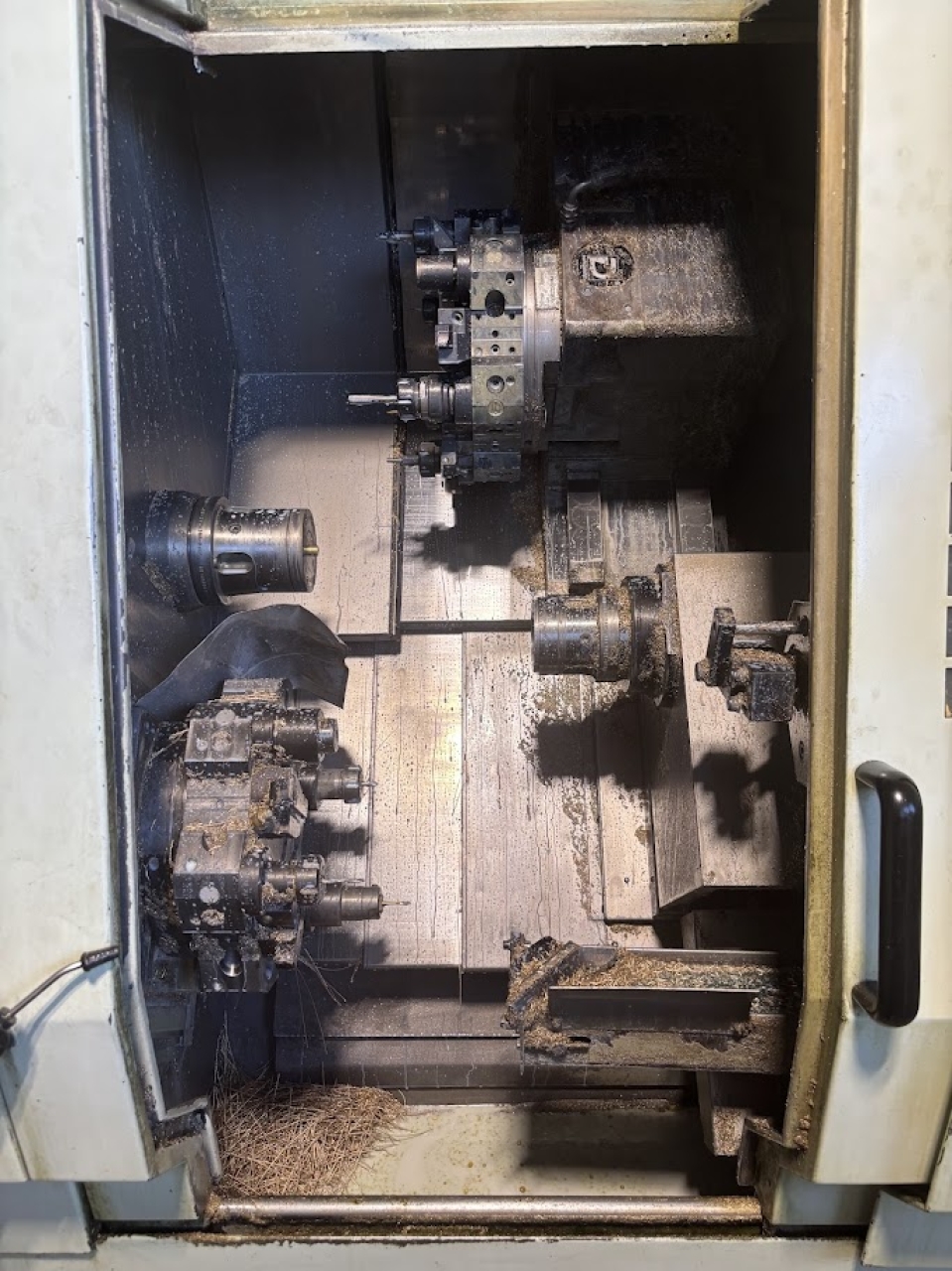

| Number of turrets | 2 |
| Number tool posts on the 1th turret | 10 |

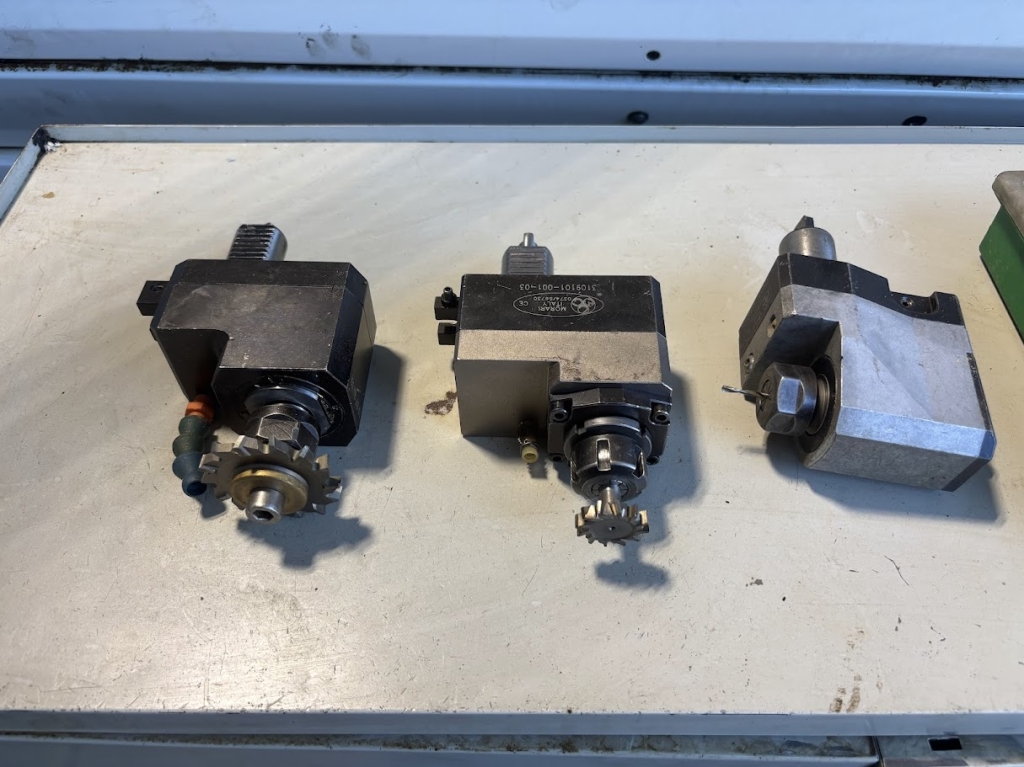

| Number of driven tool posts on the 1th turret | 6 |
| X-axis travel 1th turret | 175 mm |
| Z-axis travel 1th turret | 305 mm |
| Number tool posts on the 2th turret | 12 |
| X-axis travel 2th turret | 132 mm |
| Z-axis travel 2th turret | 155 mm |
| Rapid linear axis feeds X Y Z | 20 m/min |

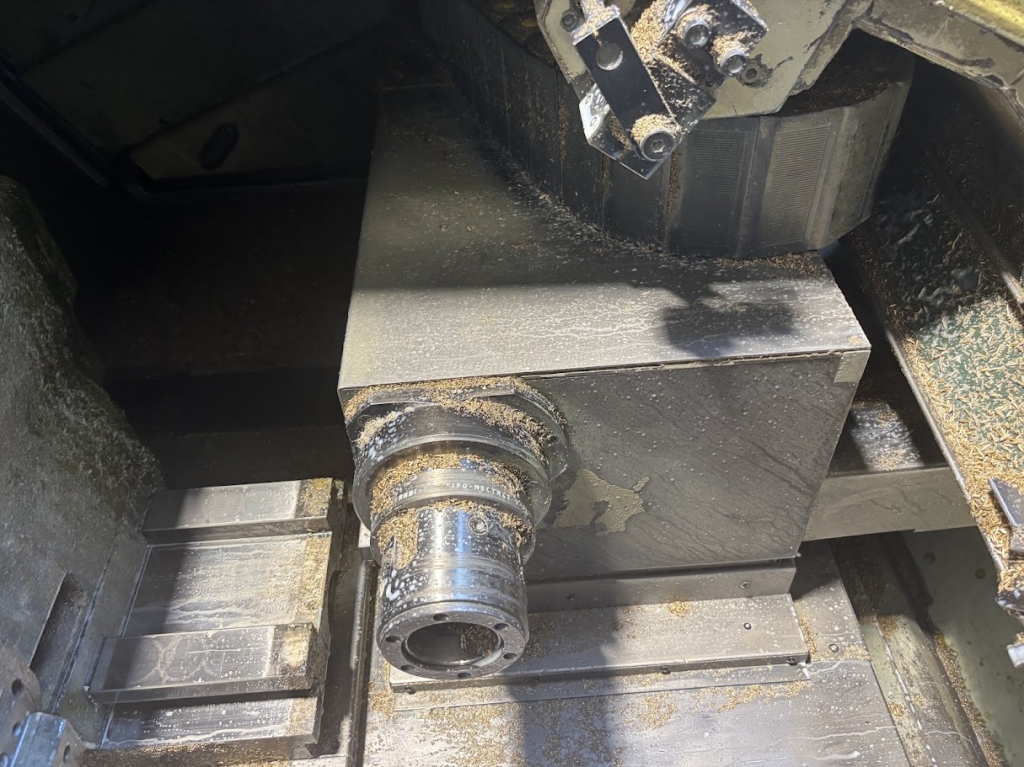

| Subspindle | yes |
| Nose spindle | ASA 4 |
| Sub spindle RPM | 5000 |
| Bar diameter | 42 mm |

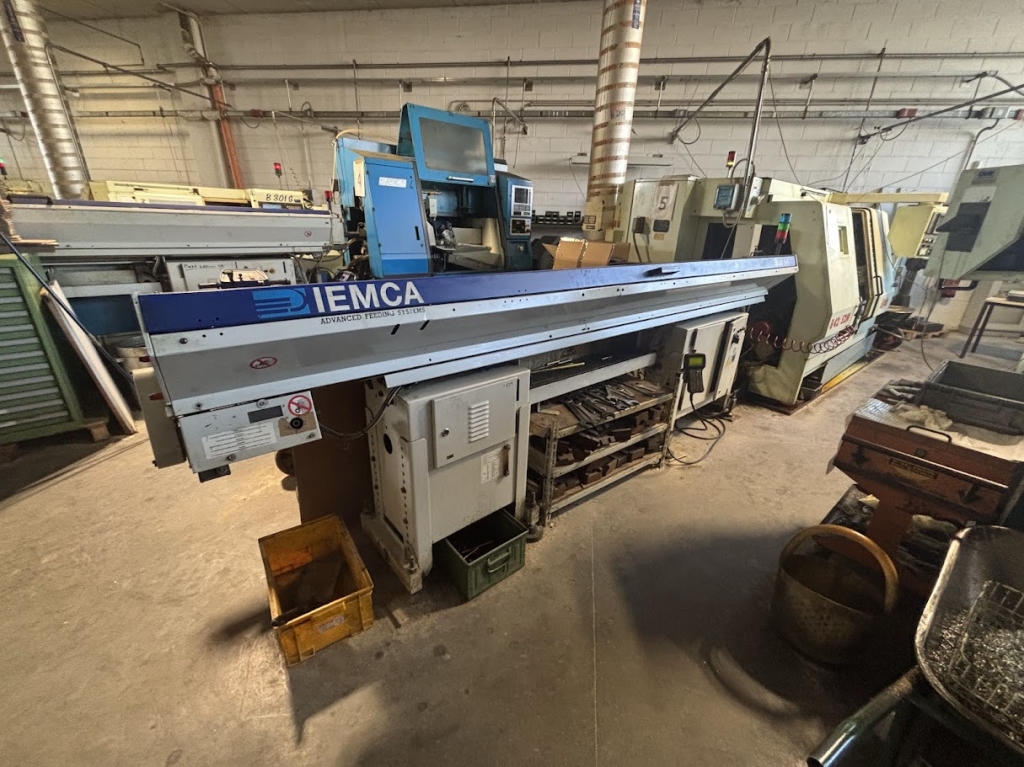

| Barfeeder model and brand | Iemca 545/32 |
| Cheap conveyor | Hinged Belt |
Basic information
| Code | 2D4E5F |
| Level of machine tool |
standard
|
| Brand | Biglia |
| Model | B42/S2M |
| Construction year | 1994 |
Dimensions and weight
| Length | 2500 mm |
| Width | 2000 mm |
| Height | 2100 mm |
| Weight | 4700 Kg |
