Tornio Da Barra TRAUB TNA 400
Technical specifications
| CNC Model | Traub |

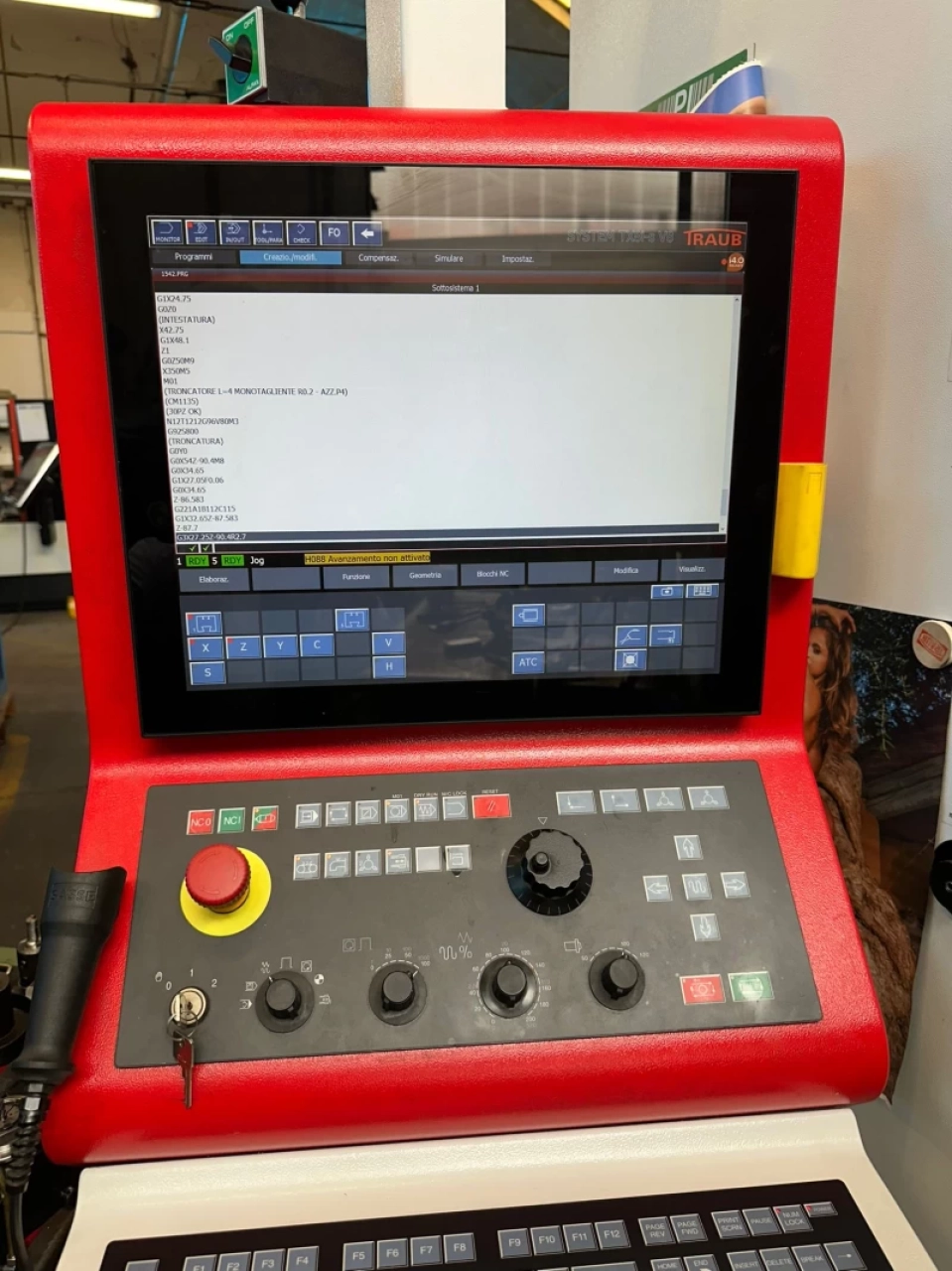

| CNC version | TX8i-s |
| Main spindle nose | ASA 8 |
| Power main spindle | 38 Kw |
| Main spindle bar diameter | 82 mm |
| Max turning diameter | 430 mm |
| Max turning lenght | 750 mm |
| Main spindle RPM | 4000 |

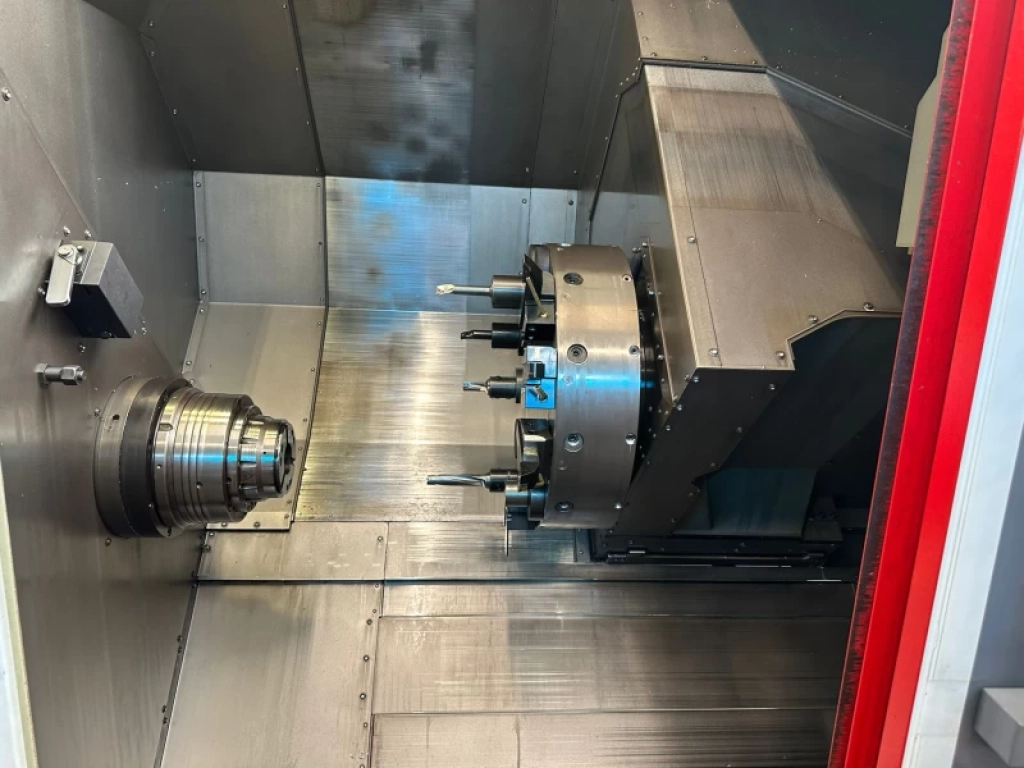

| Number of turrets | 1 |
| Number tool posts on the 1th turret | 12 |
| Number of driven tool posts on the 1th turret | 12 |
| Tool holder type 1th turret | VDI 40 |
| X-axis travel 1th turret | 360 mm |
| Y-axis travel 1th turret | + - 60 mm |
| Z-axis travel 1th turret | 750 mm |
| Rapid linear axis feeds X Y Z | 40 m/min |
| High coolant pressure | yes |
| Pressure value | 80 bar |

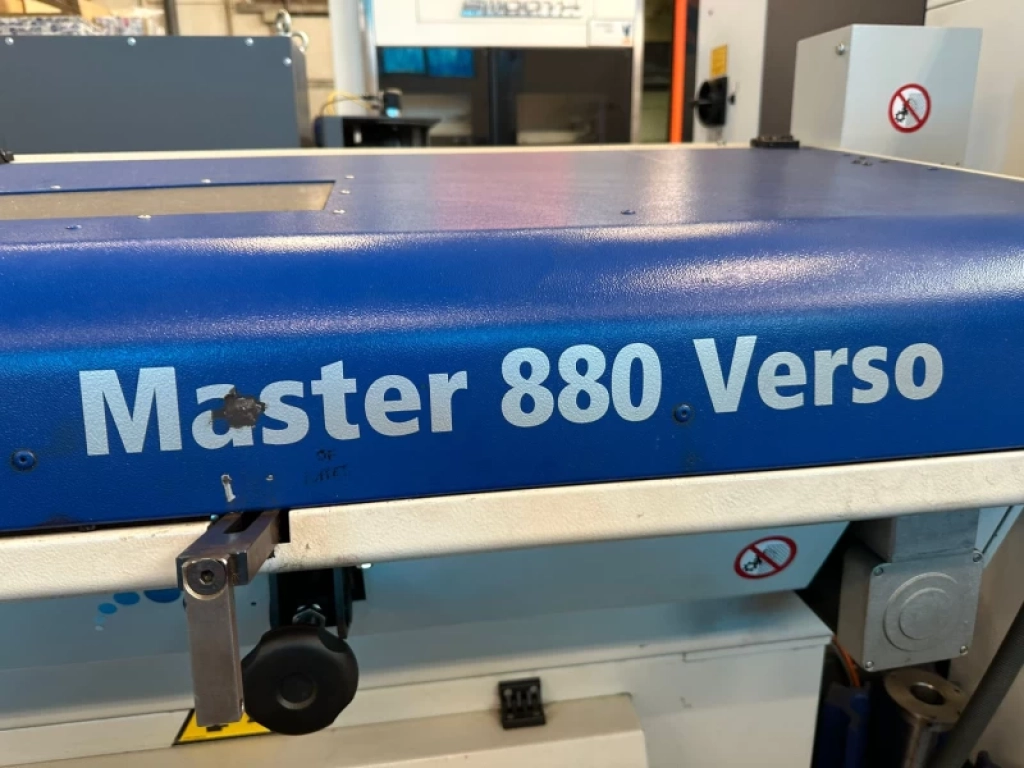

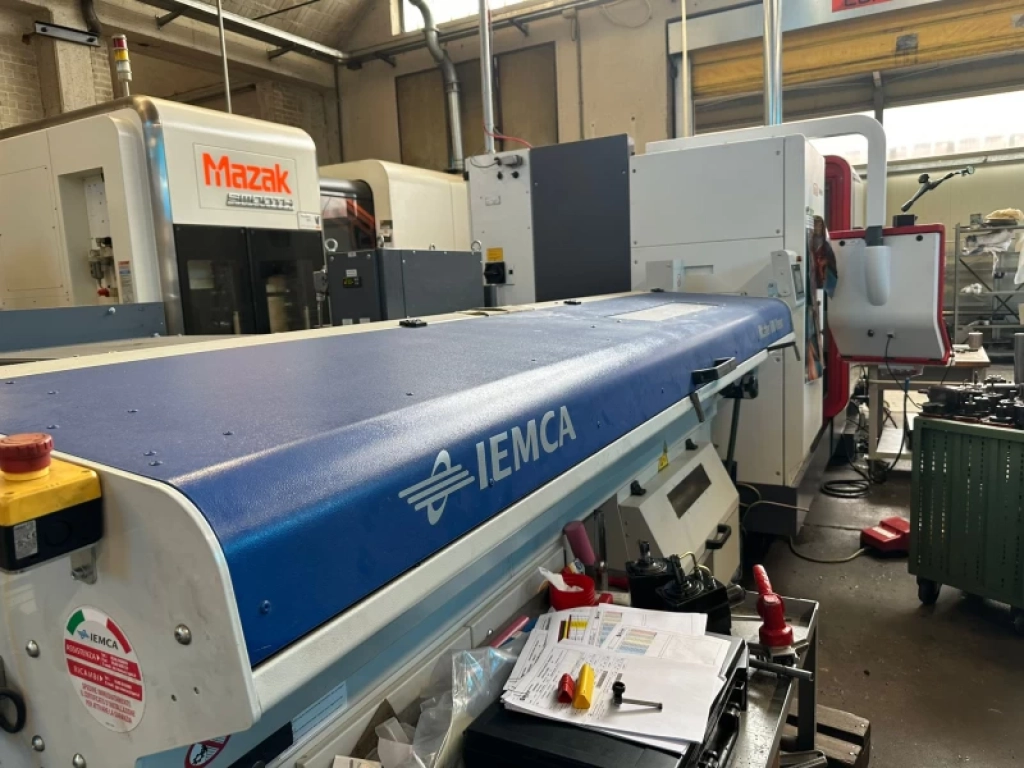

| Barfeeder model and brand | Iemca Master 880 Verso |
| Tailstock | yes |
| Cheap conveyor | Hinged Belt |
Basic information
| Brand | Traub |
| Model | TNA 400 |
| Construction year | 2020 |
| Code | A3CB51 |
| Level of machine tool |
standard
|
Complete data sheet
Diametro di volteggio sul bancale: 770 mm
Diametro di volteggio sulla guida dell'asse X: 650 mmMachine equipment
Interfaccia operatore iXpanel con funzionalità Industry 4.0Dimensions and weight
| Length | 3244 mm |
| Width | 1900 mm |
| Height | 2290 mm |
| Weight | 7800 Kg |
