Tornio Da Barra Muratec MT100
Technical specifications

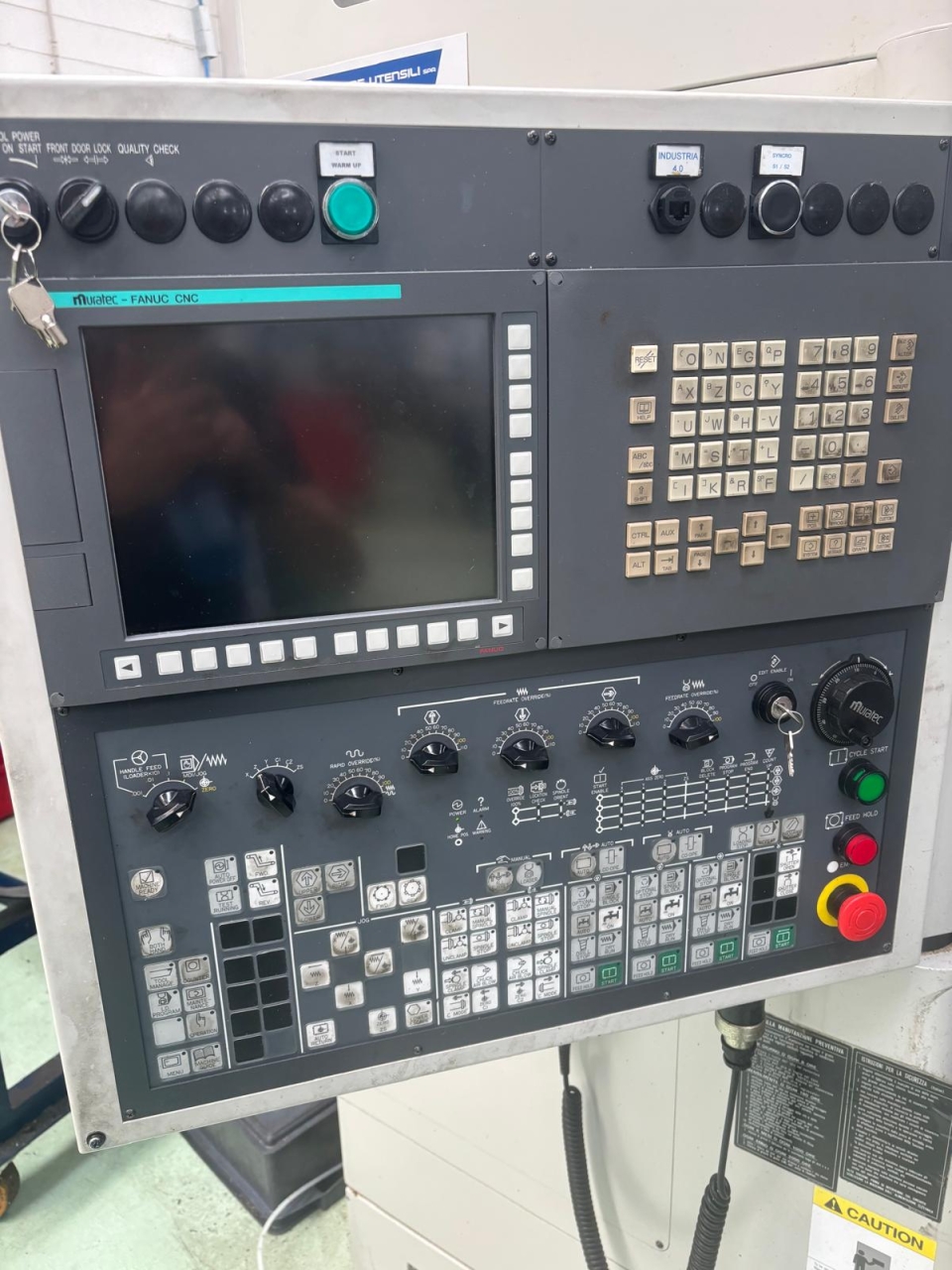

| CNC Model | Fanuc |
| Main spindle nose | ASA 5 |
| Power main spindle | 11 Kw |
| Main spindle chuck diameter | 165 mm |
| Main spindle bar diameter | 51 mm |
| Max turning diameter | 190 mm |
| Max turning lenght | 620 mm |
| Main spindle RPM | 5000 |

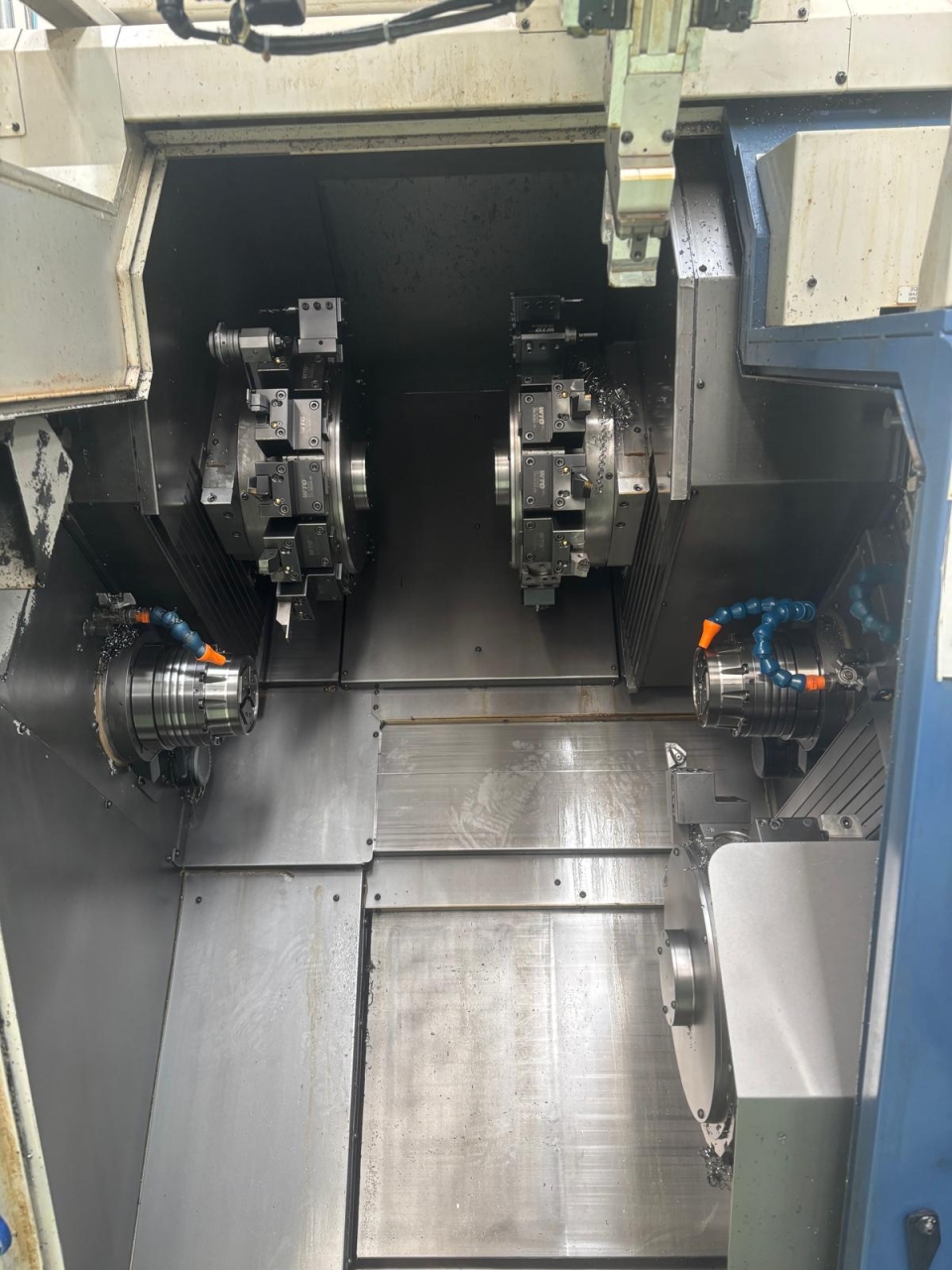

| Number of turrets | 3 |
| Number tool posts on the 1th turret | 15 |
| Number of driven tool posts on the 1th turret | 15 |
| X-axis travel 1th turret | 150 mm |
| Y-axis travel 1th turret | + - 30 mm |
| Z-axis travel 1th turret | 200 mm |
| Number tool posts on the 2th turret | 15 |
| Number of driven tool posts on the 2th turret | 15 |
| X-axis travel 2th turret | 150 mm |
| Y-axis travel 2th turret | + - 30 mm |
| Z-axis travel 2th turret | 620 mm |
| Number tool posts on the 3th turret | 15 |
| Number of driven tool posts on the 3th turret | 15 |
| X-axis travel 3th turret | 150 mm |
| Y-axis travel 3th turret | + - 30 mm |
| Z-axis travel 3th turret | 200 mm |
| Rapid linear axis feeds X Y Z | 40 m/min |
| High coolant pressure | yes |
| System with external tank with filter | yes |

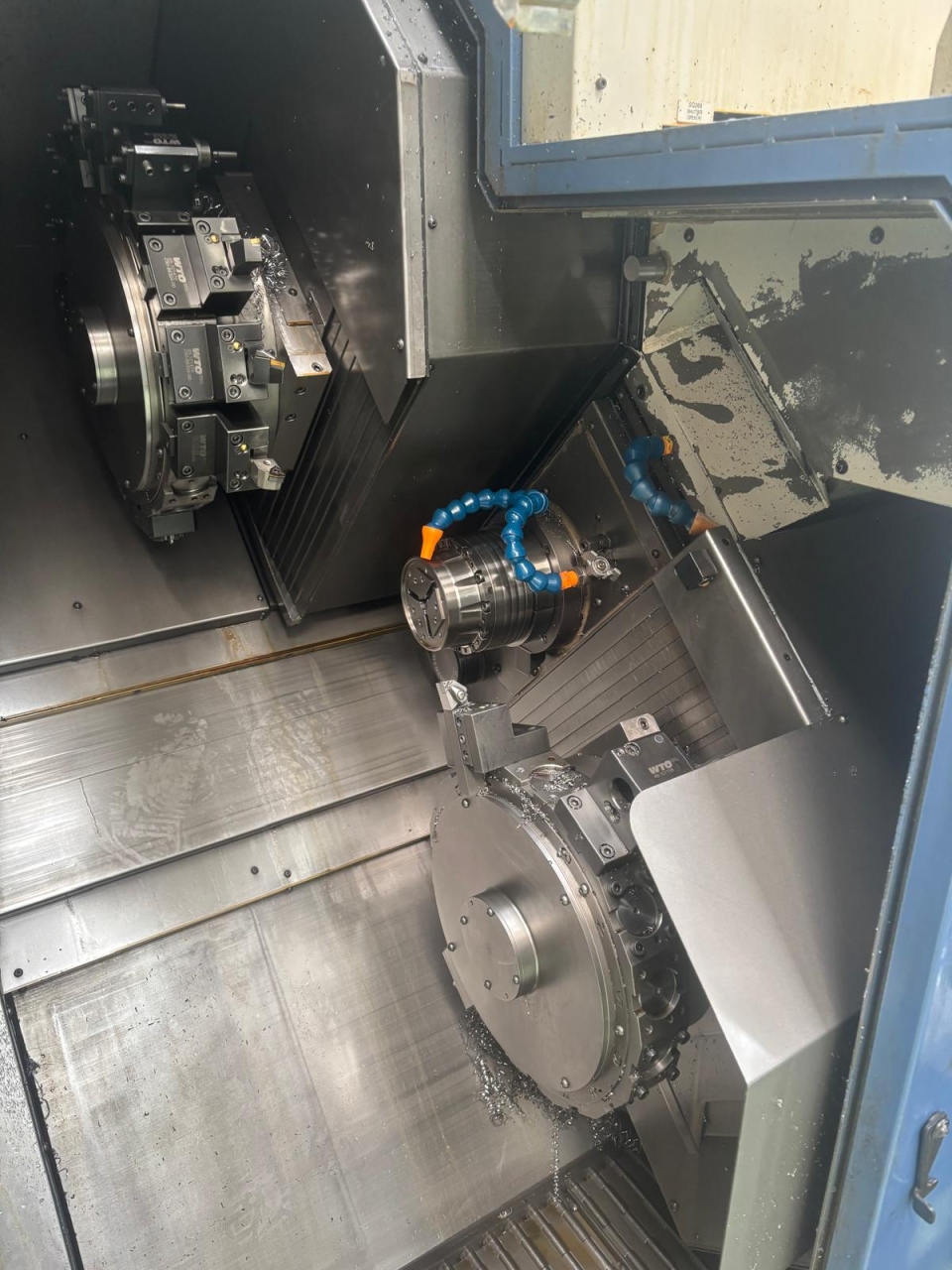

| Subspindle | yes |
| Nose spindle | ASA 5 |
| Sub spindle RPM | 5000 |
| Subspindle power | 11 Kw |
| Z-axis travel sub spindle | 680 mm |

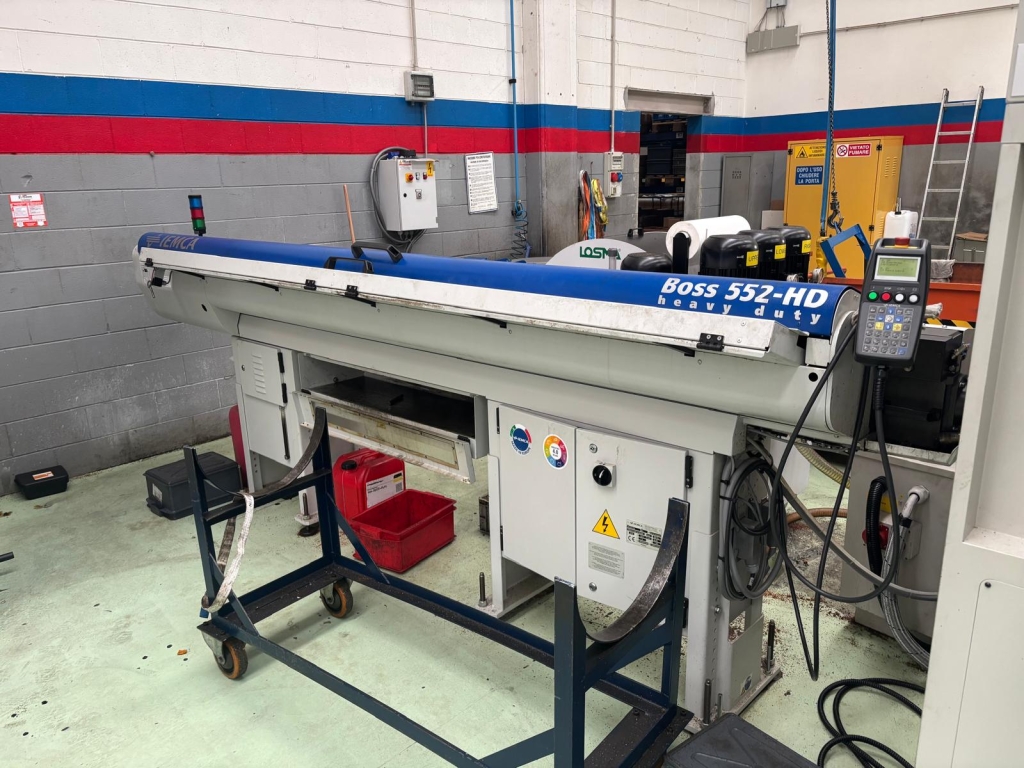

| Barfeeder model and brand | Iemca Boss 552-HD |
| Cheap conveyor | Hinged Belt |
Basic information
| Code | 67A49C |
| Level of machine tool |
standard
|
| Brand | Muratec |
| Model | MT100 |
| Construction year | 2018 |
Complete data sheet
Gantry Loader CNC a 3 assi ad alta velocità per scarico automatico pezzi su nastro
Configurazione 3 Griffe
Diametro pezzo: ø120 mm × L100 mm
Peso standard: 3.0 kg × 2 pezzi
Configurazione 2 Griffe
Diametro pezzo: ø70 mm × L200 mm
Peso: 3.0 kg × 2 pezzi
DATI INDICATIVI DA VERIFICARE IN LOCOMachine equipment
set di portautensili fissi e motorizzati .Dimensions and weight
| Length | 4000 mm |
| Width | 2500 mm |
| Height | 2800 mm |
| Weight | 7000 Kg |
