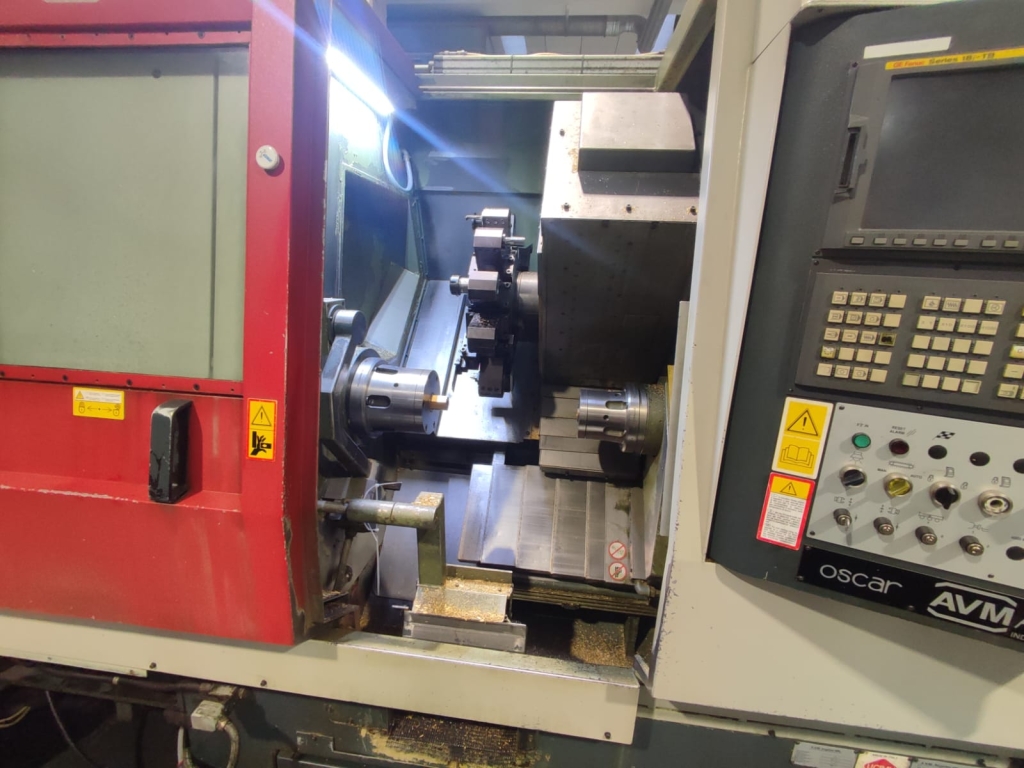

Tornio Da Barra Avm Angelini Oscar
Technical specifications

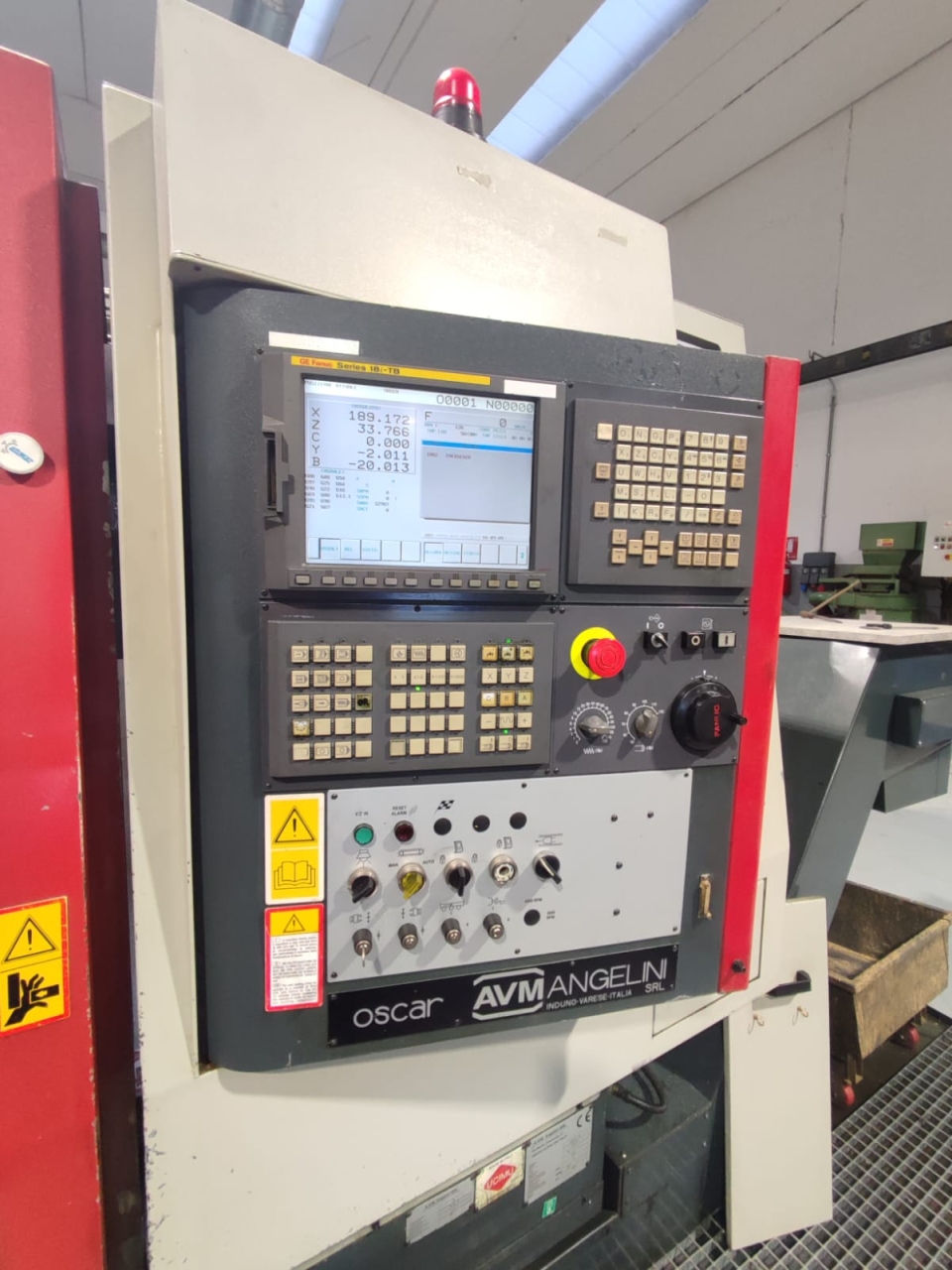

| CNC Model | Fanuc |
| CNC version | 18i-TB |
| Main spindle nose | ASA 6 |
| Power main spindle | 15 Kw |
| Main spindle chuck diameter | 210 mm |
| Main spindle bar diameter | 77 mm |
| Max turning diameter | 320 mm |
| Max turning lenght | 600 mm |
| Main spindle RPM | 4000 |
| Number of turrets | 1 |
| Number tool posts on the 1th turret | 12 |
| Number of driven tool posts on the 1th turret | 12 |
| X-axis travel 1th turret | 270 mm |
| Y-axis travel 1th turret | - 40 +60 mm |
| Z-axis travel 1th turret | 750 mm |
| Rapid linear axis feeds X Y Z | 36 m/min |
| Subspindle | yes |
| Nose spindle | ASA 5 |
| Sub spindle RPM | 6000 |
| Subspindle power | 7,5 Kw |
| Z-axis travel sub spindle | 600 mm |

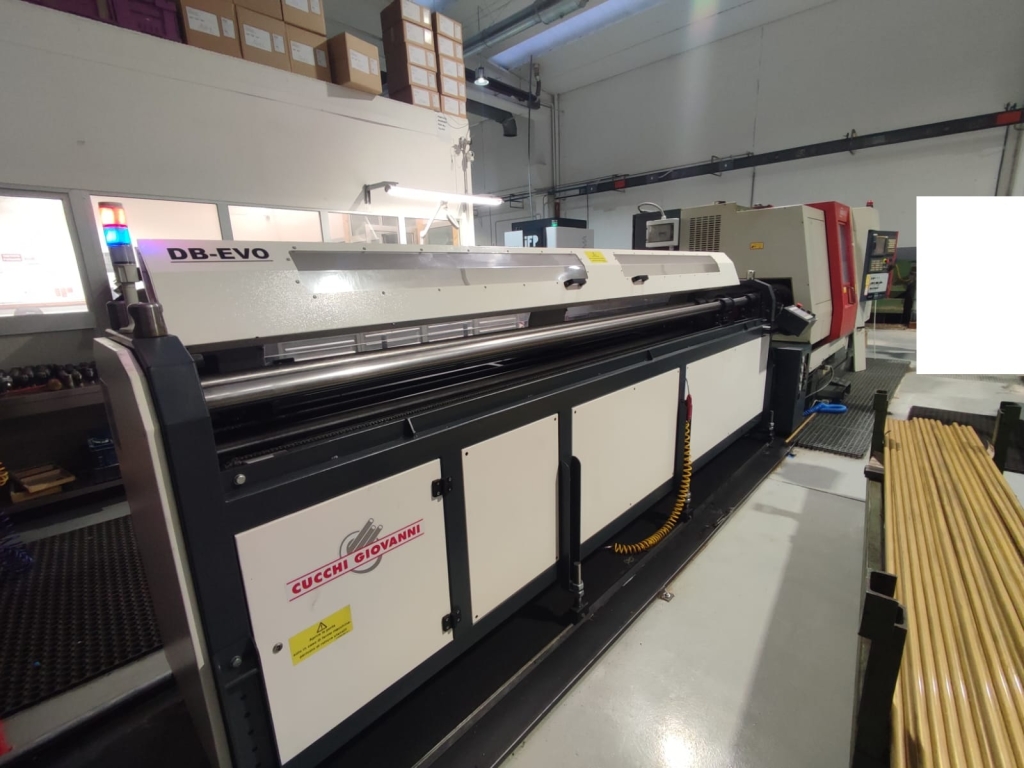

| Barfeeder model and brand | Cucchi Giovanni |

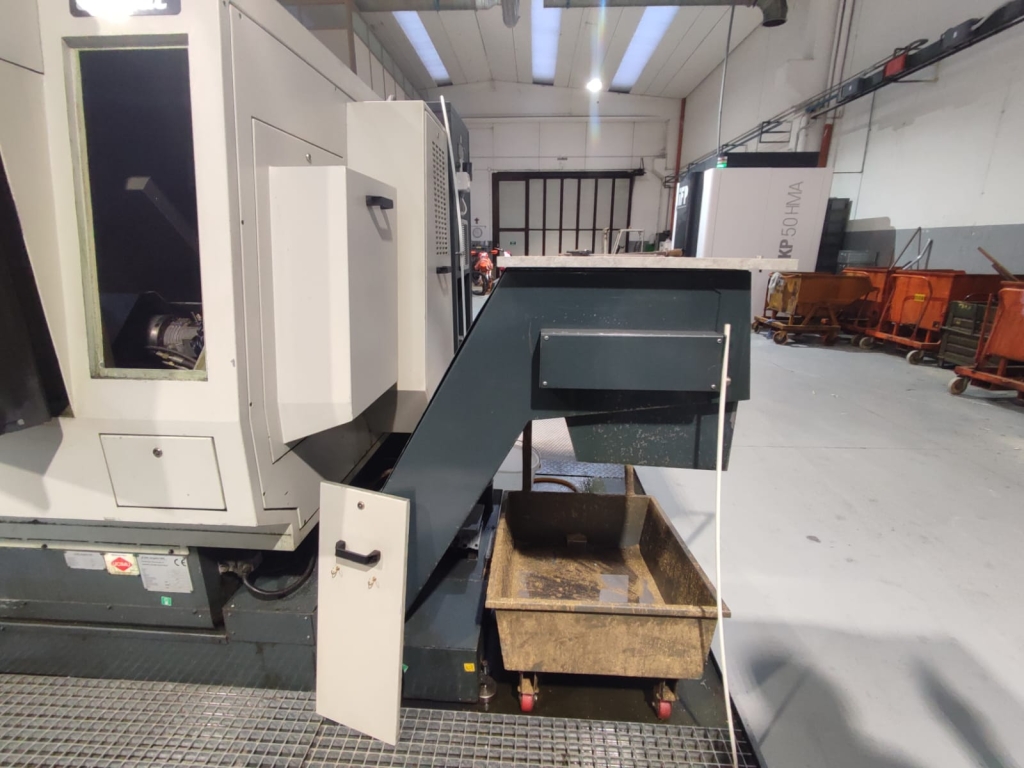

| Cheap conveyor | Hinged Belt |
Basic information
| Code | 68B832 |
| Level of machine tool |
standard
|
| Brand | Avm Angelini |
| Model | Oscar |
| Construction year | 2007 |
Machine equipment

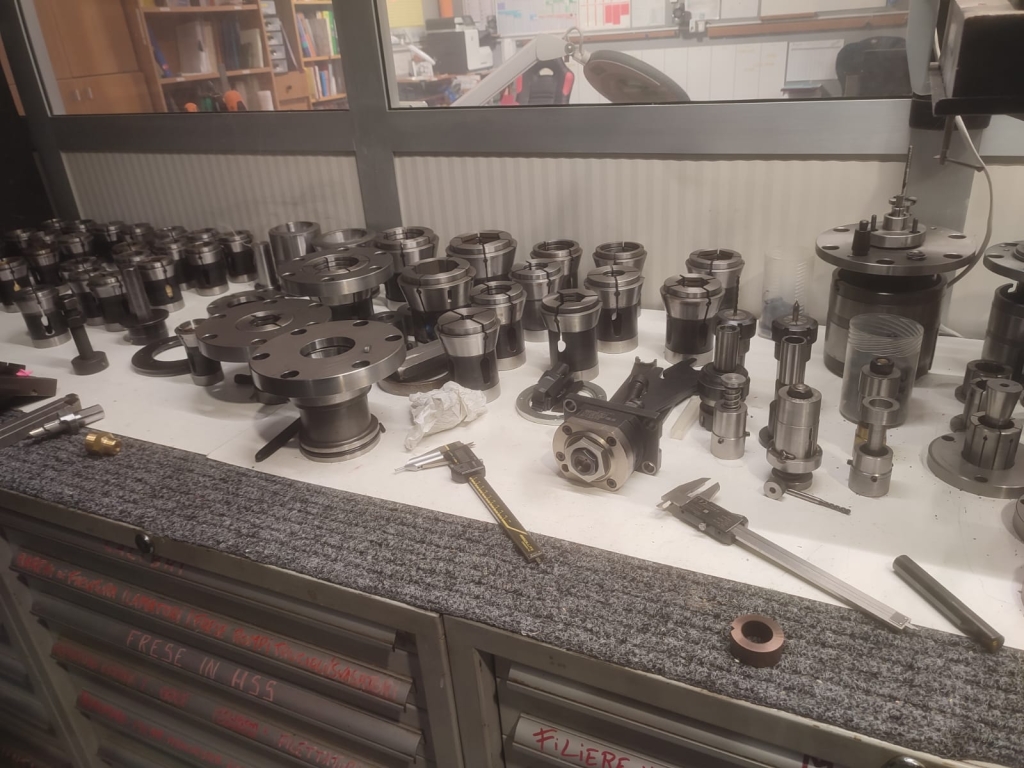

set di portautensili fissi e motorizzatiDimensions and weight
| Length | 4300 mm |
| Width | 1830 mm |
| Height | 1990 mm |
| Weight | 4500 Kg |
