Tornio Da Barra Nakamura SUPER NTJ100
Technical specifications

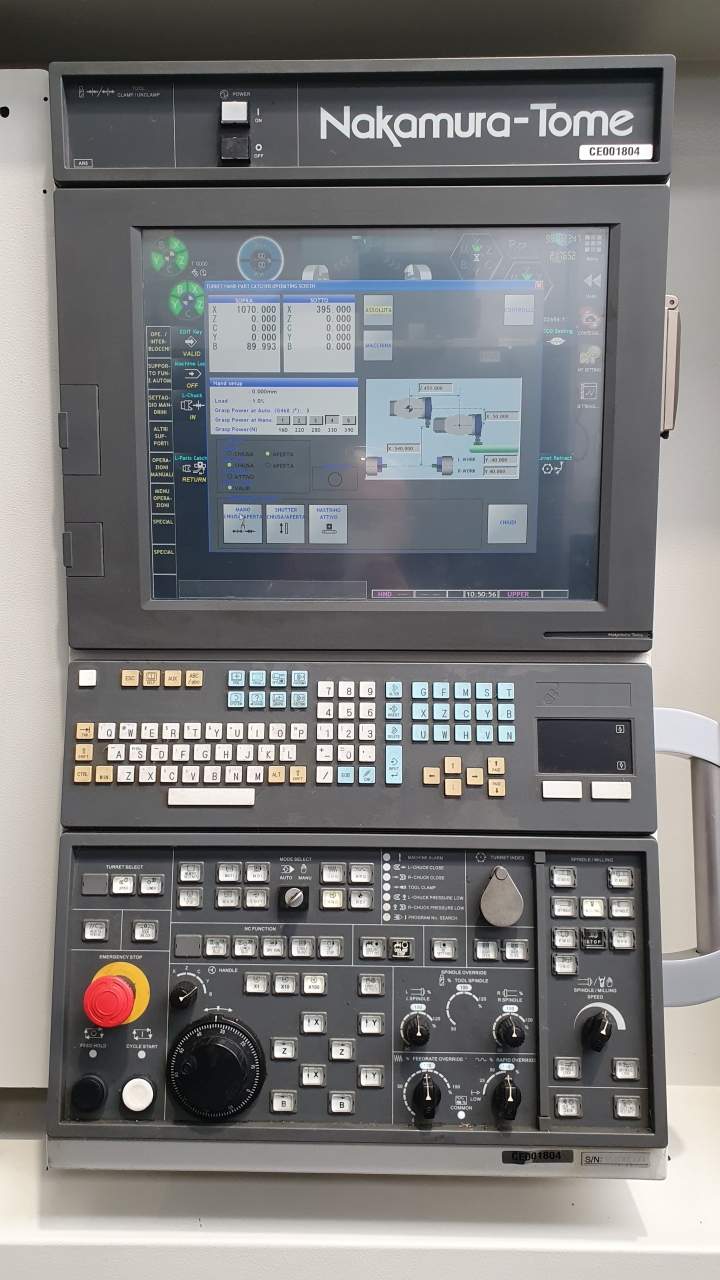

| CNC Model | Fanuc |
| Power main spindle | 15 Kw |
| Main spindle bar diameter | 65 mm |
| Max turning diameter | 190 mm |
| Max turning lenght | 620 mm |
| Main spindle RPM | 4500 |

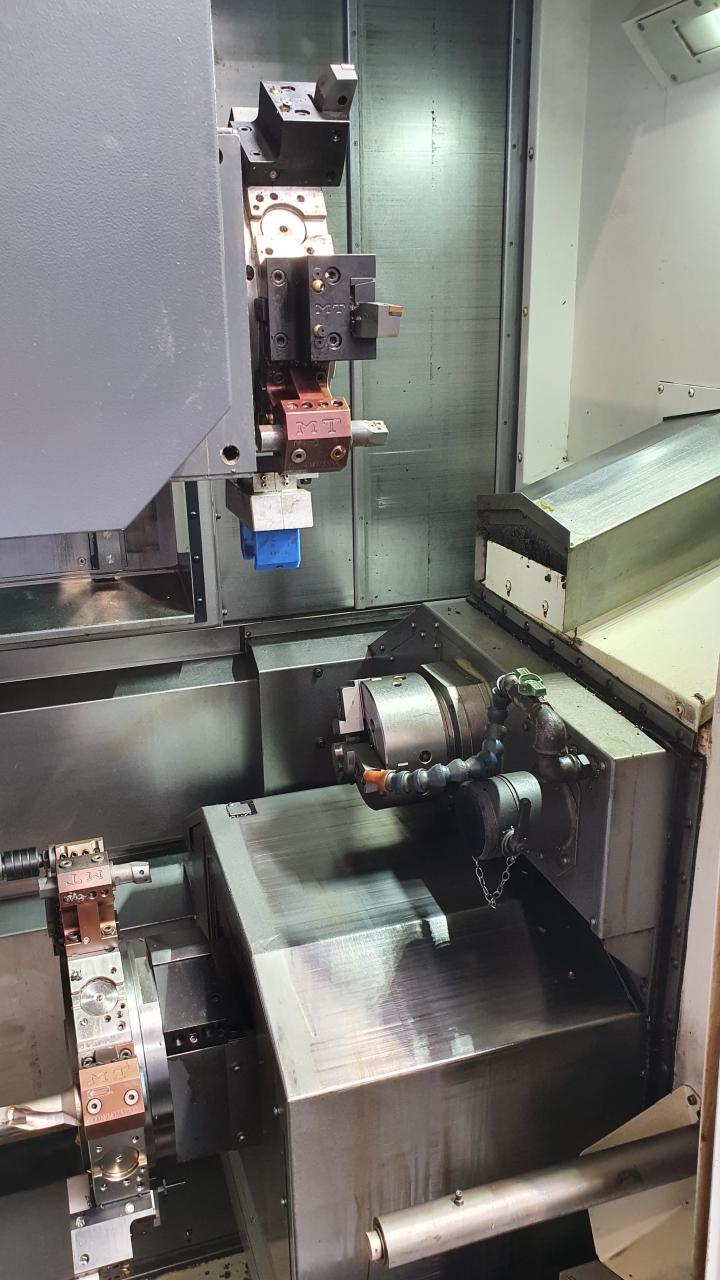

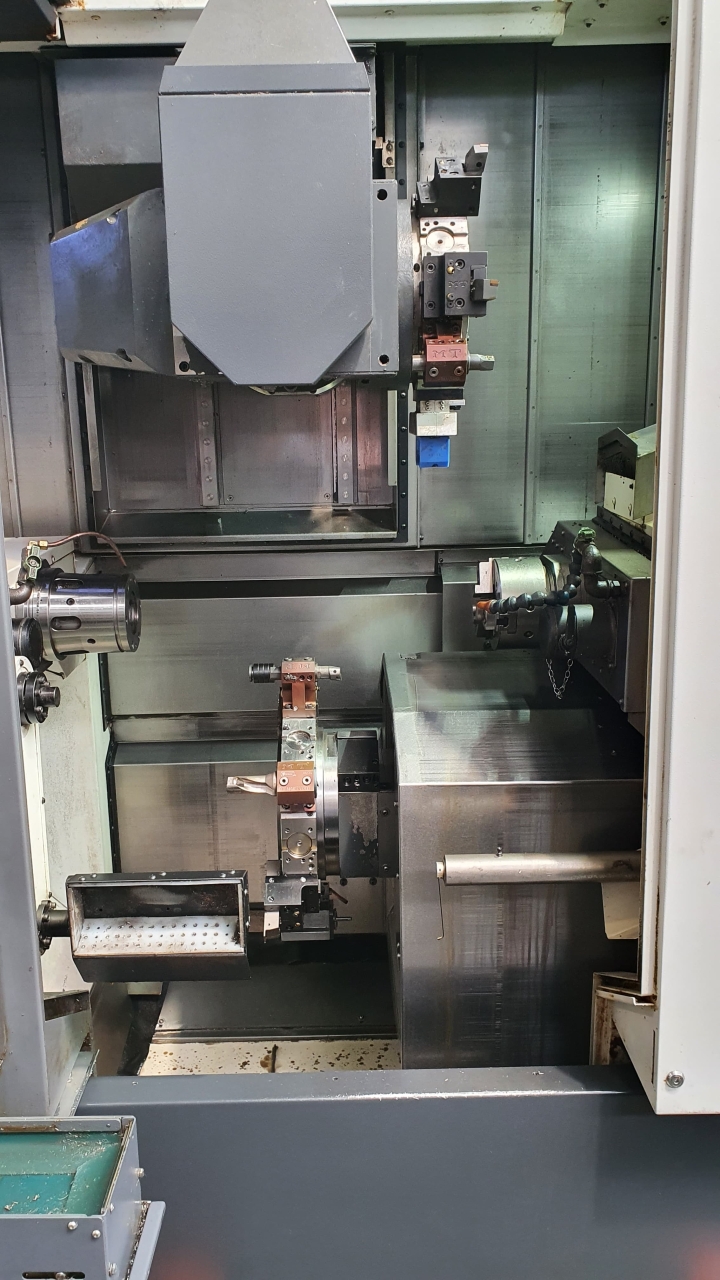

| Number of turrets | 2 |
| Number tool posts on the 1th turret | 12 |
| Number of driven tool posts on the 1th turret | 12 |
| X-axis travel 1th turret | 135 mm |
| Y-axis travel 1th turret | + - 45 mm |
| Z-axis travel 1th turret | 245 mm |
| B -axis rotating travel 1th turret | +/- 91° gradi |
| Number tool posts on the 2th turret | 12 |
| Number of driven tool posts on the 2th turret | 12 |
| X-axis travel 2th turret | 135 mm |
| Y-axis travel 2th turret | + - 45 mm |
| Z-axis travel 2th turret | 245 mm |
| Rapid linear axis feeds X Y Z | 24 24 40 m/min |
| High coolant pressure | yes |

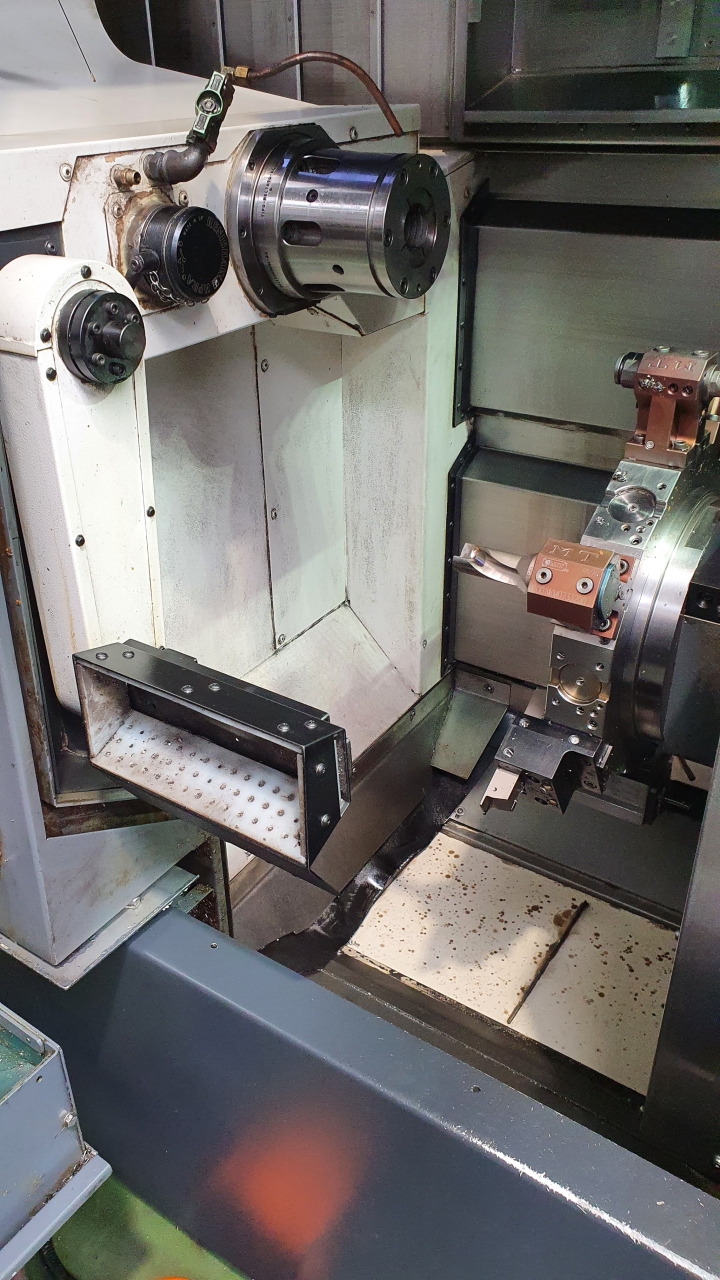

| Subspindle | yes |
| Sub spindle RPM | 6000 |
| Subspindle power | 11 Kw |
| Z-axis travel sub spindle | 578 mm |

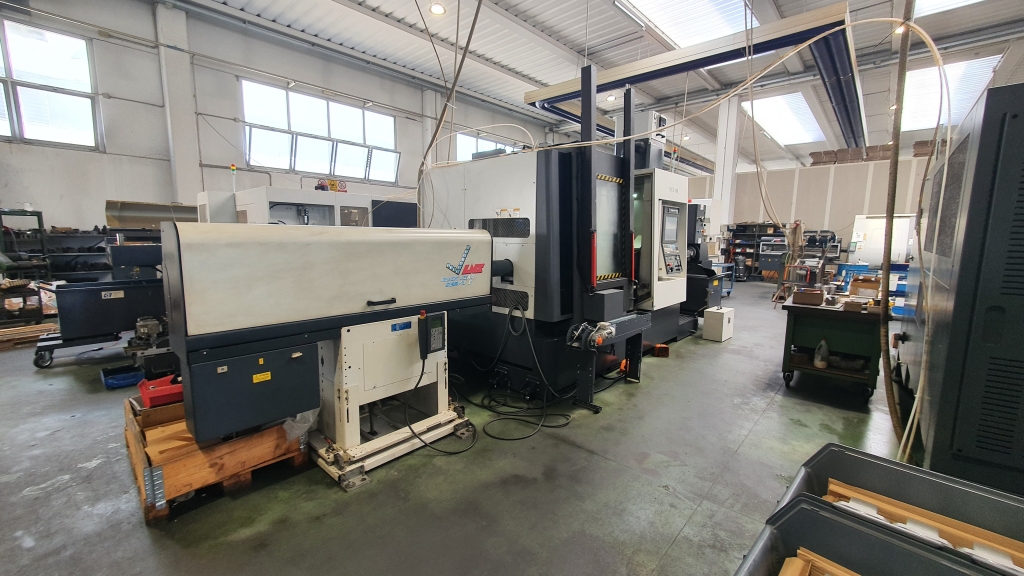

| Barfeeder model and brand | LNS Quick Load servo 2 |
| Cheap conveyor | Hinged Belt |
| Presetting | yes |
Basic information
| Brand | Nakamura |
| Model | SUPER NTJ100 |
| Construction year | 2016 |
| Code | C930E1 |
| Level of machine tool |
standard
|
Dimensions and weight
| Length | 3800 mm |
| Width | 2100 mm |
| Height | 2565 mm |
| Weight | 12000 Kg |
