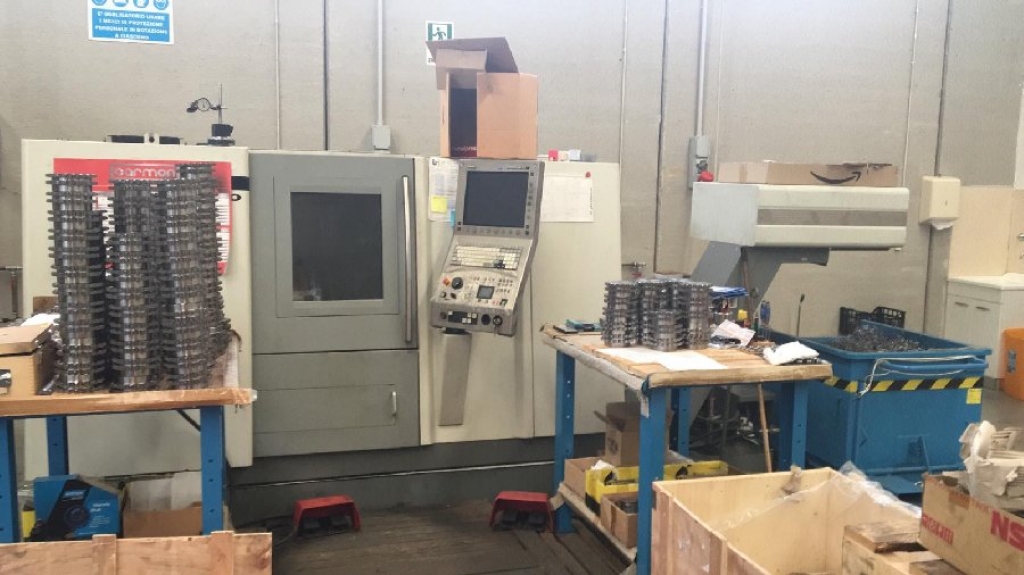

Tornio Motorizzato CNC Graziano Gildemeister CTX 310 V6 Y
Technical specifications
CNC Model | Heidenhain |
Main spindle nose | ASA 6 |
Power main spindle | 16 Kw |
Main spindle chuck diameter | 210 mm |
Main spindle bar diameter | 51 mm |
Main spindle RPM | 6000 |
Number of turrets | 1 |

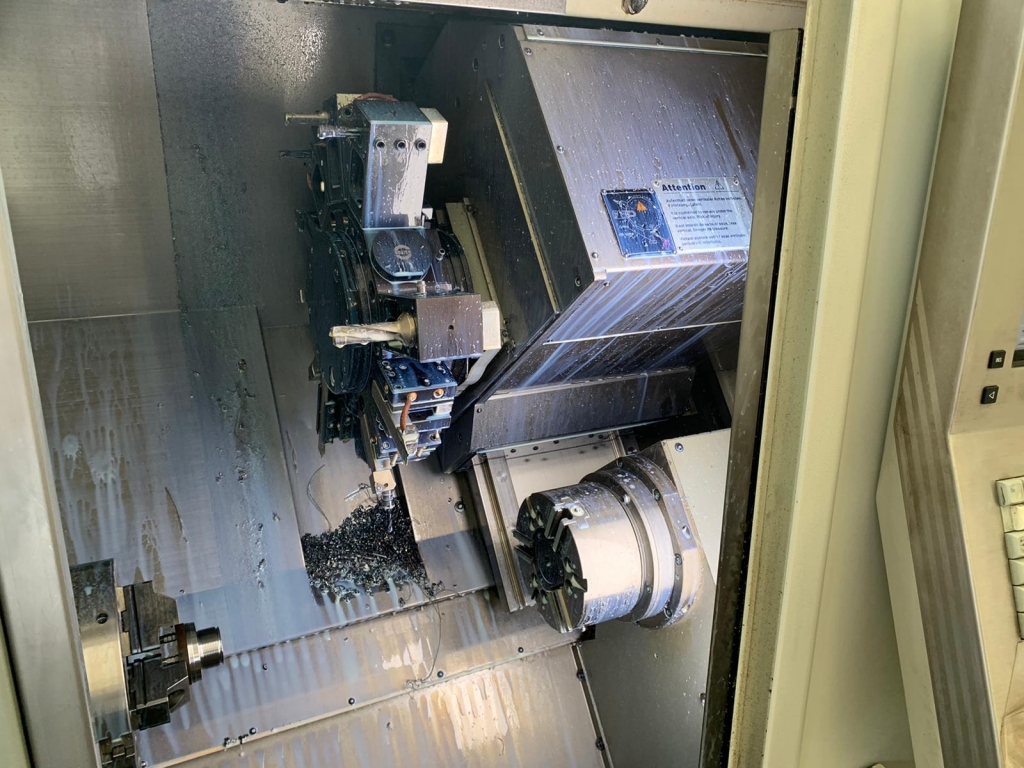

Number tool posts on the 1th turret | 12 |
Number of driven tool posts on the 1th turret | 12 |
Tool holder type 1th turret | VDI |
X-axis travel 1th turret | 280 mm |
Y-axis travel 1th turret | +- 40 mm |
Z-axis travel 1th turret | 500 mm |
Rapid linear axis feeds X Y Z | 30 m/min |

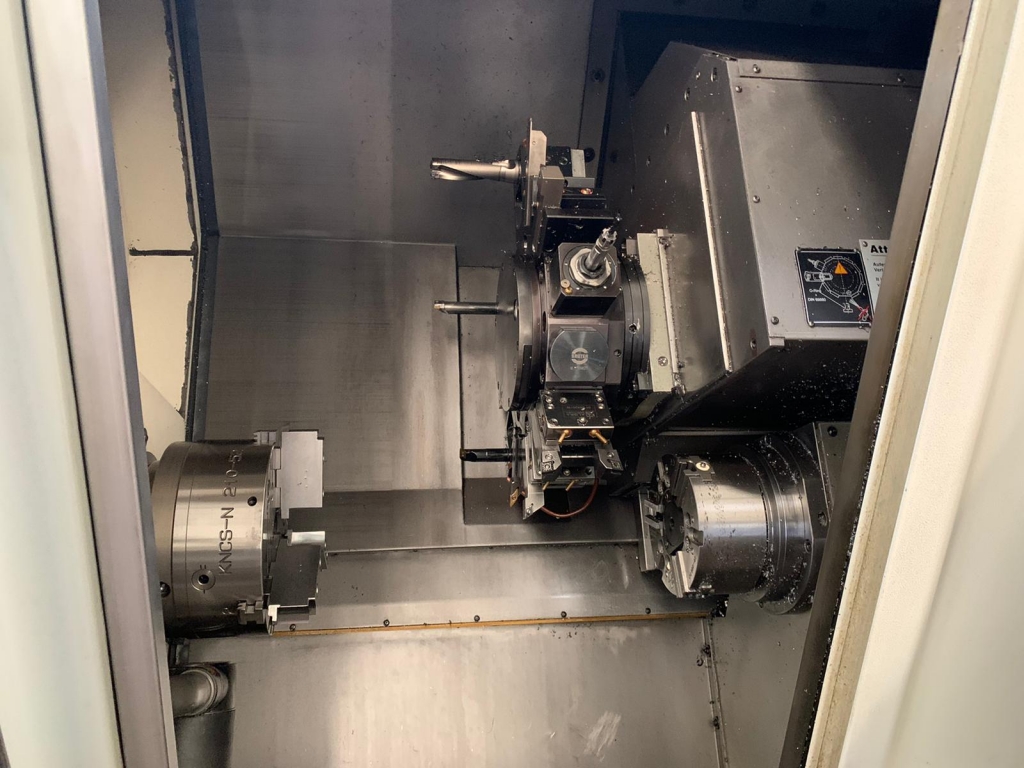

Subspindle | yes |
Subspindle power | 7,5 Kw |
Spindle chuck diameter | 165 mm |
Cheap conveyor | Hinged Belt |
Presetting | yes |

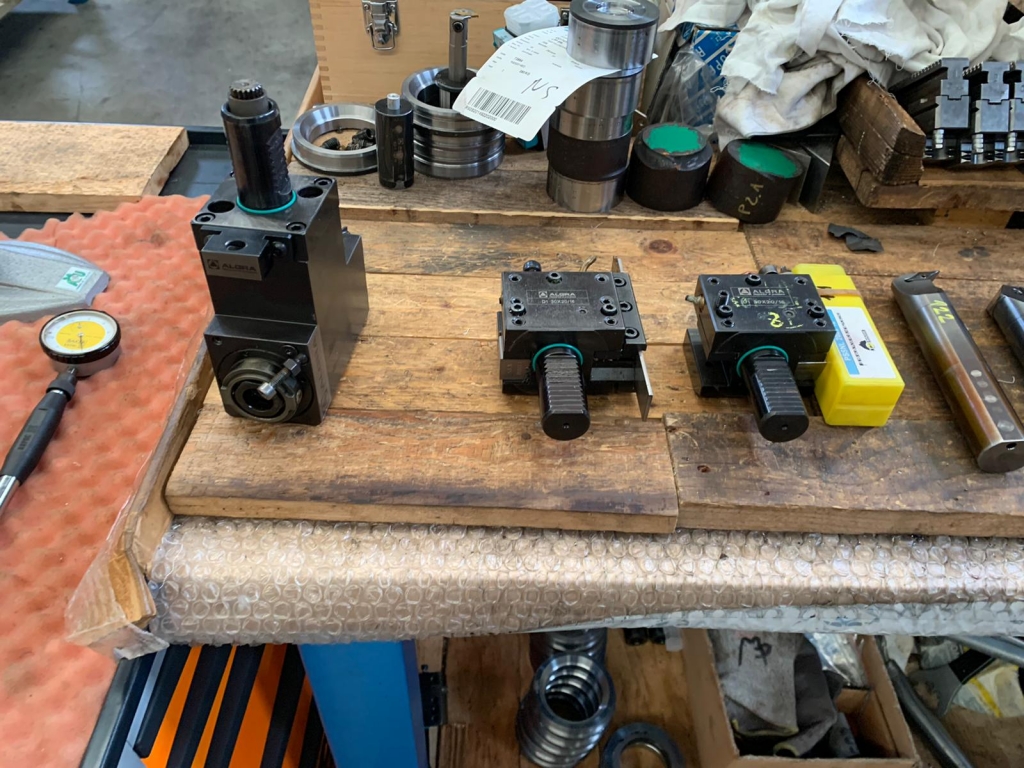

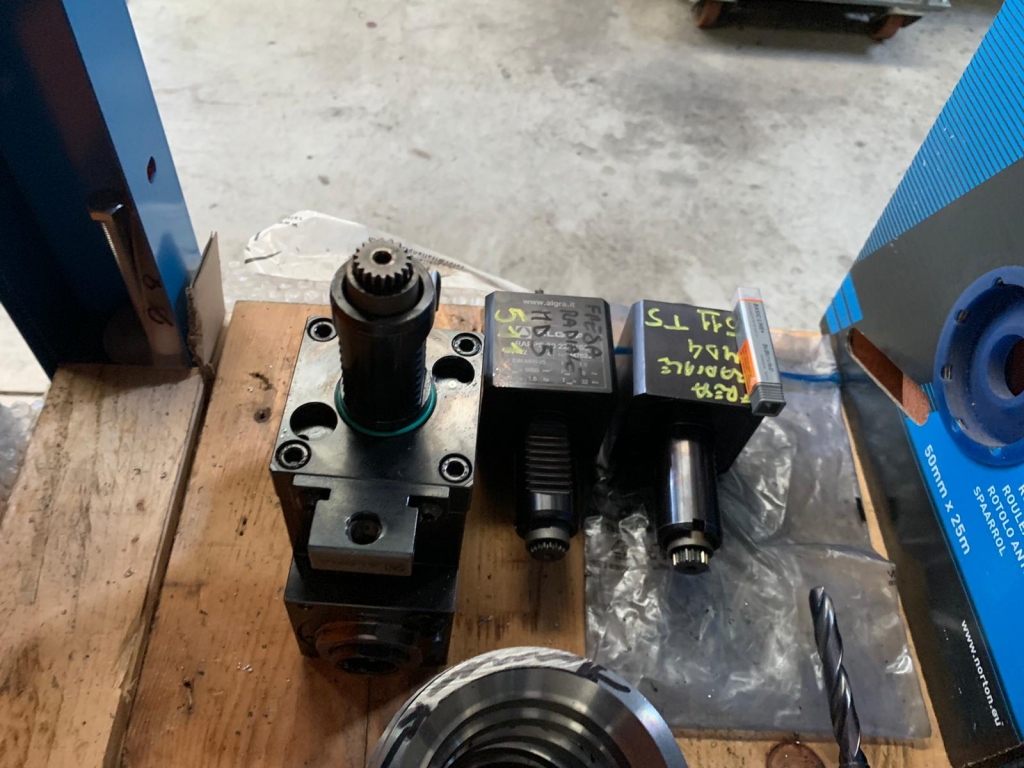

Number of driven tools included | 6 |
Basic information
Code | 81797E |
Level of machine tool |
standard
|
Brand | Gildemeister |
Model | CTX 310 V6 Y |
Construction year | 2009 |
Complete data sheet
macchina perfettamente funzionante collegata possibile effettuare qualsiasi prova
mandrino principale contro mandrino e mandrini motorizzati a 6000 giri
comando idraulico per mandrino principale e secondario con pressioni differenziate regolabili
gruppo pompa refrigerante a 12 bar
lavaggio ganasce
refrigerazione impianto idraulico mandrini
motori in asse
mano preleva pezzo
illuminazione area di lavoro
predisposizione per spingi barra e robot
wi-fi integrato per scambio dati
asse c. per mandrino principale e contro mandrino
Manuali manutenzione e programmazione e software

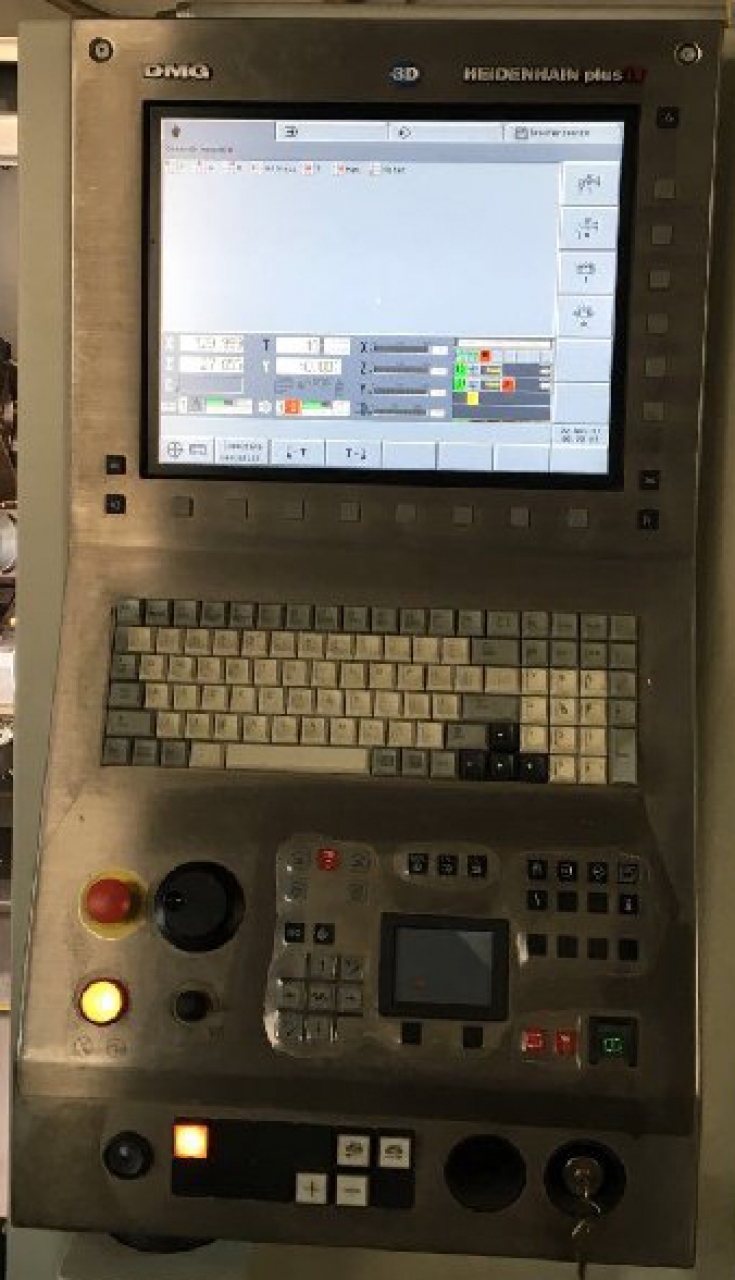

Controllo haidenhain 3 sistemi di progarammazione
Conversazione (turn plus) passo passo,
Din Plus e isoDimensions and weight
Length | 3100 mm |
Width | 1600 mm |
Height | 1730 mm |
Weight | 3200 Kg |
