Tornio Motorizzato Okuma LB10IIM
Technical specifications

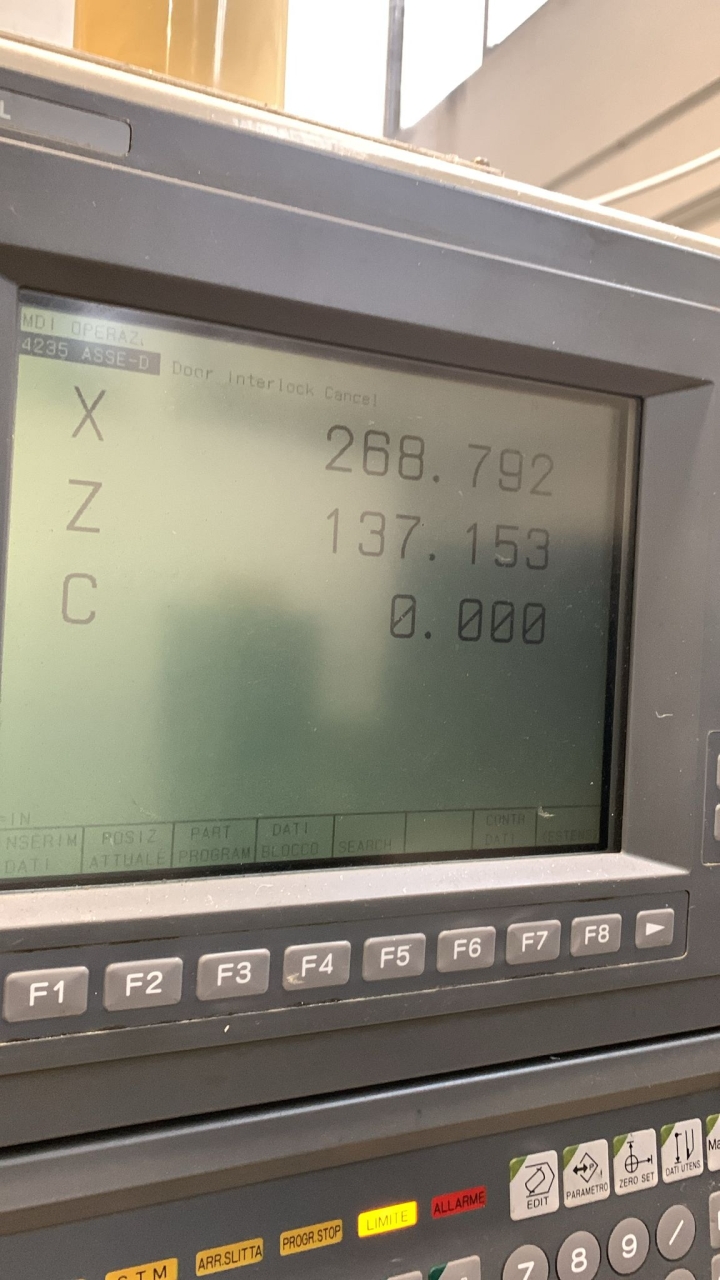

| CNC Model | Okuma OSP |
| CNC version | OSP 700 L |
| Main spindle nose | ASA 6 |
| Power main spindle | 7,5 Kw |
| Main spindle chuck diameter | 165 mm |
| Main spindle bar diameter | 42 mm |
| Max turning diameter | 170 mm |
| Max turning lenght | 300 mm |
| Main spindle RPM | 6000 |

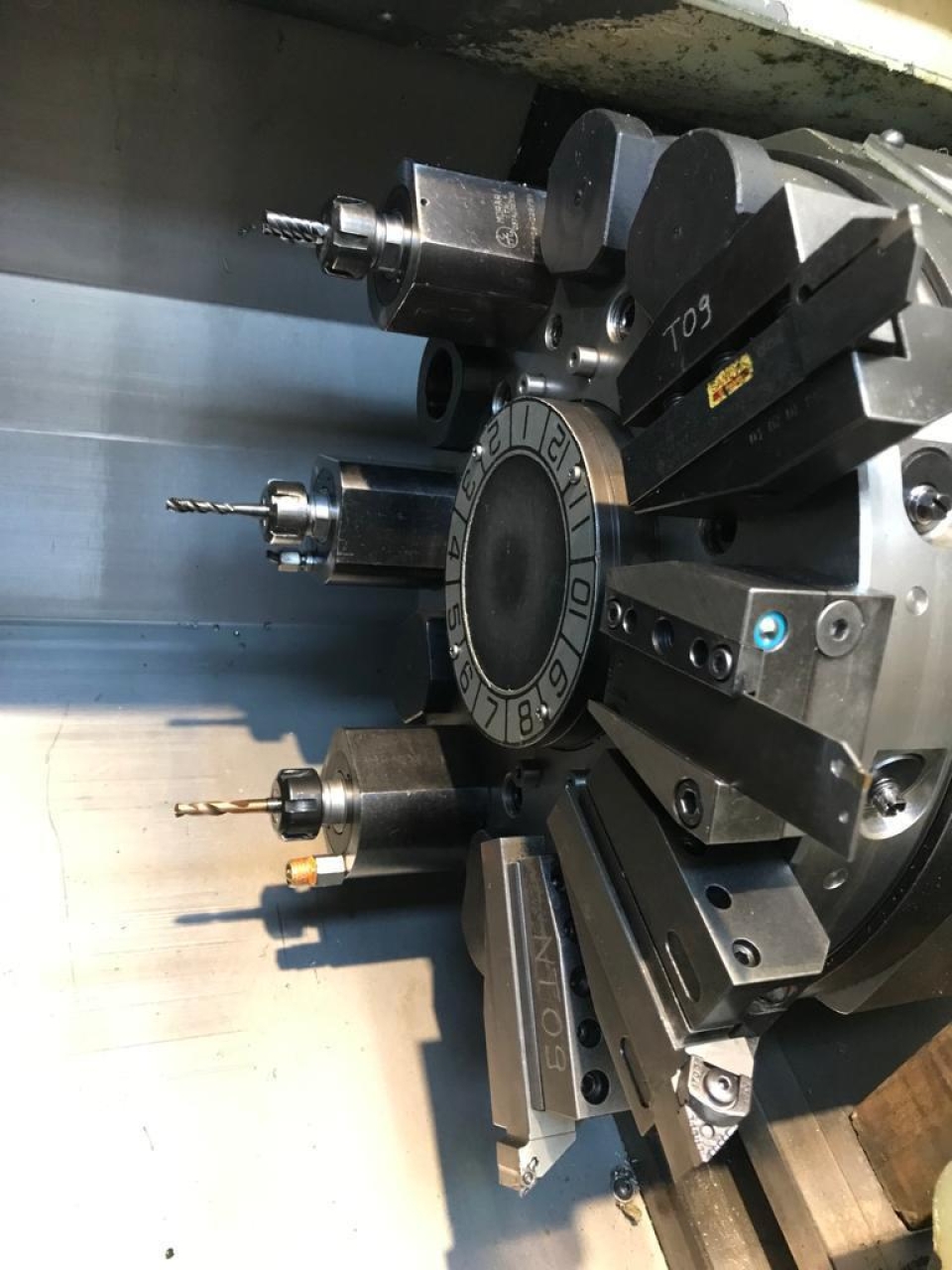

| Number of turrets | 1 |
| Number tool posts on the 1th turret | 12 |
| Number of driven tool posts on the 1th turret | 12 |
| Tool holder type 1th turret | VDI |
| X-axis travel 1th turret | 150 mm |
| Z-axis travel 1th turret | 350 mm |
| Rapid linear axis feeds X Y Z | 20 m/min |
| Tailstock | yes |
| Cheap conveyor | Hinged Belt |
| Presetting | yes |
Basic information
| Brand | Okuma |
| Model | LB10IIM |
| Construction year | 1998 |
| Code | D1B40D |
| Level of machine tool |
standard
|
Machine equipment

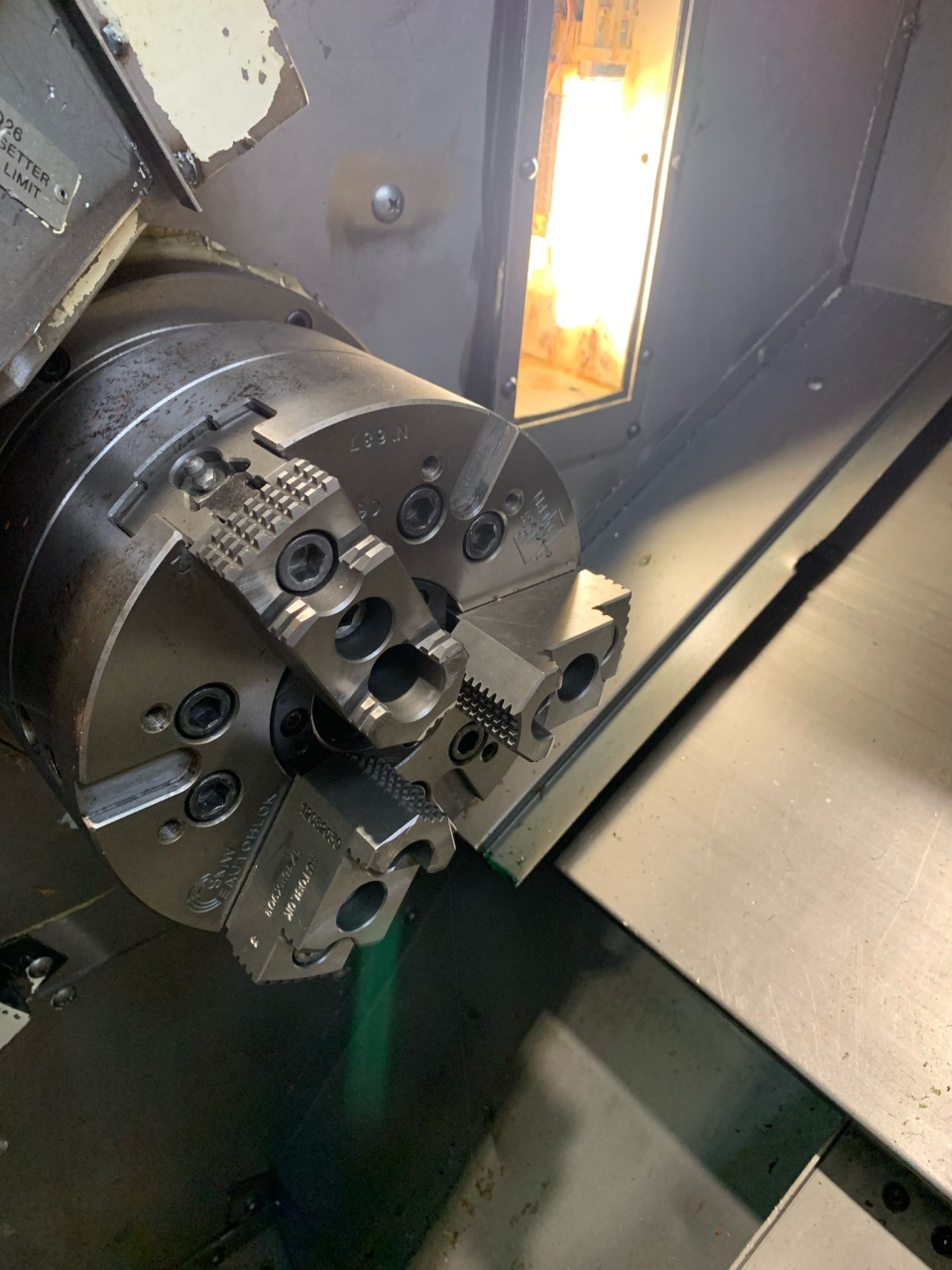

Mandrino autocentrante Autoblok D210 (MONTATO IN MACCHINA – CANOTTO REVISIONATO)
N.3 Portautensili motorizzati frontali
N.4 Porta utensili da esterni
N1. Porta Maschi NUOVO VDI30
N.1 Porta Pinze per punte VDI30 NUOVODimensions and weight
| Length | 2000 mm |
| Width | 1635 mm |
| Weight | 3500 Kg |
