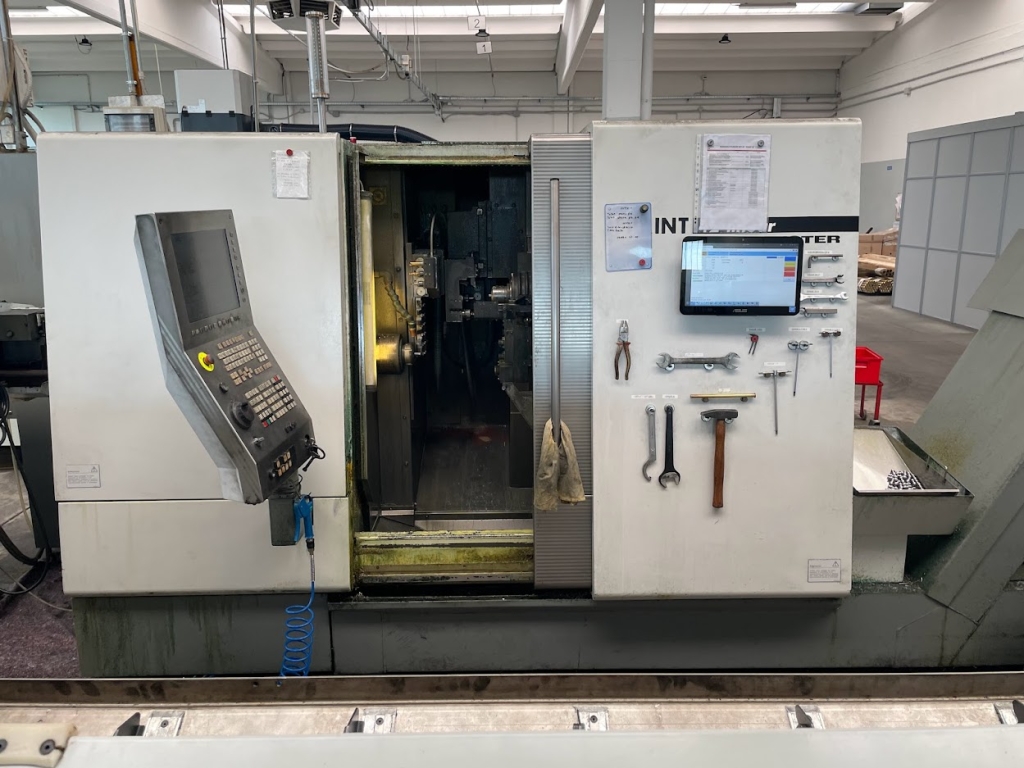

Tornio Multiasse Sprint 42 Linear
Technical specifications

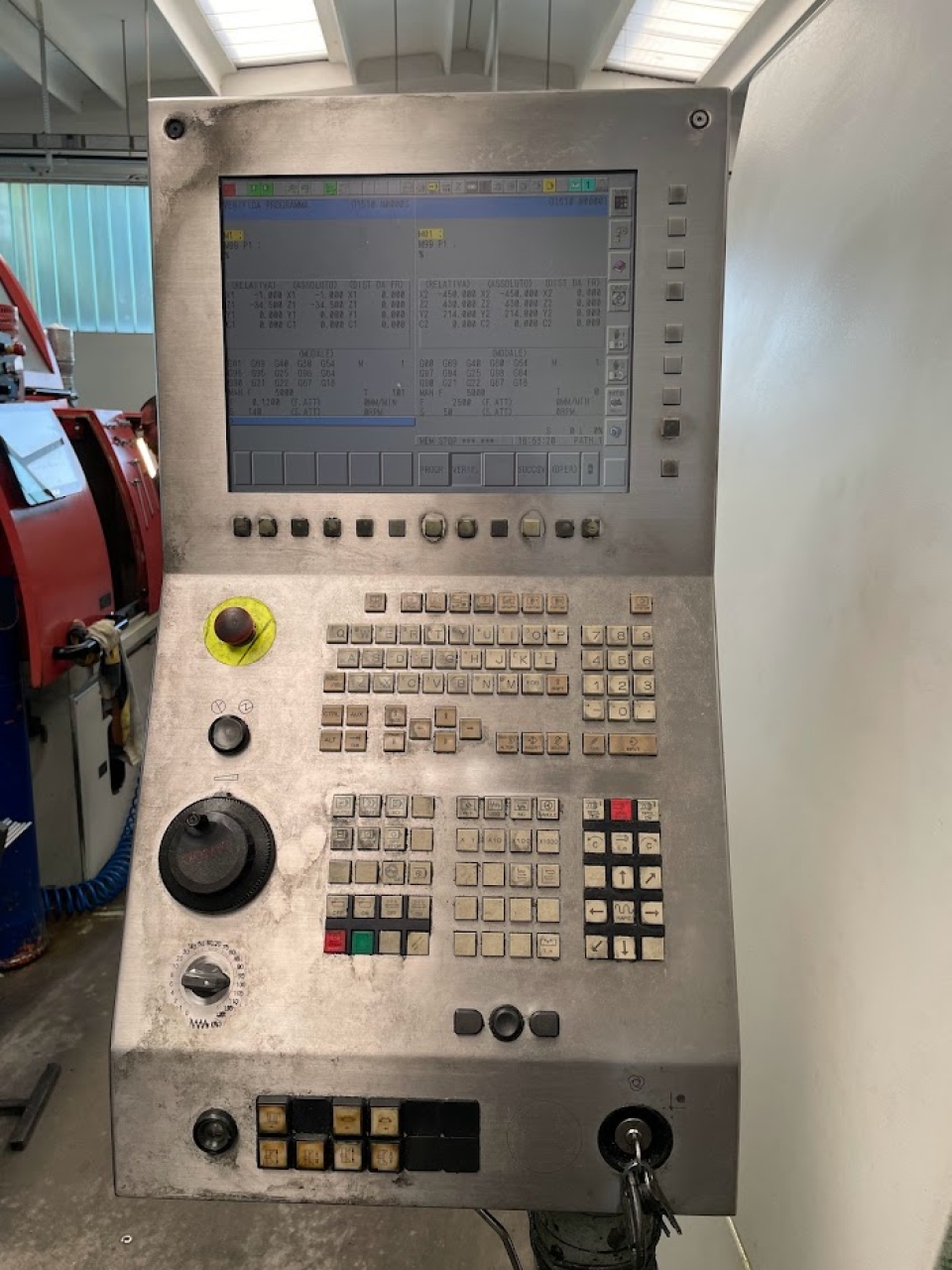

| CNC Model | Fanuc |
| Power main spindle | 7,5 Kw |
| Main spindle bar diameter | 42 mm |
| sliding headstock travel (Z1) | 120 mm |
| Main spindle RPM | 6500 |
| fixed sliding headstock | yes |
| Number of linear axes | 6 |
| Number of fixed tools Tool holder plate | 6 |
| Number of driven tools Tool holder plate | 4 |
| X1-axis travel | 65 mm |
| Y1-axis travel | 350 mm |
| Rapid linear axis feeds X Y Z | 30 m/min |
| High coolant pressure | yes |
| System with external tank with filter | yes |
| Subspindle | yes |
| Sub spindle RPM | 6500 |
| Subspindle power | 5,5 Kw |
| Bar diameter | 38 mm |
| X-axis travel sub spindle | 265 mm |
| Z-axis travel sub spindle | 320 mm |
| Fixed front-end face tools subspindle | 4 |
| Number of Back fixed tool posts | 7 |
| Number of Back driven tool posts | 4 |
| Y-axis travel | 326 |
| Coolant used | emulsion |

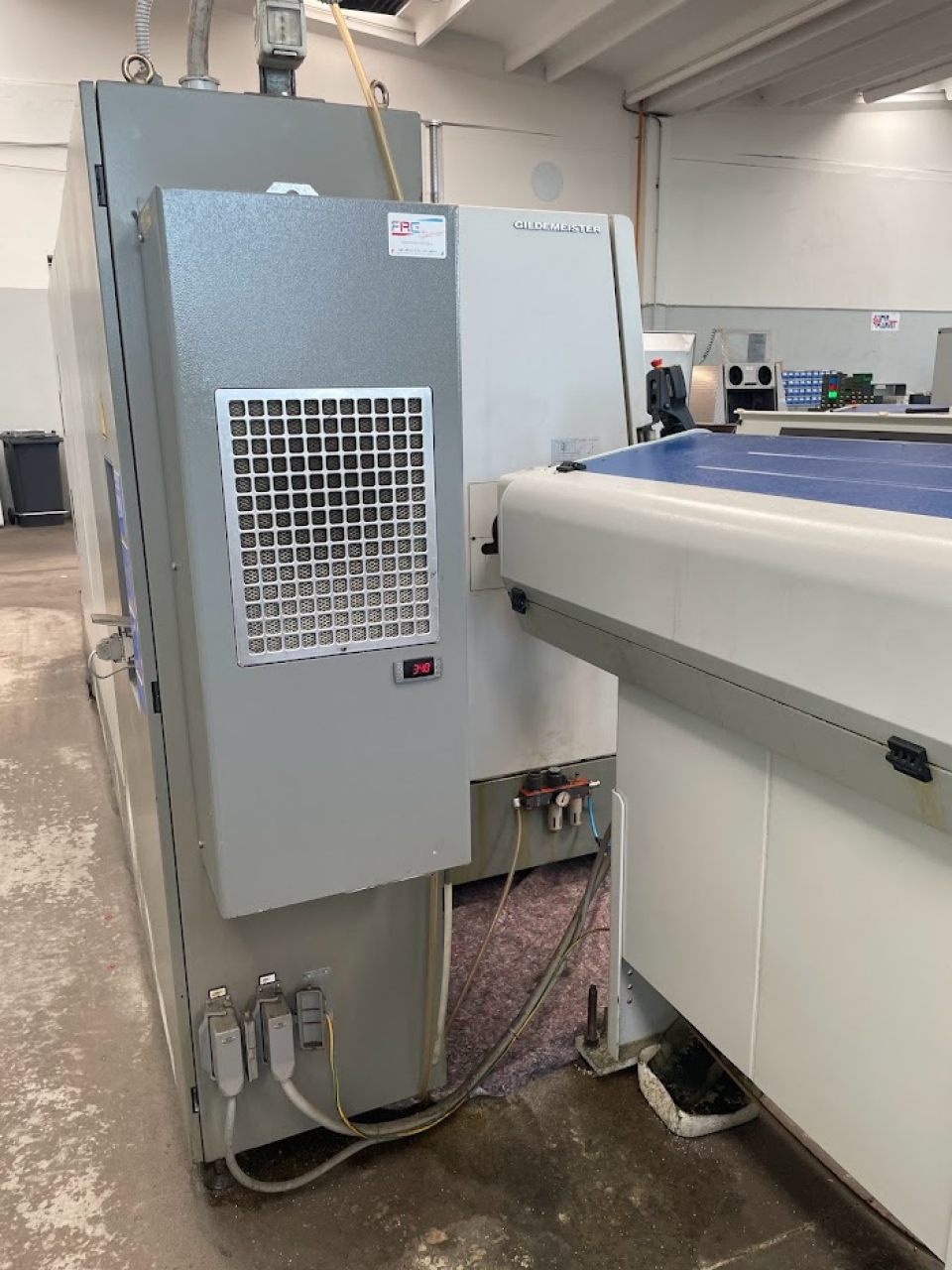

| Barfeeder model and brand | Iemca 545 E |
| Cheap conveyor | Hinged Belt |
Basic information
| Code | 2DA8F5 |
| Level of machine tool |
standard
|
| Brand | Gildemeister |
| Model | Sprint 42 |
| Construction year | 2005 |
Complete data sheet
Dati indicativi da verificare in locoDimensions and weight
| Length | 4329 mm |
| Width | 1660 mm |
| Height | 1933 mm |
| Weight | 5500 Kg |
