Tornio A Fantina Mobile Star SR-38 Type B
Technical specifications

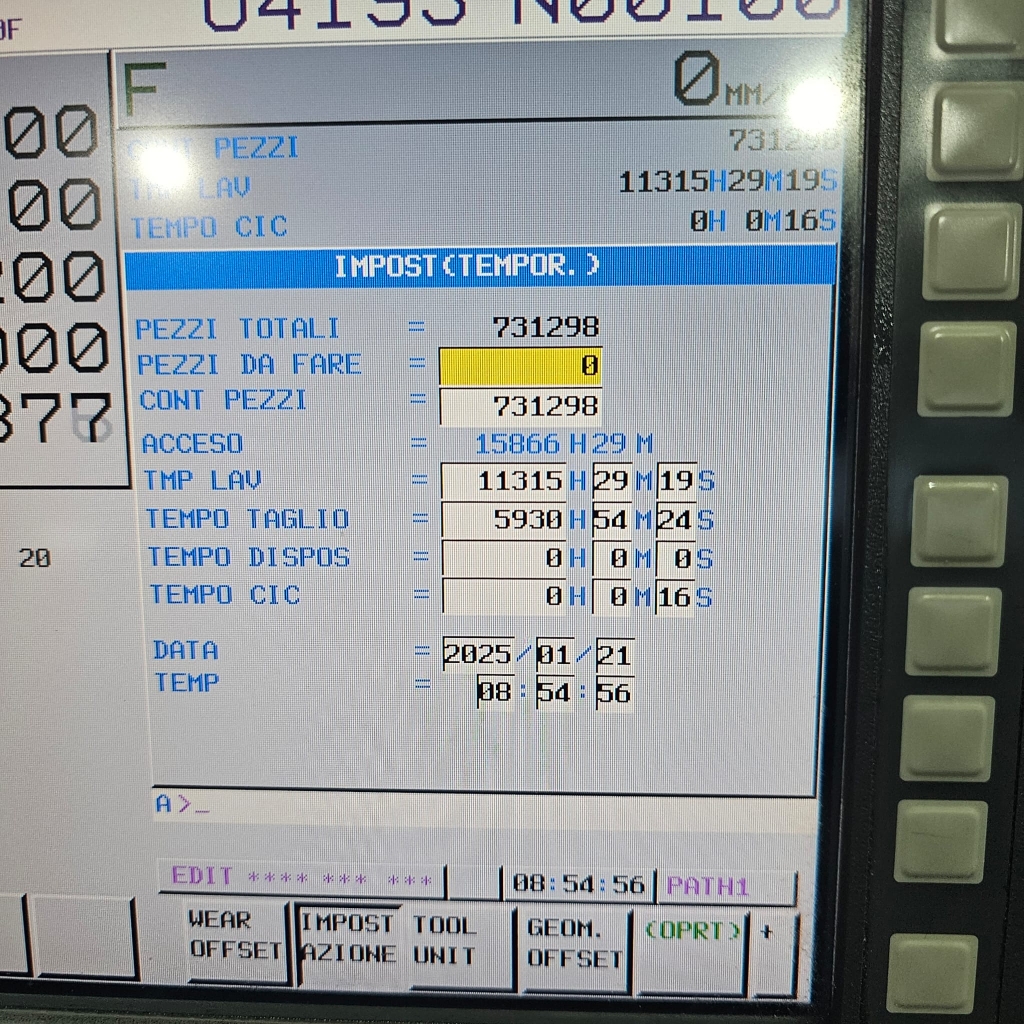

| CNC Model | Fanuc |
| CNC version | 31i - Model BS |
| Power main spindle | 11 Kw |
| Main spindle bar diameter | 38 mm |
| sliding headstock travel (Z1) | 320 mm |
| Main spindle RPM | 6000 |

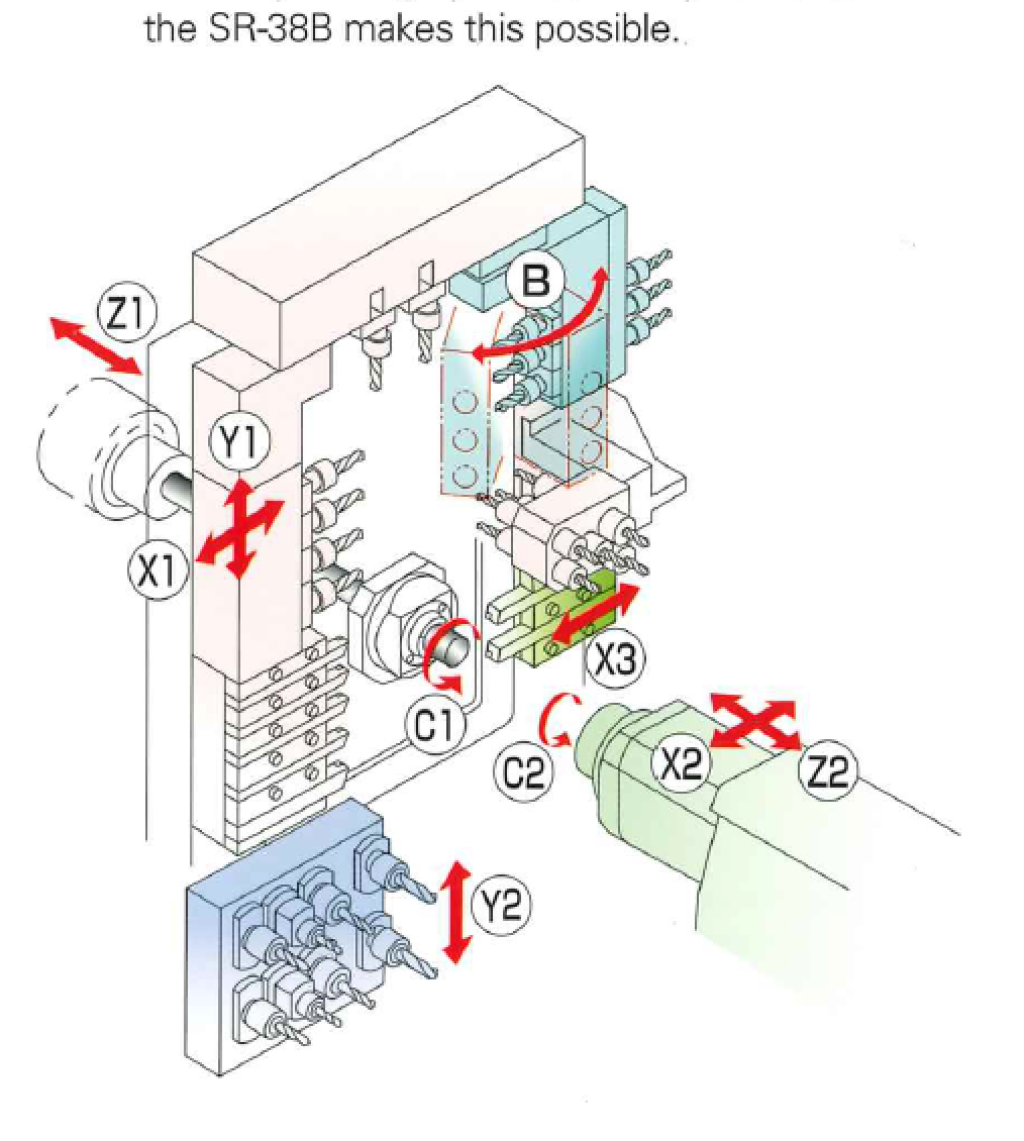

| Number of linear axes | 7 |

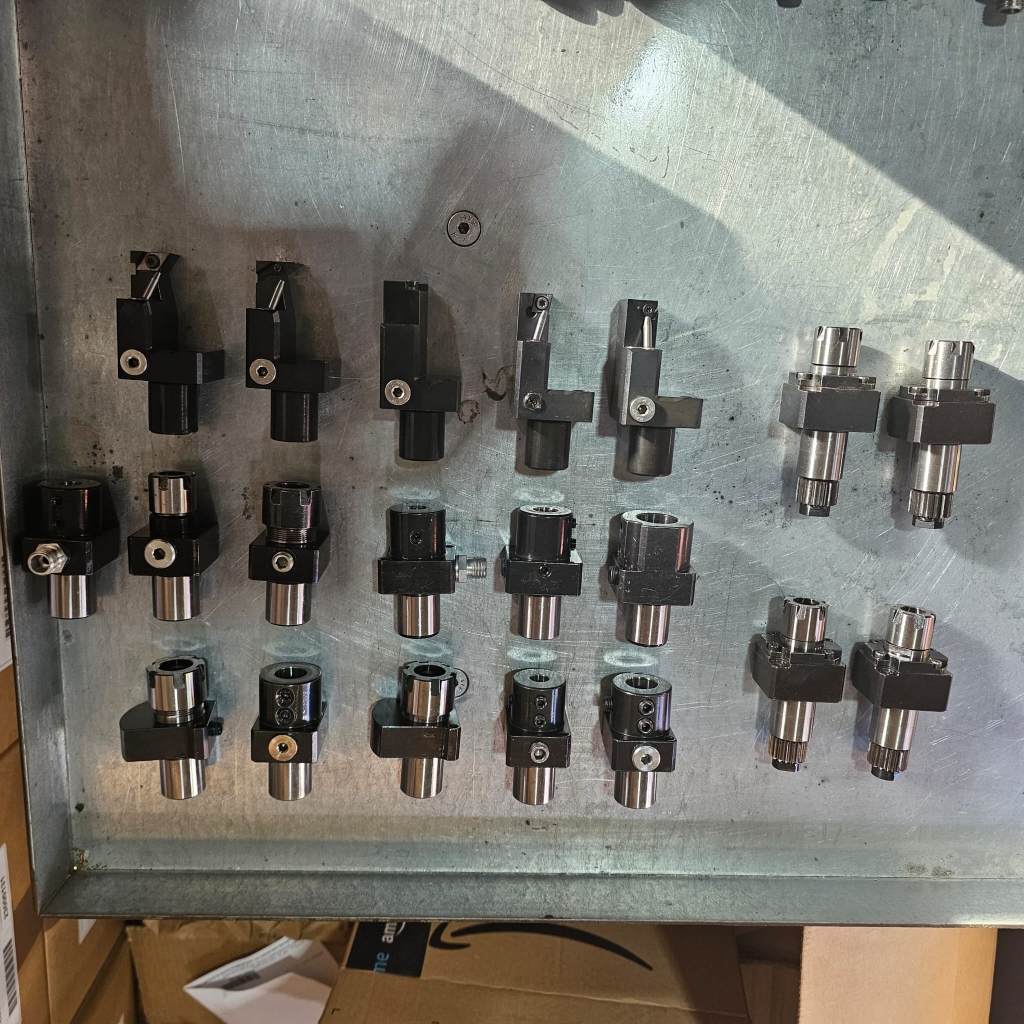

| Number of fixed tools Tool holder plate | 5+5+2 |
| Number of driven tools Tool holder plate | 9 |
| Rapid linear axis feeds X Y Z | 36 m/min |
| High coolant pressure | yes |
| Pressure value | 70 bar |

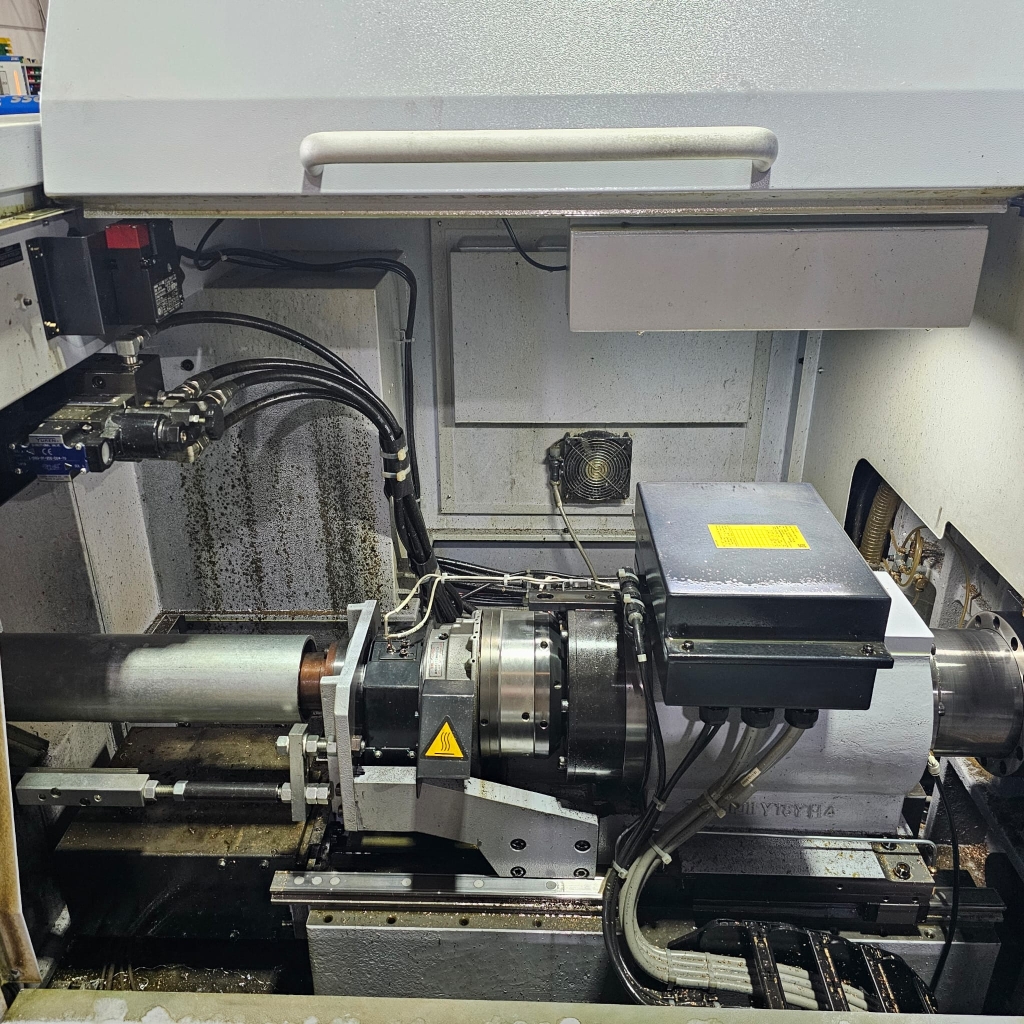

| Subspindle | yes |
| Sub spindle RPM | 7000 |
| Subspindle power | 5,5 Kw |
| Bar diameter | 38 mm |
| Number of Back driven tool posts | 8 |
| Coolant used | whole oil |

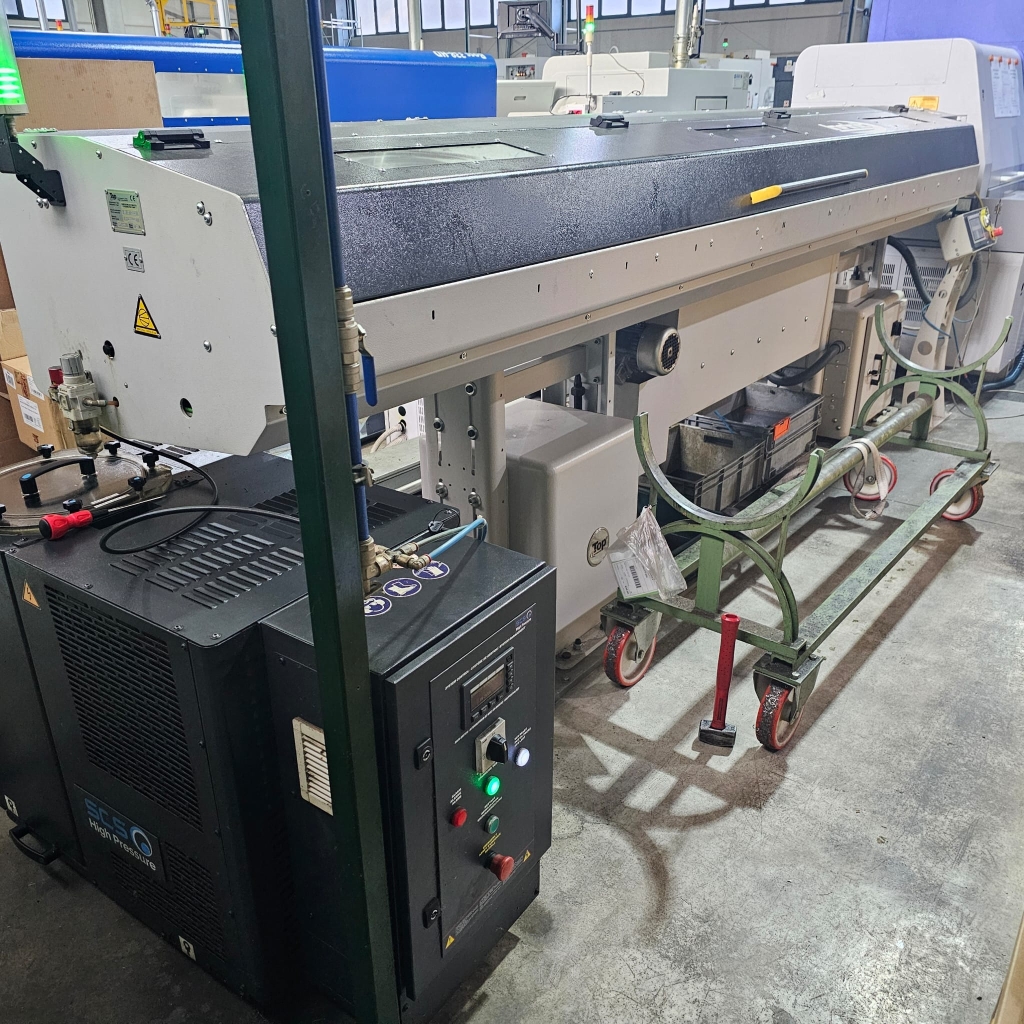

| Barfeeder model and brand | TOP INFINITY-S 345 |

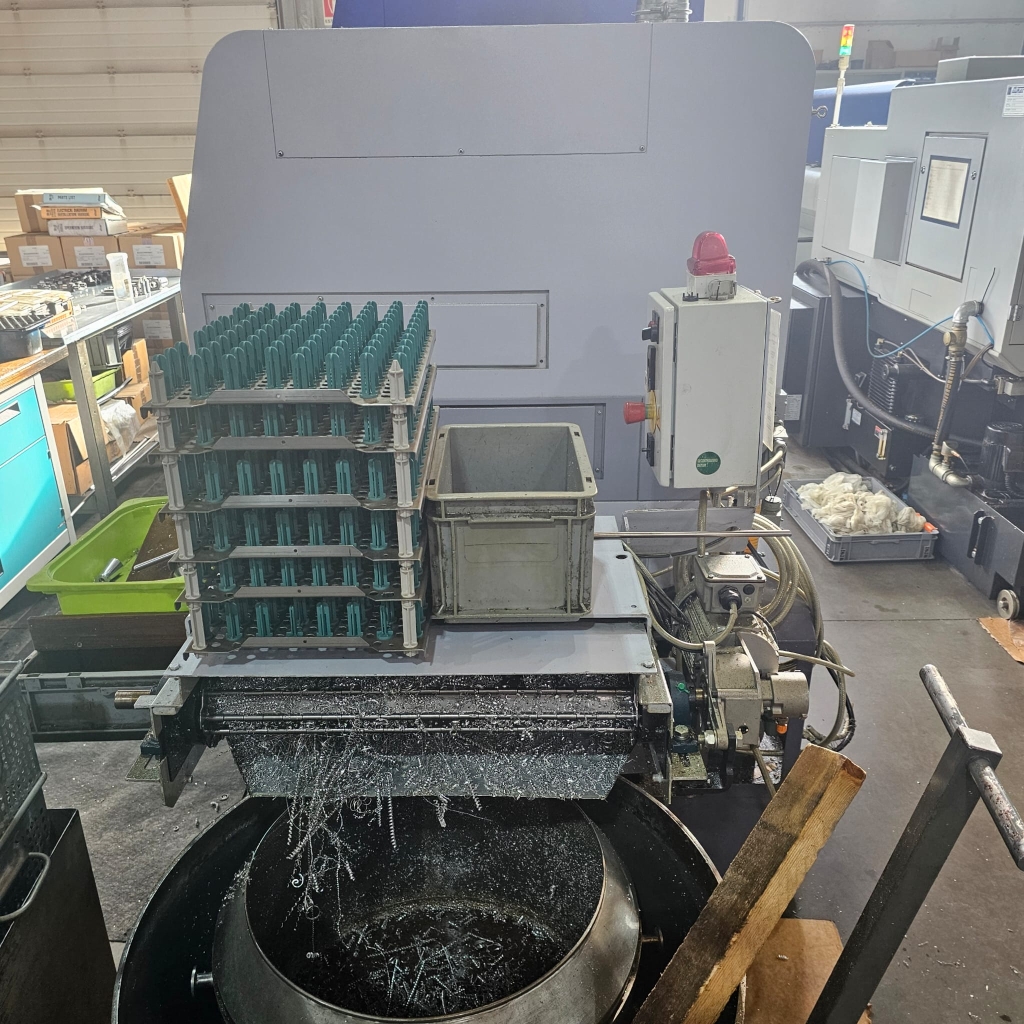

| Cheap conveyor | Hinged Belt |
Basic information
| Code | 867C59 |
| Level of machine tool |
standard
|
| Brand | Star |
| Model | SR-38 Type B |
| Construction year | 2020 |
Complete data sheet
Asse B controllato
Impianto bloccaggio mandrino e contromandrinoMachine equipment
Rilevatore rottura lama di troncatura
Attrezzature varie, motorizzato posteriore porta fresa, motorizzati assiali
Frigorifero raffreddamento refrigeranteDimensions and weight
| Length | 2740 mm |
| Width | 1315 mm |
| Height | 2120 mm |
| Weight | 4300 Kg |
