Tornio Emag VL2
Technical specifications

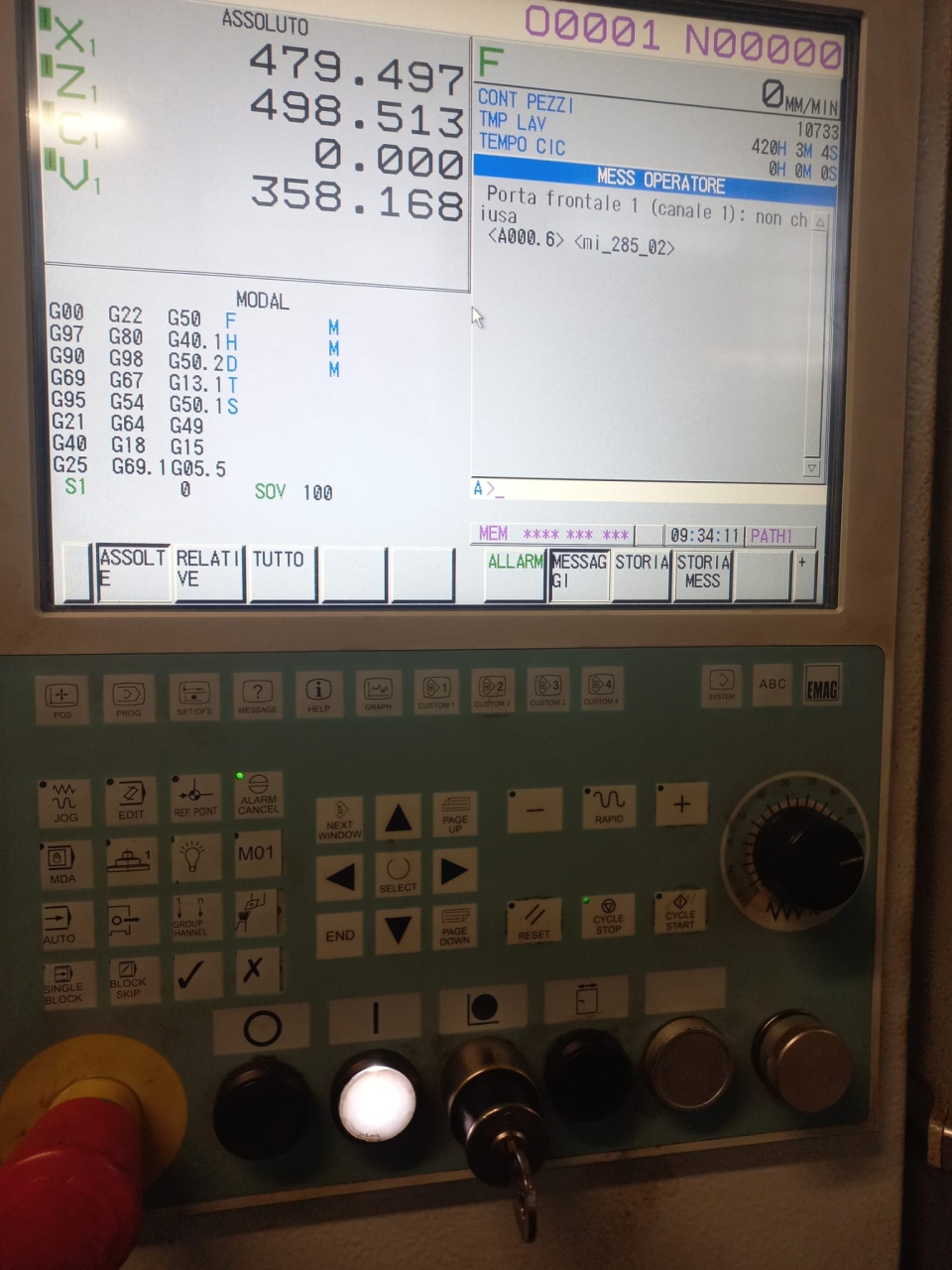

| CNC Model | Fanuc |
| CNC version | 32iB |
| Main spindle nose | ASA 5 |
| Inverted spindle lathe | yes |
| X-axis spindle travel | 650 mm |
| Z-axis spindle travel | 400 mm |
| Material Stocker Systems | yes |
| Number of pallets | 24 |
| Power main spindle | 19,5 Kw |

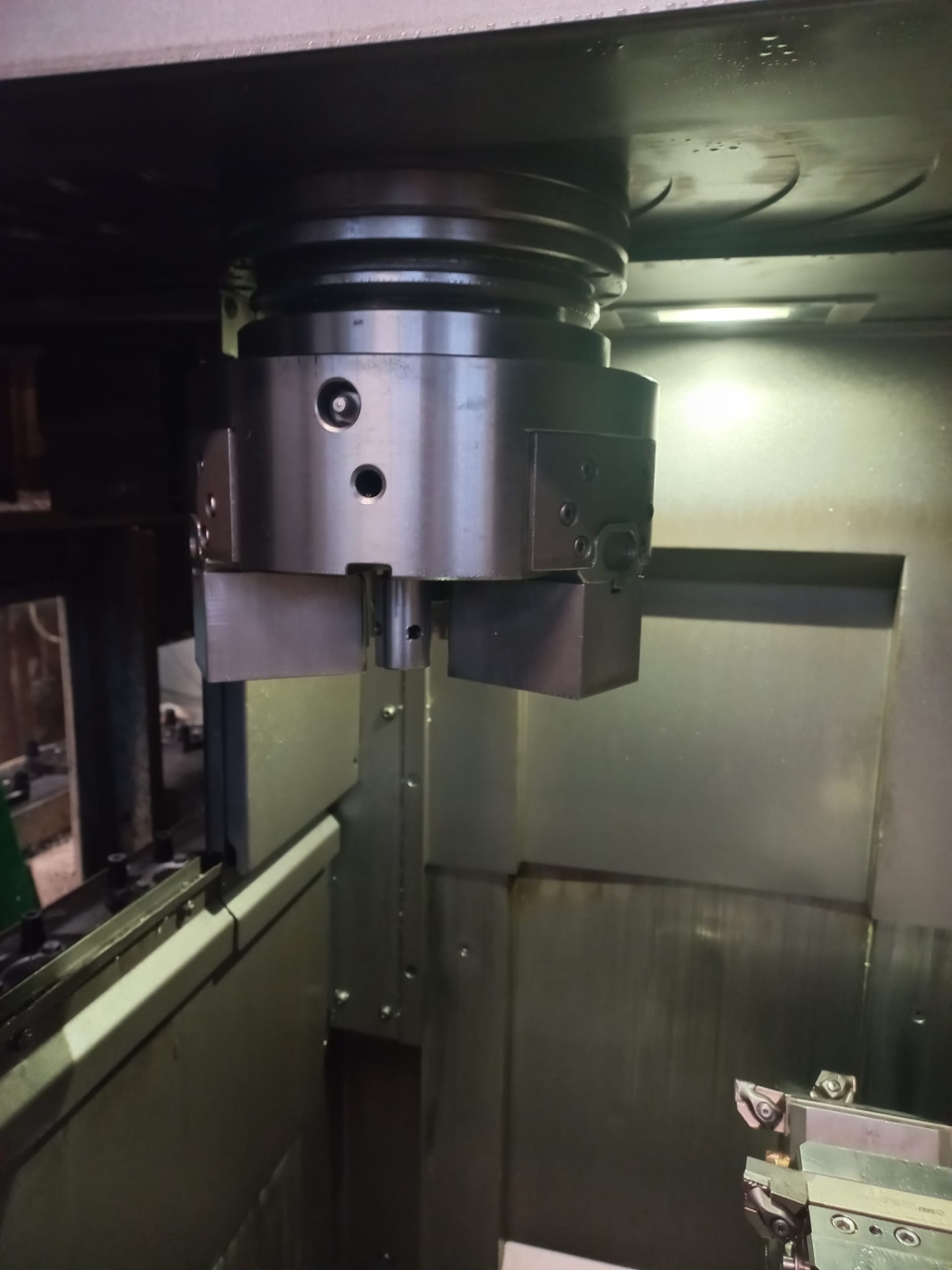

| Main spindle chuck diameter | 160 mm |
| Max turning diameter | 200 mm |
| Main spindle RPM | 6000 |

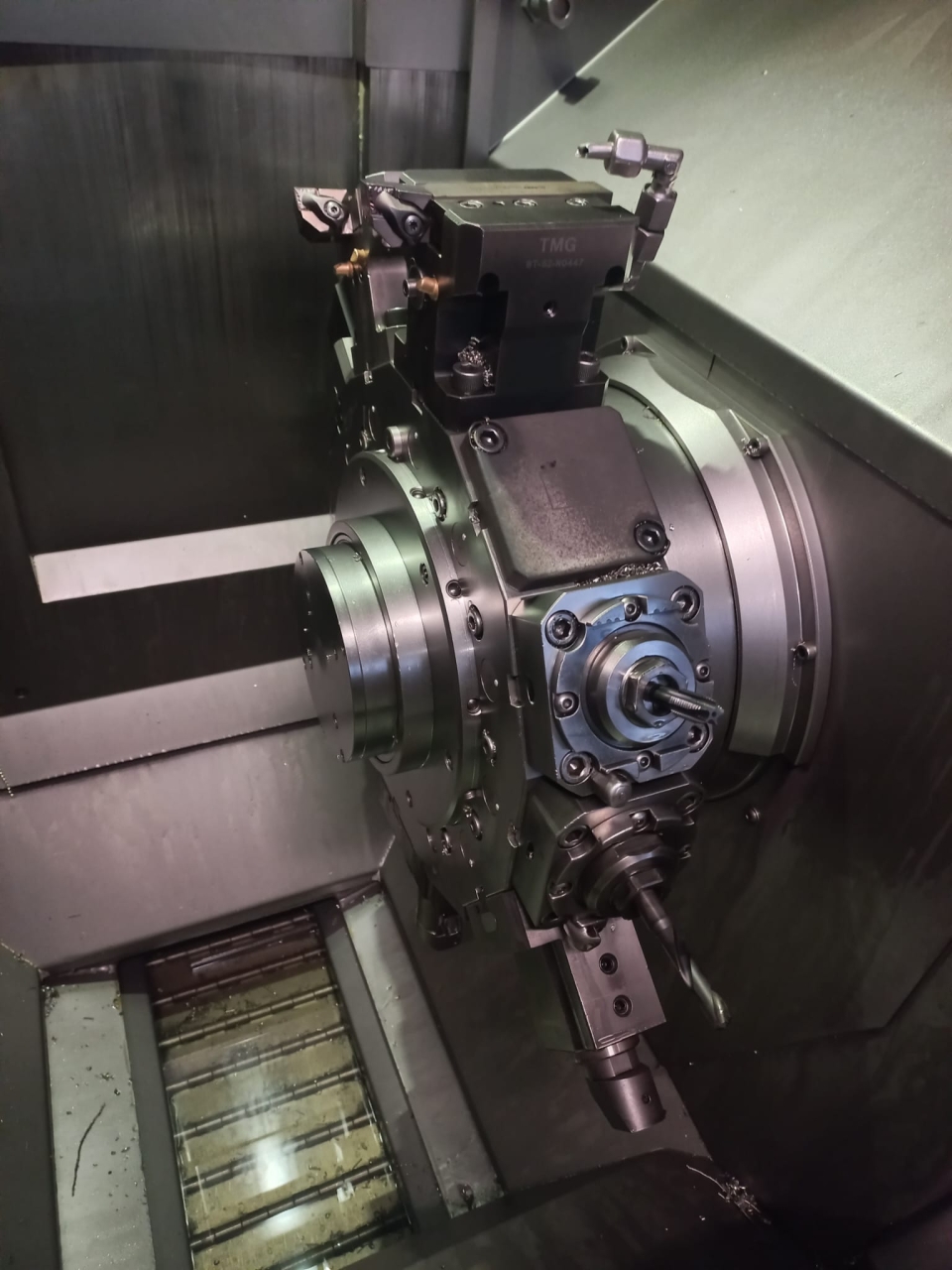

| Number of turrets | 1 |
| Number tool posts on the 1th turret | 12 |
| Number of driven tool posts on the 1th turret | 12 |
| Tool holder type 1th turret | BMT 55 |
| Rapid linear axis feeds X Y Z | 30 m/min |
| High coolant pressure | yes |
| Cheap conveyor | Hinged Belt |
Basic information
| Code | 65797E |
| Level of machine tool |
standard
|
| Brand | Emag |
| Model | VL2 |
| Construction year | 2016 |
Machine equipment
Set di portautensili fissi e motorizzati
Sonda misura pezzi
Possibilità di avere due macchine identicheDimensions and weight
| Length | 4350 mm |
| Width | 1800 mm |
| Height | 2700 mm |
| Weight | 5500 Kg |
