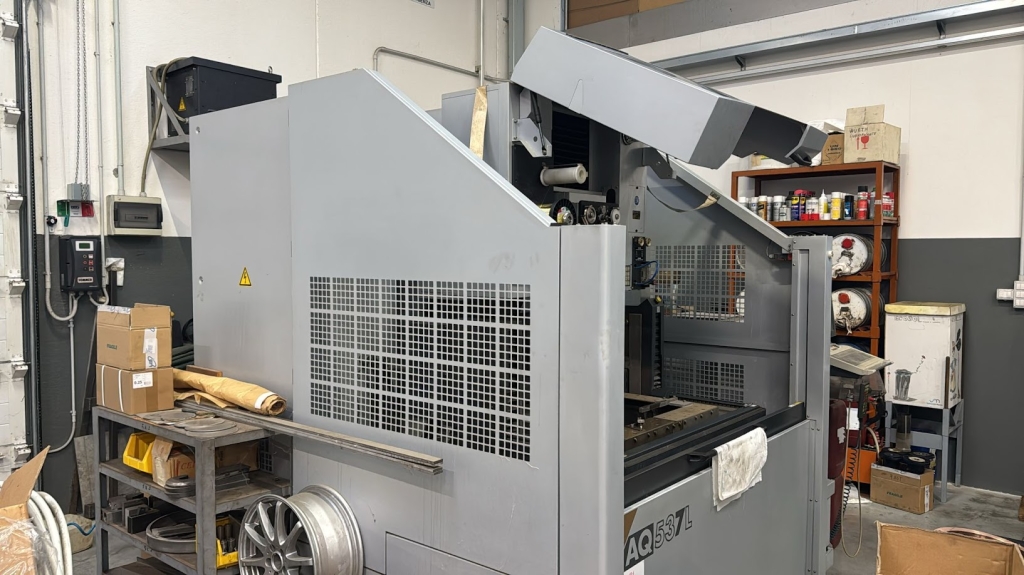

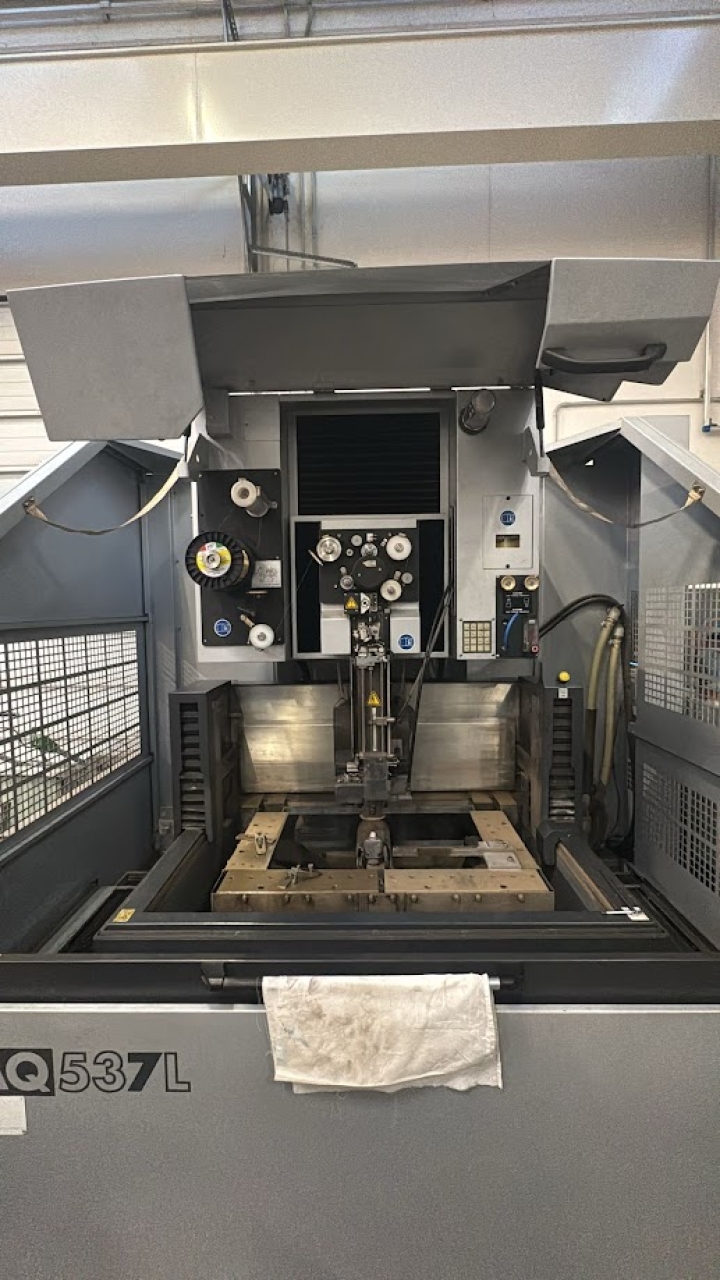

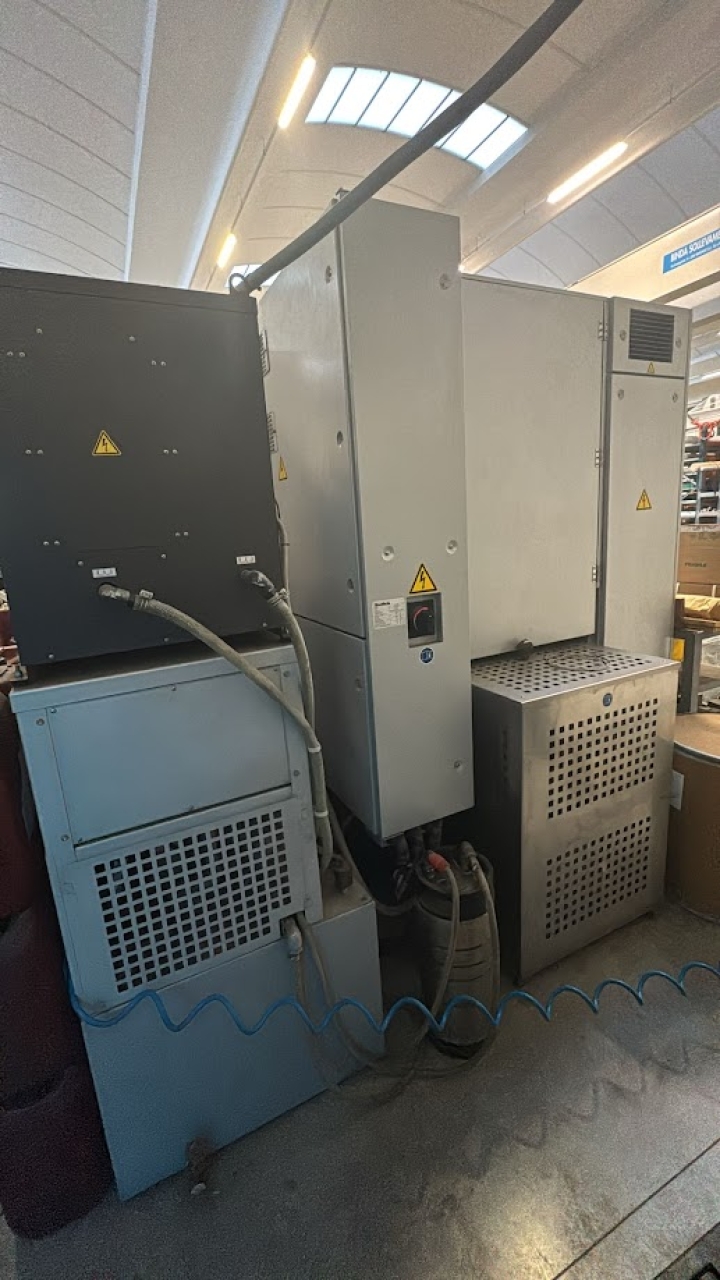

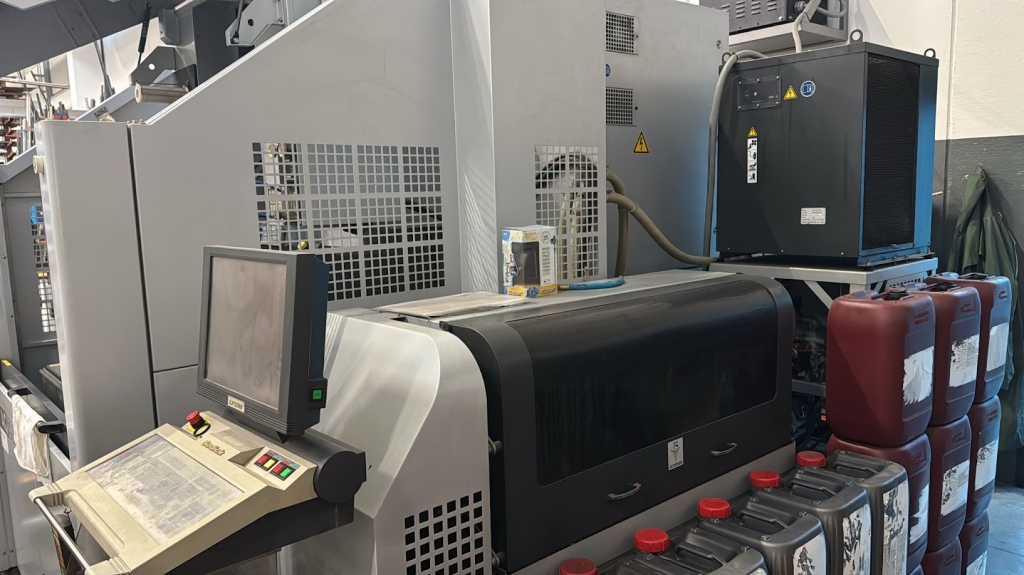

Elettroerosione A Filo Sodick AQ537L
Technical specifications
| CNC Model | Sodick LQ33W |
| CNC version | Sodick LQ33W |
| Tank dimension | 1050 x 710 mm |
| Automatic threading | yes |
| EDM type | immersion |
| Maximum wire inclination | ±25° / 120 mm |
| Wire diameters | 0.10 - 0.30 mm |
| X-axis travel | 570 mm |
| Y-axis travel | 370 mm |
| Z-axis travel | 350 mm |
| U-axis travel | ±120 mm |
| V-axis travel | ±120 mm |
| Max dimension piece | 770 x 520 x 340 mm |
| Max. work-piece weight | 1000 Kg |
Basic information
| Code | 69870C |
| Level of machine tool |
standard
|
| Brand | Sodick |
| Model | AQ537L |
| Construction year | 2008 |
Complete data sheet
Motori lineari su tutti gli assiDimensions and weight
| Length | 2190 mm |
| Width | 2755 mm |
| Height | 1740 mm |
| Weight | 3500 Kg |
