Fresatrice Lagun BM4
Technical specifications

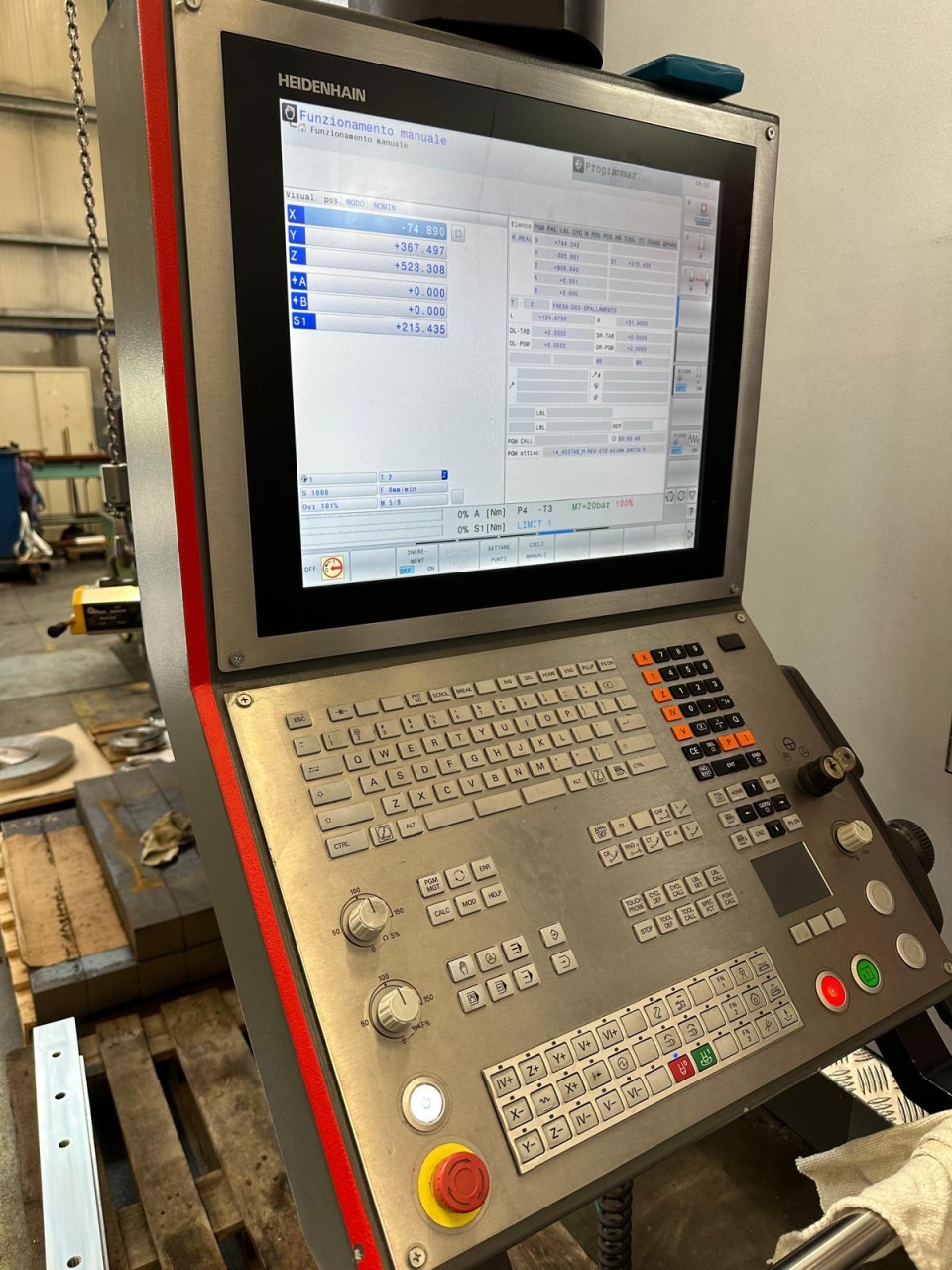

| CNC Model | Heidenhain |
| CNC version | ITNC 640 |

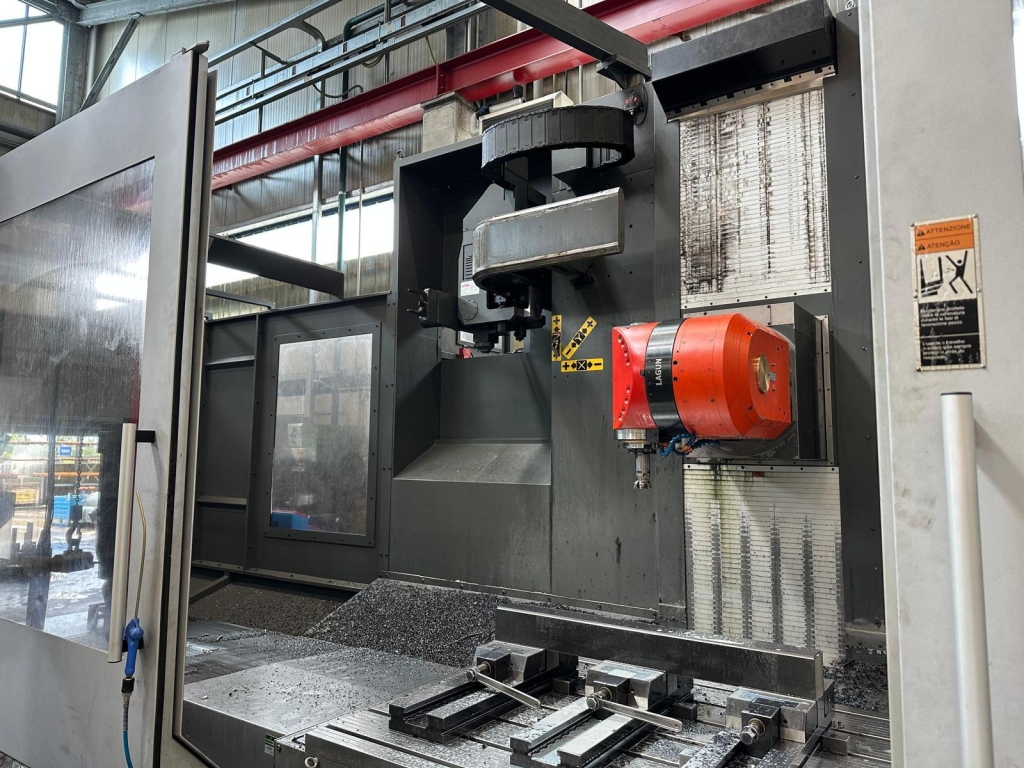

| Head type | Automatic 4th and 5th axis head |
| Additional technical notes for head | Testa posizionabile 0,001° |
| Spindle Taper toolholders | iso 50 |
| Power spindle | 38 Kw |
| RPM | 4000 |
| Number of tools | 40 |
| X-axis travel | 4000 mm |
| Y-axis travel | 1300 mm |
| Z-axis travel | 1500 mm |
| Rapid linear axis feeds X Y Z | 20 m/min |
| Table dimension | 4100 x 1100 mm |
| Maximum load allowed | 12000 Kg |
| Guide | Linear guide |
| ROTARY TABLE 4th axis | yes |
| Rotation | continuous |
| Type milling machine | Bed type |
| Cheap conveyor | Hinged Belt |
Basic information
| Brand | Lagun |
| Model | BM4 |
| Construction year | 2022 |
| Code | 6880EF |
| Level of machine tool |
standard
|
Machine equipment
righe otticheDimensions and weight
| Length | 10560 mm |
| Width | 4200 mm |
| Weight | 26000 Kg |
