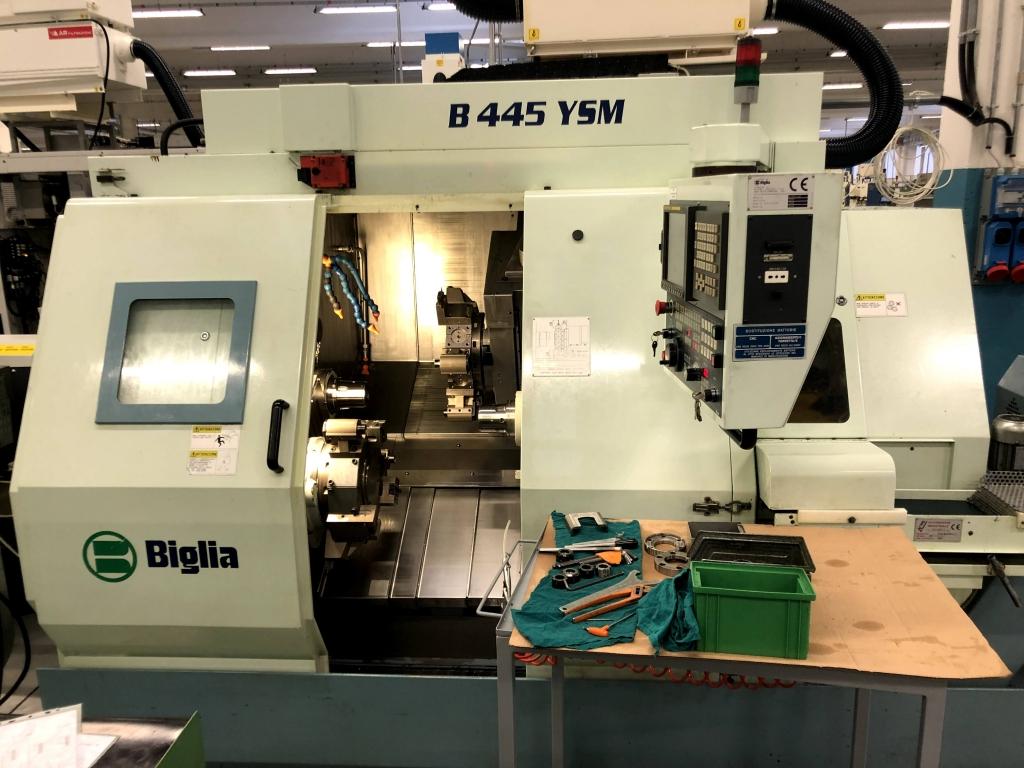

Tornio Biglia B445 YSM
Technical specifications

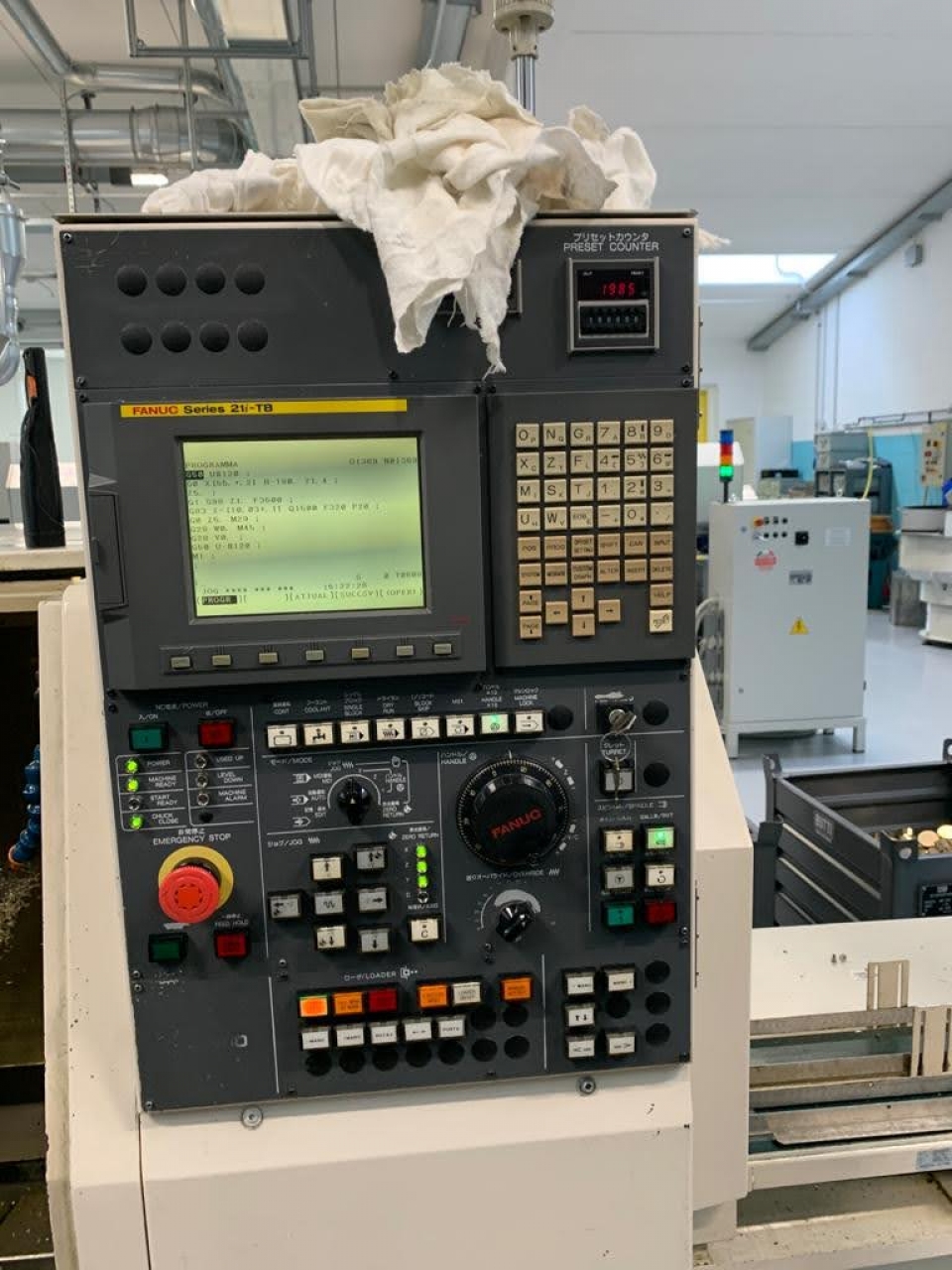

| CNC Model | Fanuc |
| CNC version | 18i-TB |
| Main spindle nose | ASA 5 |
| Power main spindle | 15 Kw |
| Main spindle bar diameter | 45 mm |
| Max turning diameter | 240 mm |
| Max turning lenght | 250 mm |
| Main spindle RPM | 5000 |
| Number of turrets | 2 |
| Number tool posts on the 1th turret | 12 |
| Number of driven tool posts on the 1th turret | 12 |
| X-axis travel 1th turret | 160 mm |
| Y-axis travel 1th turret | + - 50 mm |
| Z-axis travel 1th turret | 390 mm |
| Number tool posts on the 2th turret | 12 |
| Number of driven tool posts on the 2th turret | 12 |
| X-axis travel 2th turret | 160 mm |
| Z-axis travel 2th turret | 240 mm |
| Rapid linear axis feeds X Y Z | 30 m/min |
| Subspindle | yes |
| Nose spindle | ASA 5 |
| Sub spindle RPM | 5000 |
| Subspindle power | 11 Kw |
| Bar diameter | 45 mm |
| Z-axis travel sub spindle | 420 mm |

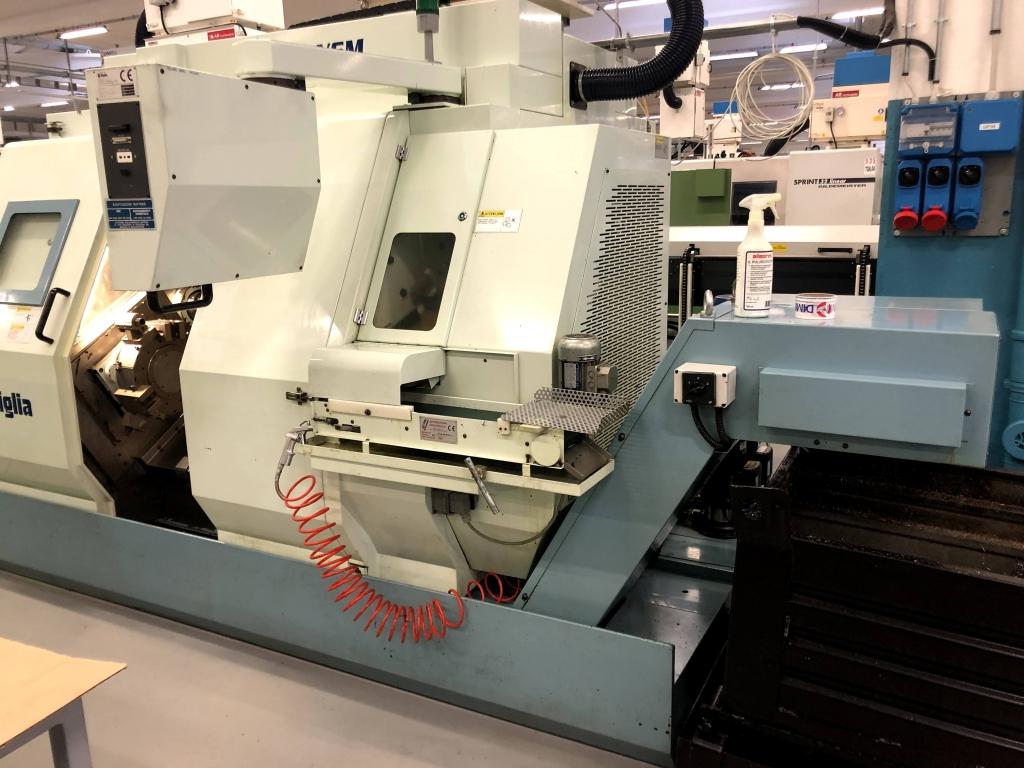

| Barfeeder model and brand | Iemca BOSS 542 |
| Cheap conveyor | Hinged Belt |
| Number of driven tools included | 4 |
| Number of fixed tools included | 20 |
Basic information
| Code | 0ECB91 |
| Level of machine tool |
IB Product
|
| Brand | Biglia |
| Model | B445 YSM |
| Construction year | 2006 |
Complete data sheet
Macchina predisposta per braccio presettingMachine equipment
Boccole per il caricatore diametri : 16-23-26-36-42
La macchina h sempre lavorato ad olio interoDimensions and weight
| Length | 4150 mm |
| Width | 2100 mm |
| Height | 2200 mm |
| Weight | 6800 Kg |
