Tornio Da Barra Takamaz XY 1000
Technical specifications

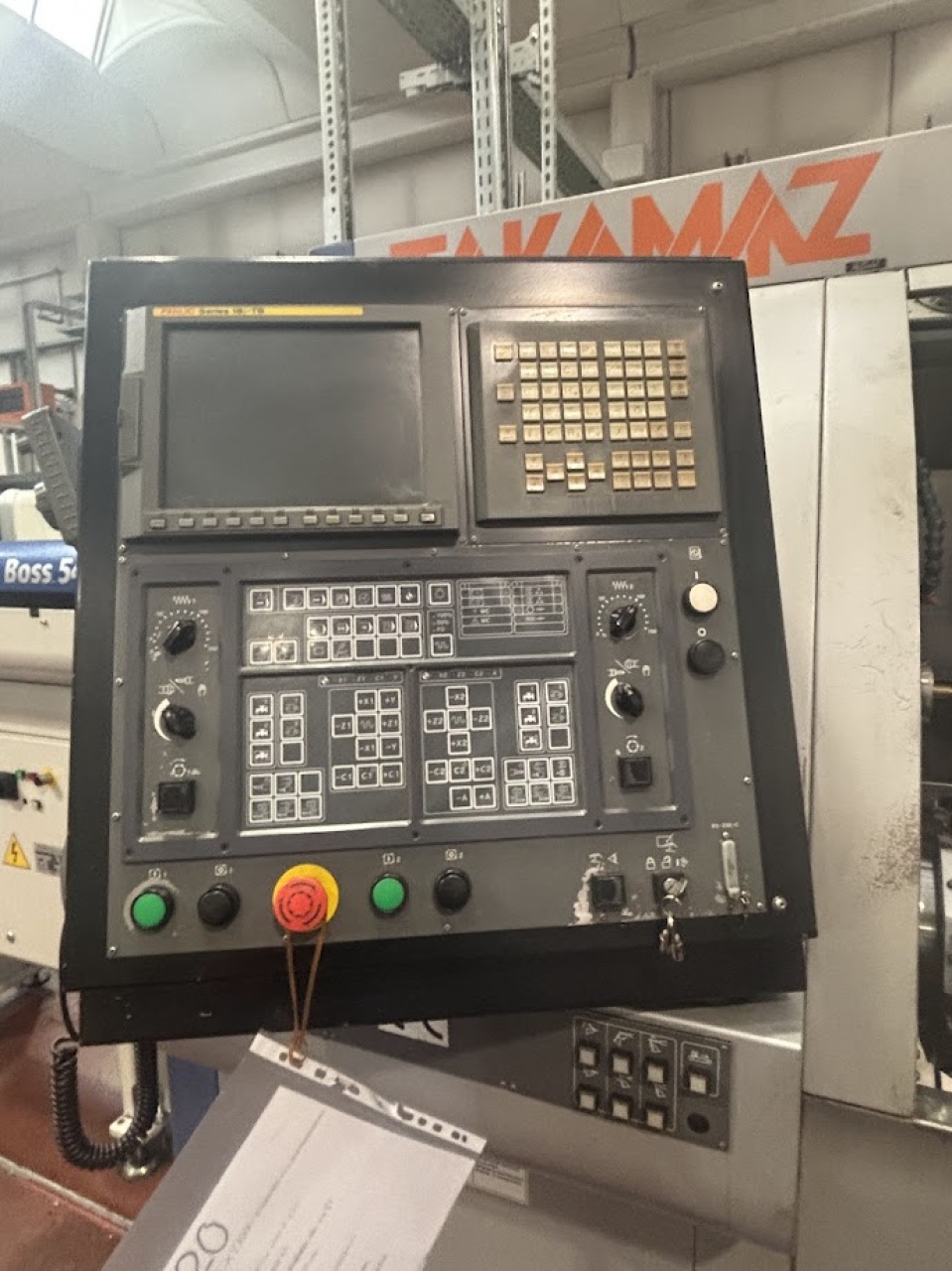

| CNC Model | Fanuc |
| CNC version | 16 |
| Main spindle nose | ASA 5 |
| Power main spindle | 7,5 Kw |
| Main spindle bar diameter | 42 mm |
| Max turning diameter | 190 mm |
| Max turning lenght | 395 mm |
| Main spindle RPM | 5000 |

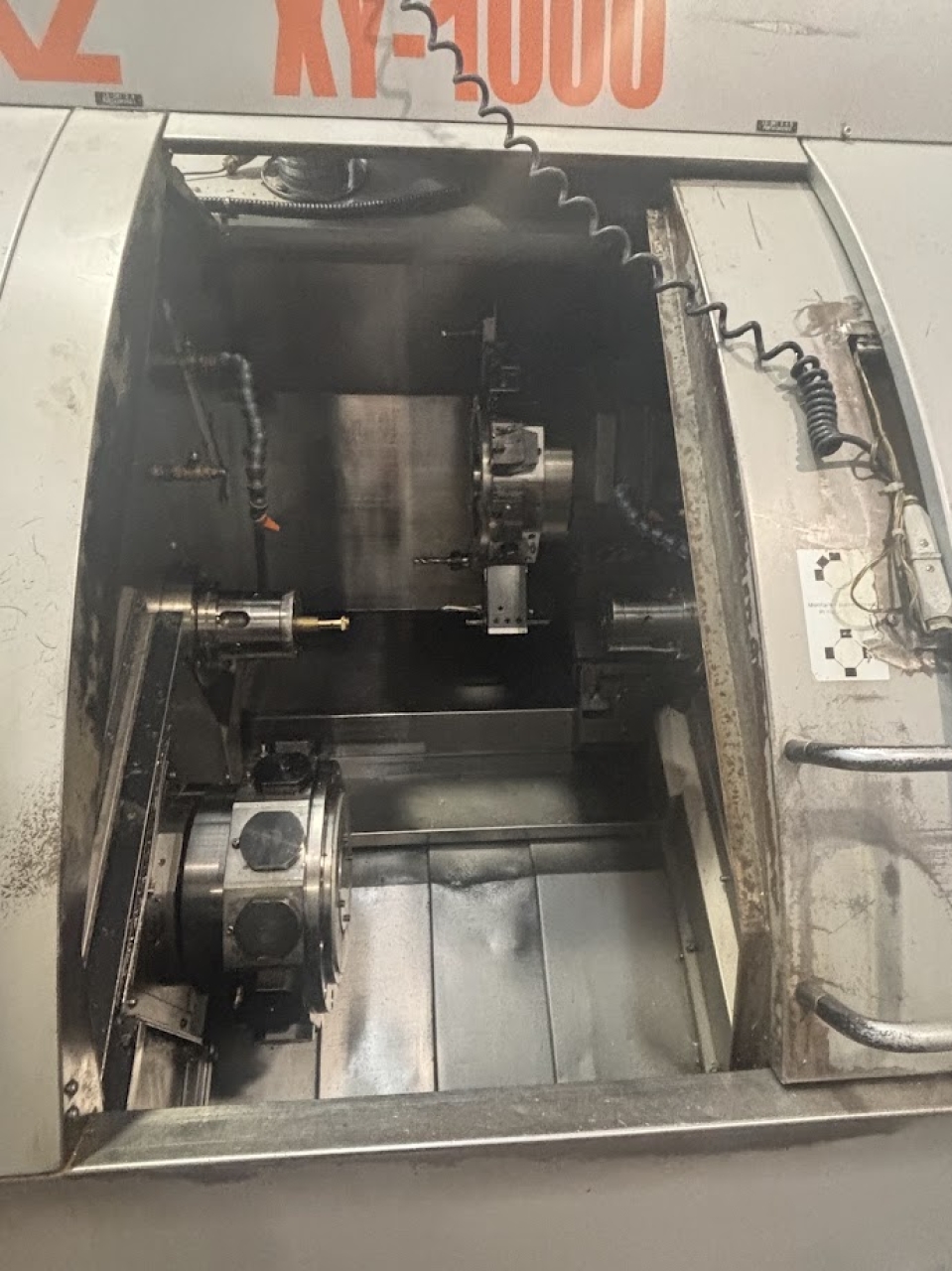

| Number of turrets | 2 |
| Number tool posts on the 1th turret | 12 |
| Number of driven tool posts on the 1th turret | 12 |
| X-axis travel 1th turret | 162,5 mm |
| Y-axis travel 1th turret | + - 30 mm |
| Z-axis travel 1th turret | 450 mm |
| Number tool posts on the 2th turret | 12 |
| Number of driven tool posts on the 2th turret | 12 |
| X-axis travel 2th turret | 160 mm |
| Z-axis travel 2th turret | 450 mm |
| Rapid linear axis feeds X Y Z | 24 m/min |
| Subspindle | yes |
| Nose spindle | ASA 5 |
| Sub spindle RPM | 5000 |
| Subspindle power | 5,5 Kw |
| Z-axis travel sub spindle | 475 mm |

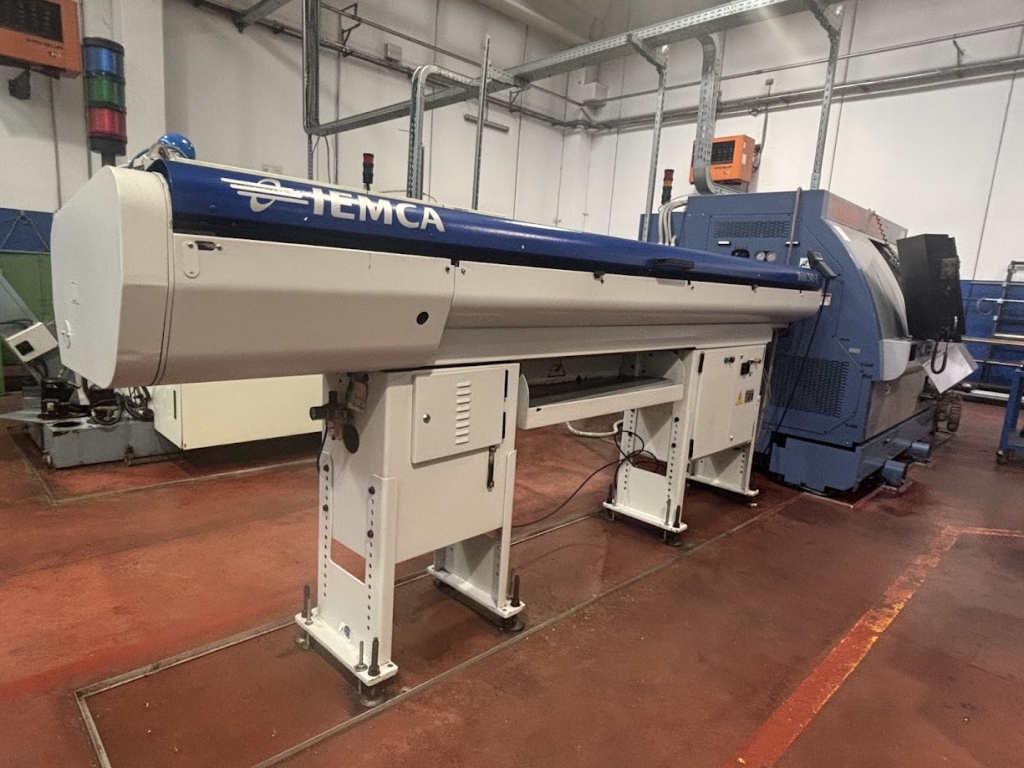

| Barfeeder model and brand | iemca Boss 545 E |
| Cheap conveyor | Hinged Belt |
Basic information
| Brand | Takamaz |
| Model | XY 1000 |
| Construction year | 2005 |
| Code | 3A1BB1 |
| Level of machine tool |
standard
|
Dimensions and weight
| Length | 2950 mm |
| Width | 2015 mm |
| Height | 2000 mm |
| Weight | 7000 Kg |
