Tornio Autoaprendimento CMT TCH 700 X 5000
Technical specifications

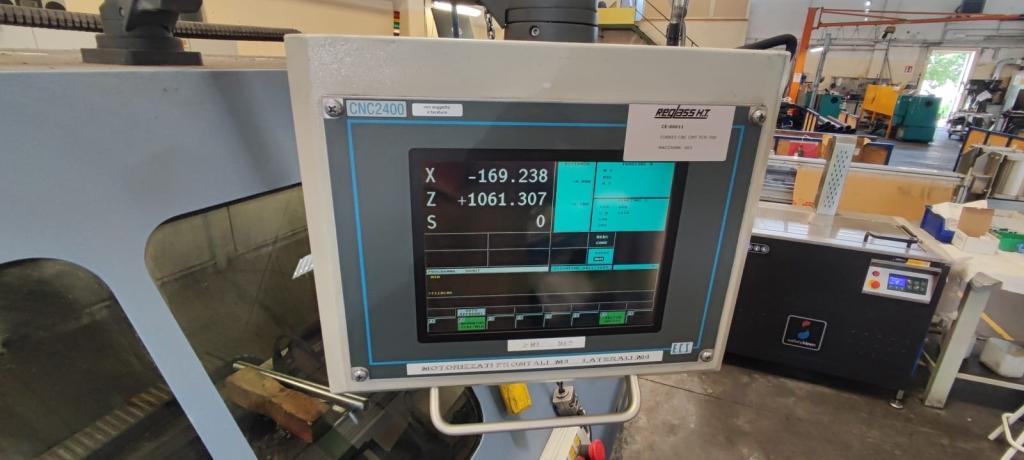

| CNC Model | ECS |
| Nose spindle | ASA 11 |
| Power spindle | 35 Kw |
| max turning diameter | 720 mm |
| max turning diameter over cross slide | 385 mm |
| Max turning lenght | 5000 mm |
| RPM | 2200 |
| Bar diameter | 105 mm |
| Gear box | yes |
| Number of speed | 2 |
| Turret | Automatic |
| Number of turrets | 1 |
| Number tool posts on the 1th turret | 12 |
| Tool holder type 1th turret | VDI |
| X-axis travel 1th turret | 450 mm |
| Z-axis travel 1th turret | 5000 mm |
Basic information
| Code | 538766 |
| Level of machine tool |
standard
|
| Brand | Cmt |
| Model | CMT TCH 700 |
| Construction year | 2003 |
Dimensions and weight
| Weight | 8000 Kg |
