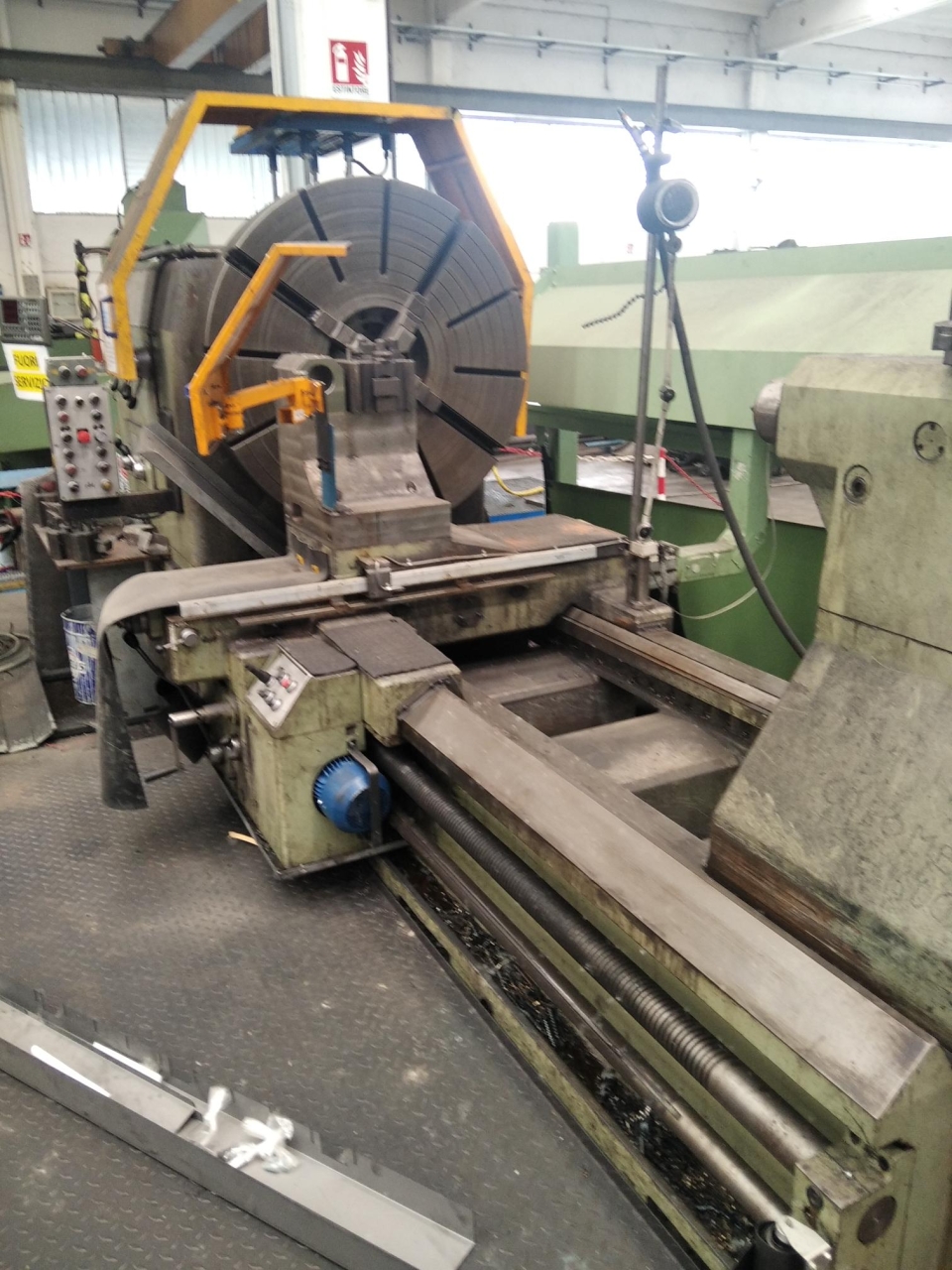

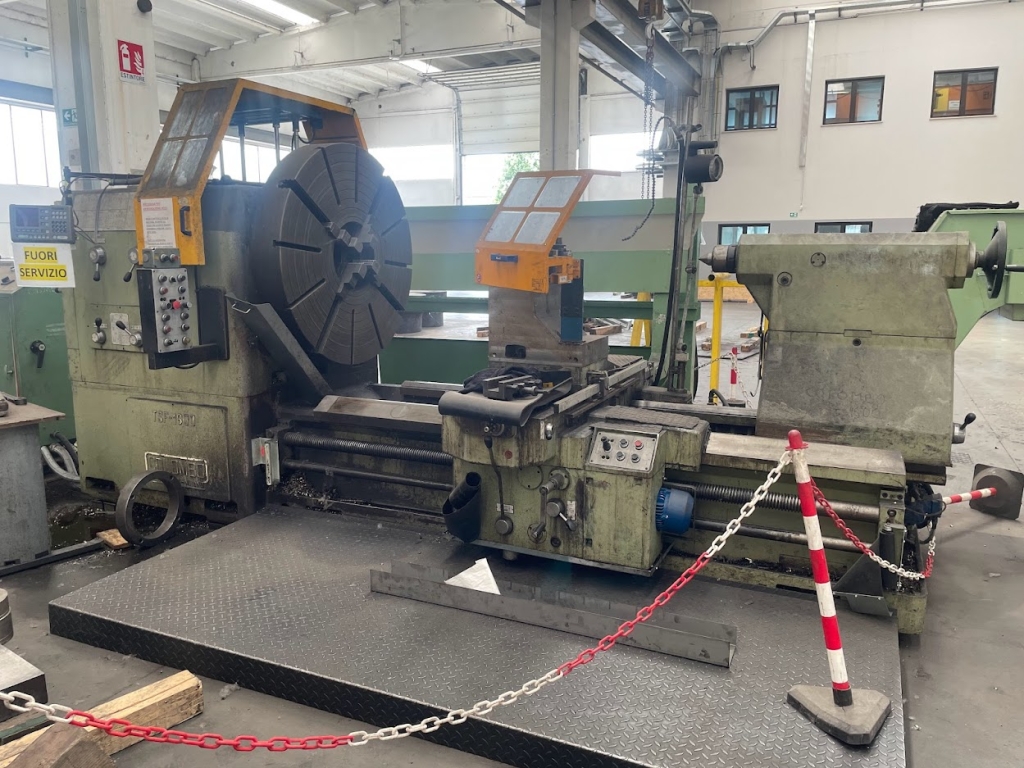

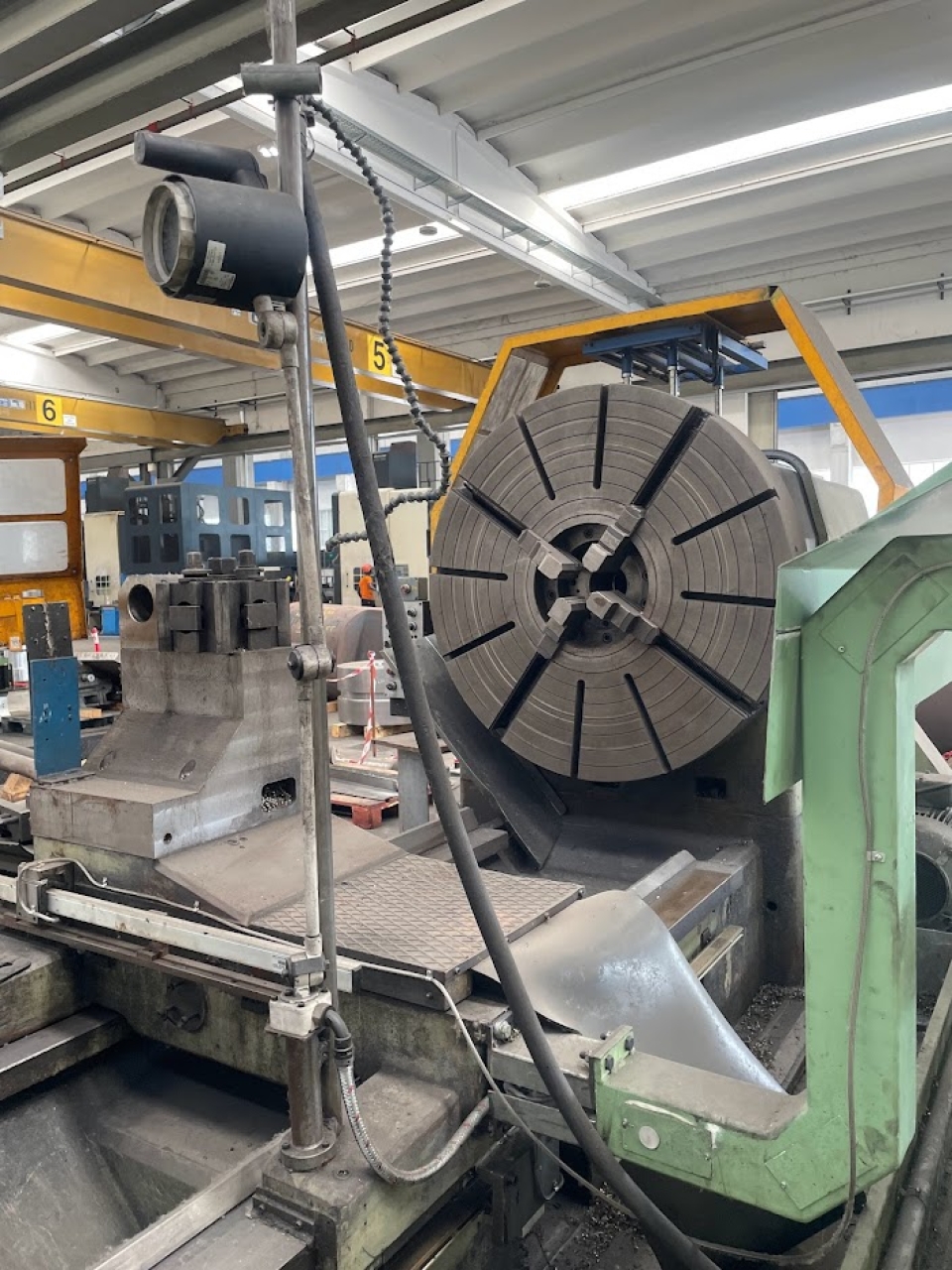

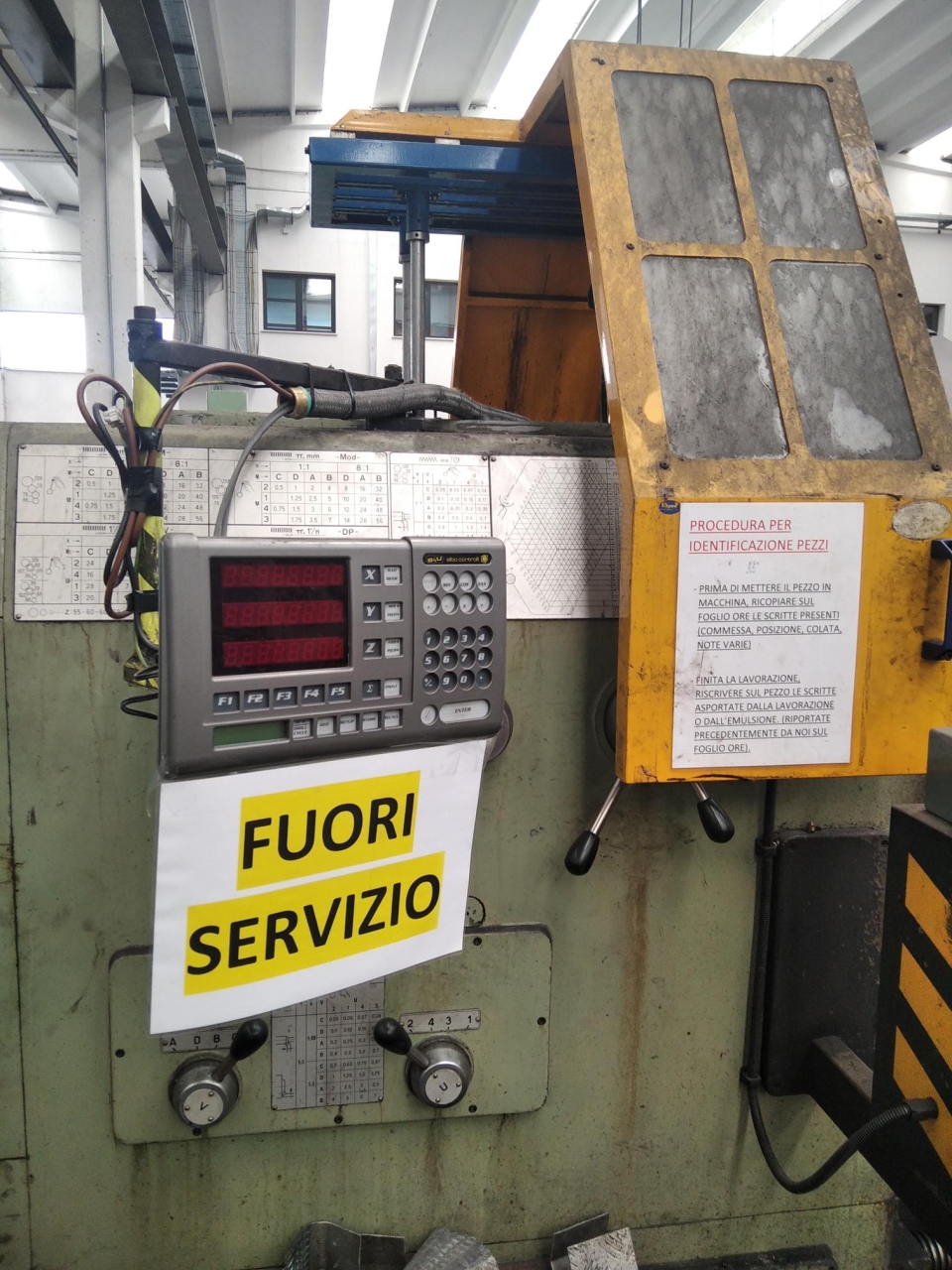

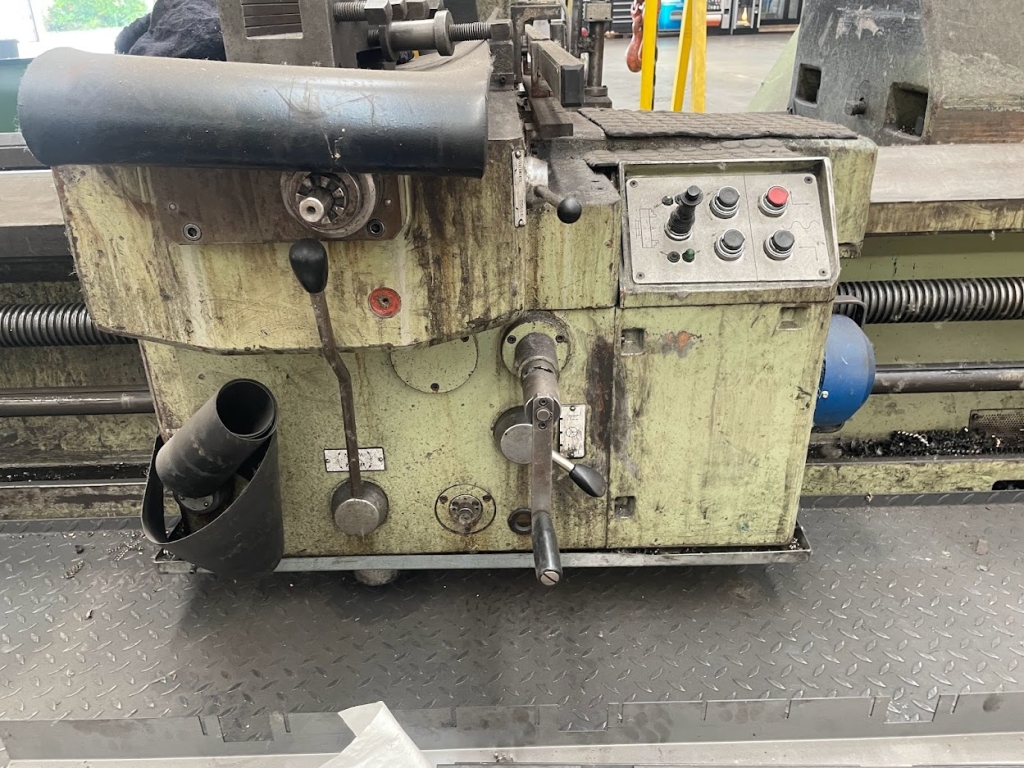

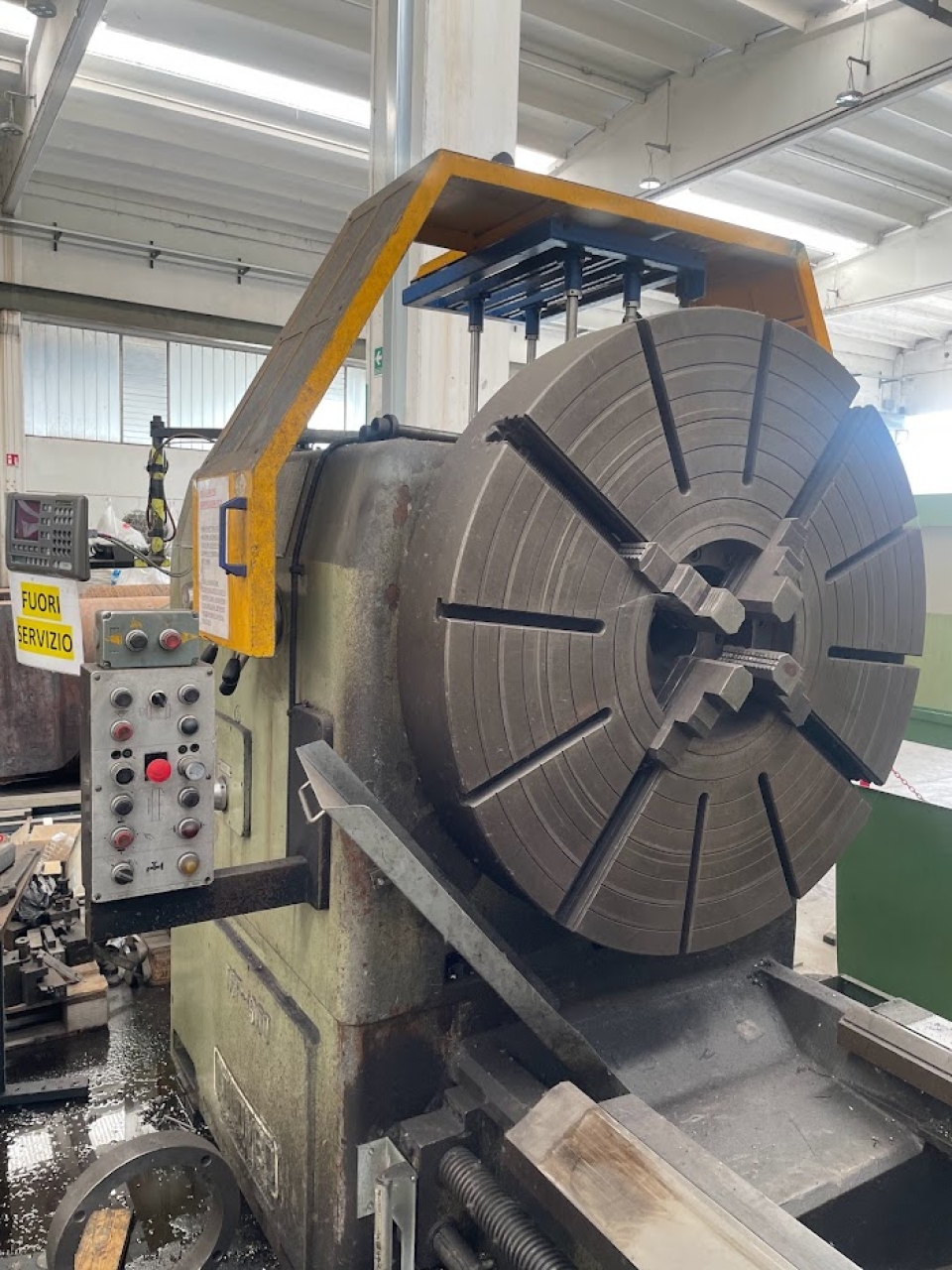

Tornio Parallelo Colombo TSF 1600
Technical specifications
| Manual machine | yes |
| Power spindle | 22 Kw |
| hight of centres | 800 mm |
| max turning diameter | 1600 mm |
| max turning diameter over cross slide | 1100 mm |
| Max turning lenght | 2000 mm |
| RPM | 290 |
| Bar diameter | 120 mm |
| Gear box | yes |
| Weight between centers | 10000 Kg |
| Turret | Manual |
| Number of turrets | 1 |
| Number of fixed toolholders in 1th turret | 3 |
| Tailstock | yes |
| Quill tailstock travel | 300 mm |

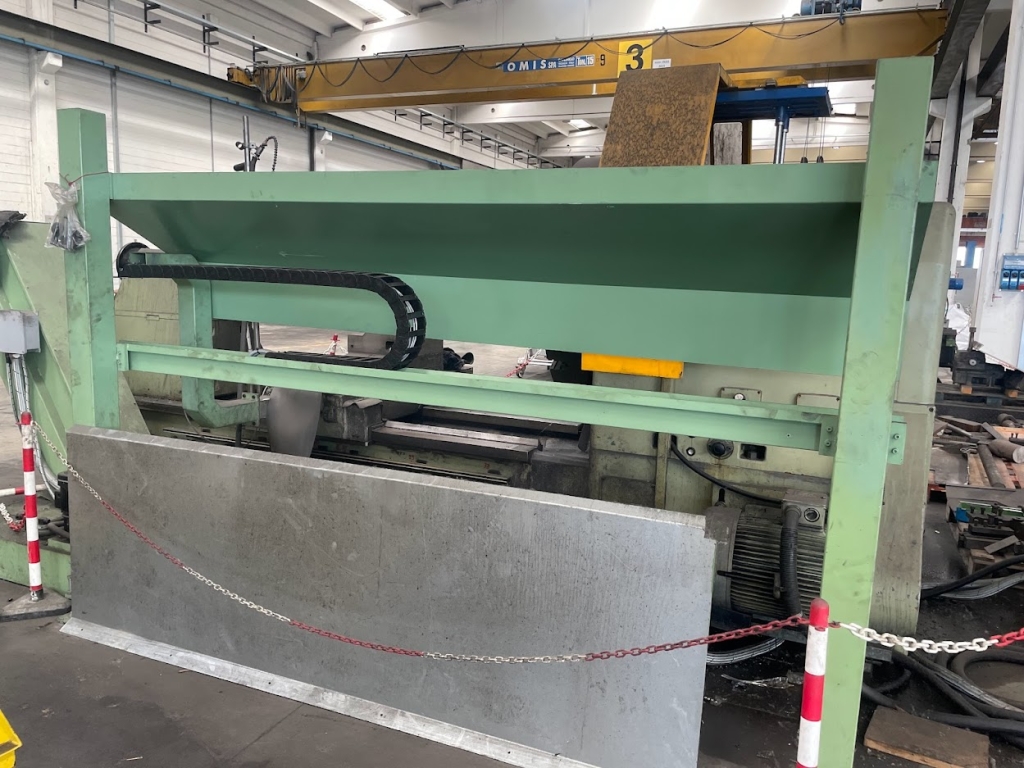

| Cheap conveyor | Hinged Belt |
Basic information
| Code | 4B2AE0 |
| Level of machine tool |
standard
|
| Brand | Colombo |
| Model | TSF 1600 |
| Construction year | 1999 |
Complete data sheet
Anno di costruzione da confermareDimensions and weight
| Weight | 11500 Kg |
