Tornio Mcm ATL 420 X 3000
Technical specifications
| CNC Model | Fagor |
| CNC version | 8060 |
| Nose spindle | ASA 11 |
| Power spindle | 33 Kw |

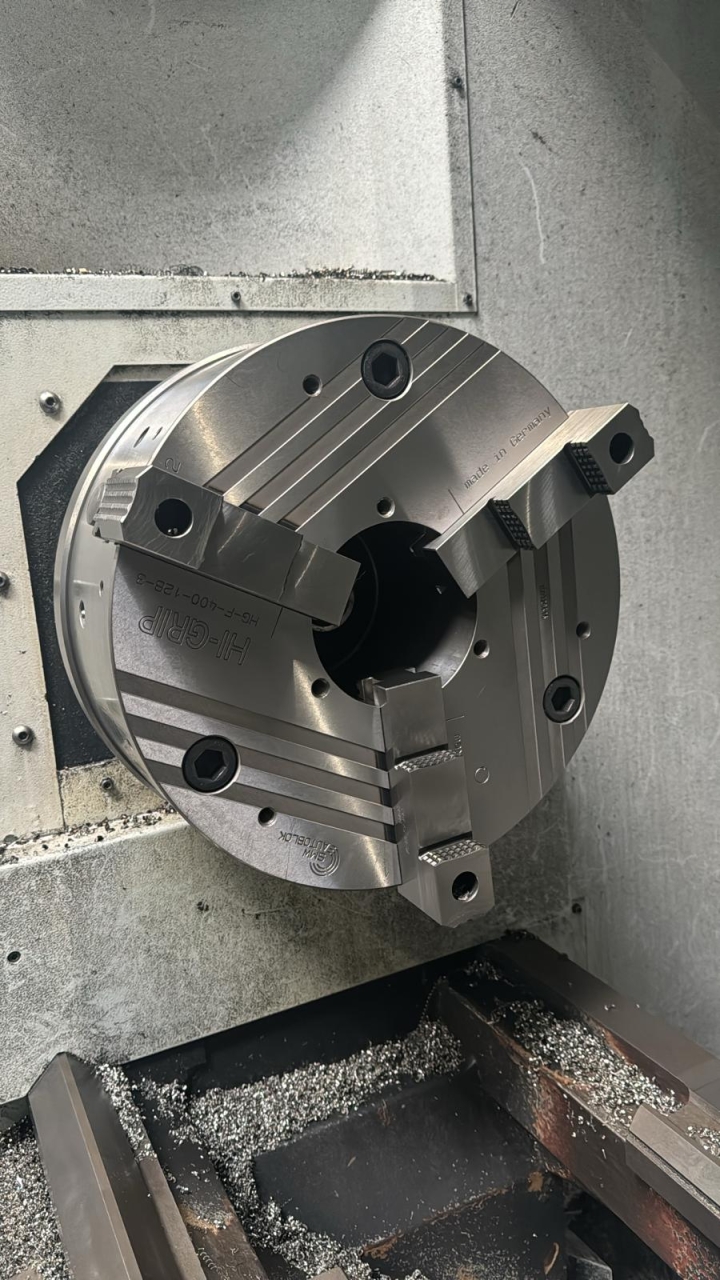

| Spindle chuck diameter | 400 mm |
| hight of centres | 420 mm |
| max turning diameter | 840 mm |
| max turning diameter over cross slide | 540 mm |
| Max turning lenght | 3000 mm |
| RPM | 1500 |
| Bar diameter | 135 mm |
| Weight between centers | 3000 Kg |

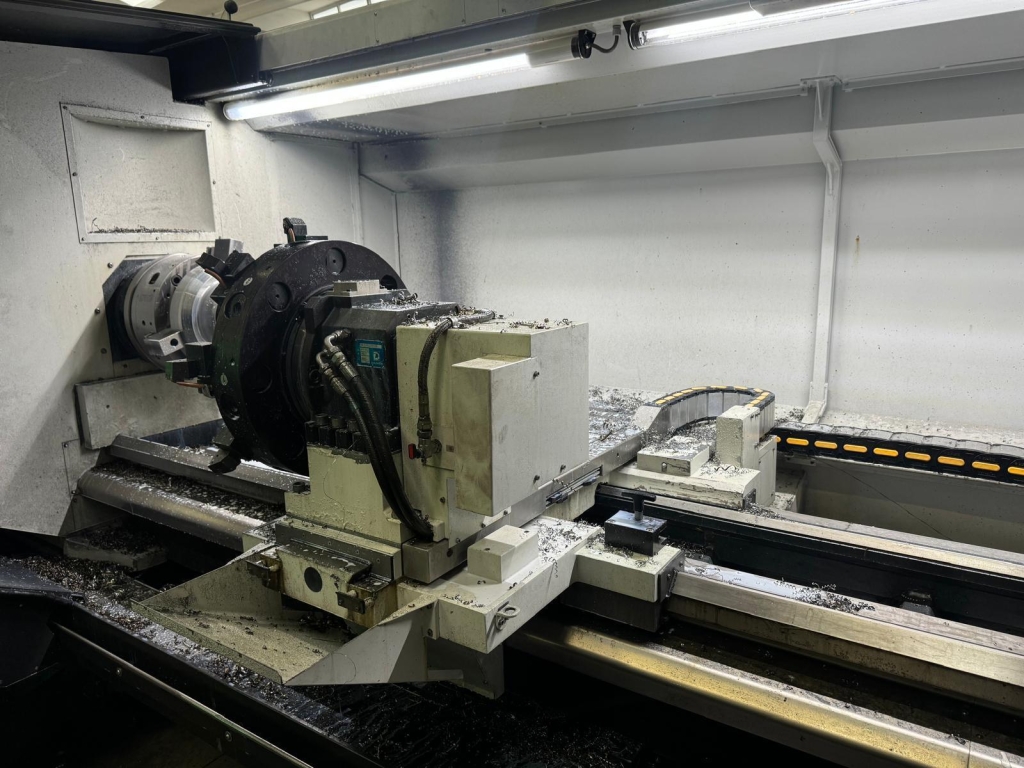

| Turret | Automatic |
| Number of turrets | 1 |
| Number tool posts on the 1th turret | 8 |
| Number of fixed toolholders in 1th turret | 8 |
| Tool holder type 1th turret | VDI 50 |
| X-axis travel 1th turret | 430 mm |
| Z-axis travel 1th turret | 3000 mm |
| Rapid linear axis feeds X Y Z | 10 m/min |
| Tailstock | yes |
| Quill tailstock travel | 220 mm |

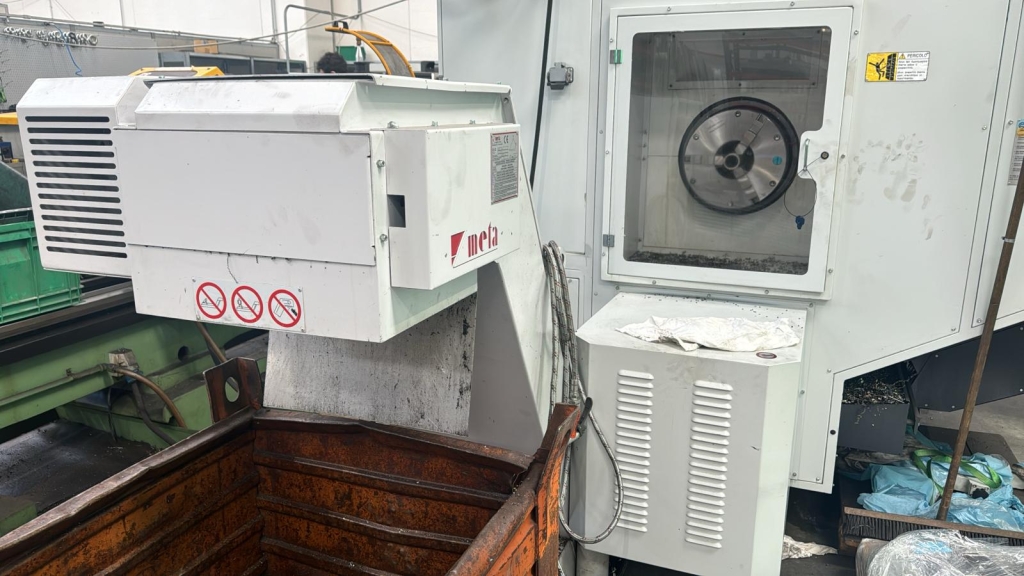

| Cheap conveyor | Hinged Belt |
Basic information
| Code | 17E2D1 |
| Level of machine tool |
standard
|
| Brand | Mcm |
| Model | Tornio Mcm ATL 420 X 3000 |
| Construction year | 2019 |
Complete data sheet

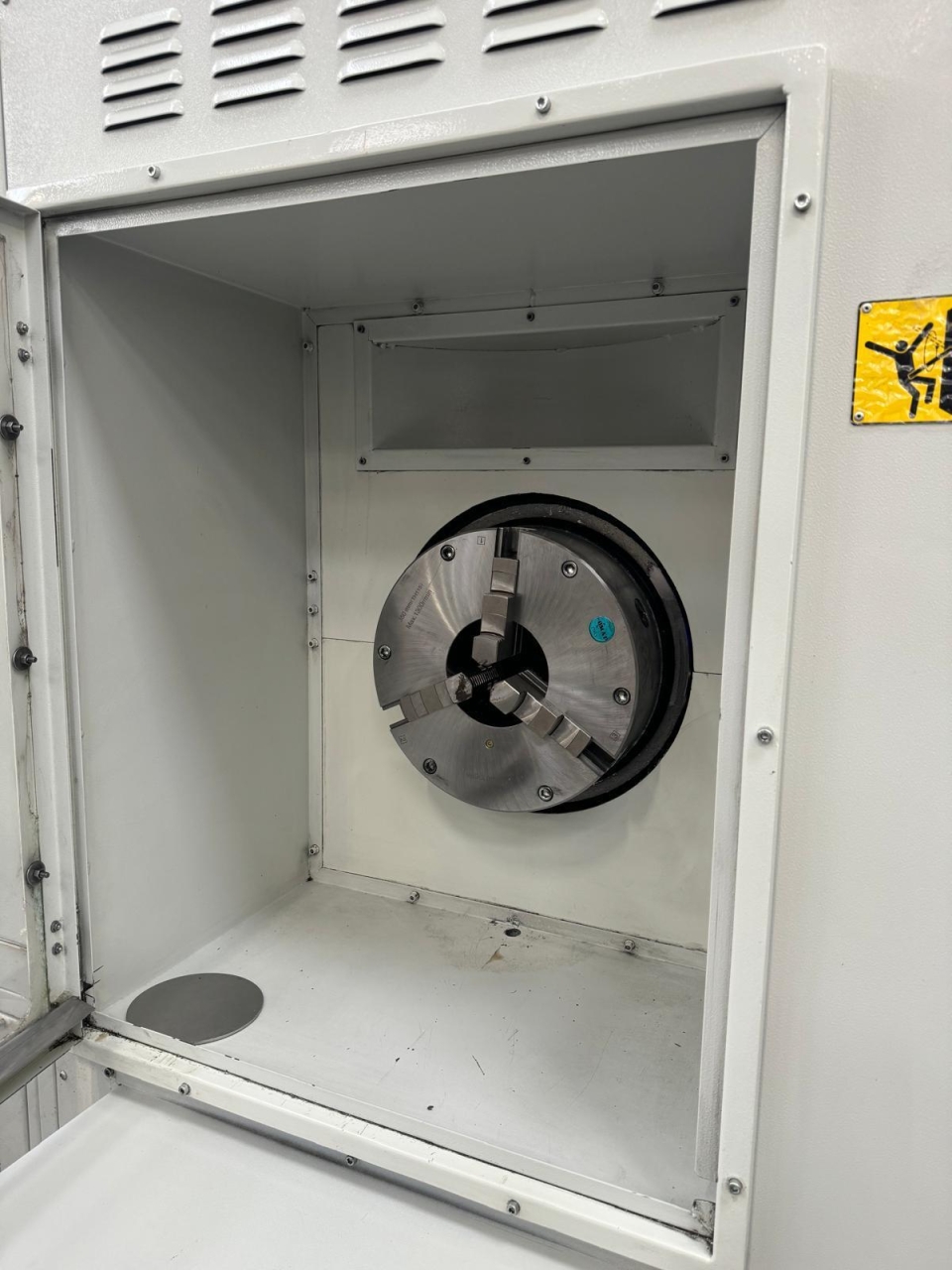

La macchina ha un secondo autocentrante posteriore per la doppia presaMachine equipment
ATTENZIONE : nella dotazione NON รจ incluso l'autocentrante principale diametro 400 mmDimensions and weight
| Weight | 9100 Kg |
